Chance C710242PX 125KV 200A STD CUTOUT

Product Description

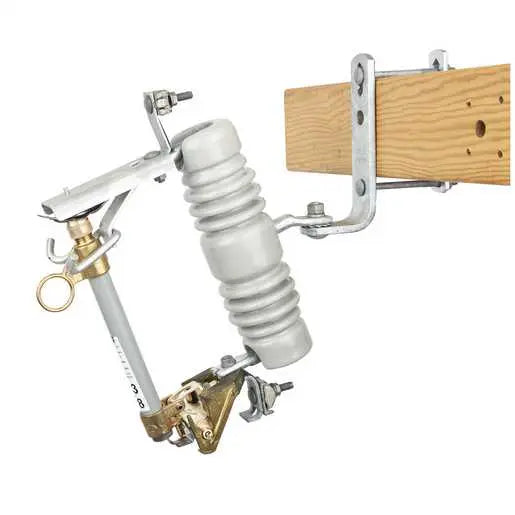

The Chance C710242PX represents a reliable porcelain cutout designed for electrical distribution systems. This unit features a maximum operating voltage of twenty-seven kilovolts and a current capacity of two hundred amperes. Built for durability, it includes a ten kAIC fuseholder and a parallel-groove connector. The cutout is equipped with an extended NEMA B crossarm bracket, ensuring a secure installation.

• Voltage Rating: Twenty-seven kV
• Current Rating: Two hundred A
• BIL Rating: One hundred twenty-five kV

Product Highlights

This cutout is suitable for protecting transformers and capacitors within your distribution systems. It complies with ANSI/IEEE standards and is interchangeable with ABB products.

Product Information

Standard Information

• Manufacturer: Chance
• Family Group: Utility Products

Technical Specifications

• Product Type: Standard Cutout Porcelain
• Weight: Twenty-seven point four lbs
• Creep and Leakage Distance: Twelve point six inches
• Fuse Link Current Range: One hundred forty A to two hundred A
• Reference Voltage Limit - Mini: Thru twenty-four point nine kV
• Description (Long): Twenty-seven kV; one hundred twenty-five kV BIL; Standard Type C Porcelain Cutout with a two hundred A; ten kAIC fuseholder
• Description (Marketing): Protect your distribution system or other items such as transformers and capacitors
