Chance C710112PX 15KV 110KV CUTOUT

Product Description

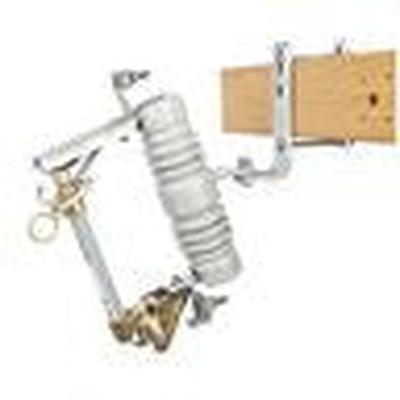

The Chance C710112PX is a standard type porcelain cutout designed for use in electrical distribution systems. This cutout operates at a voltage rating of fifteen kilovolts with a one hundred ampere current rating, making it suitable for utility applications.

• Voltage Rating: 15 kV
• Current Rating: 100 A
• Material: Porcelain

Product Highlights

The 15kV standard type cutout features a 110 kV Basic Insulation Level (BIL) which ensures durability and reliability. It includes a parallel-groove connector that accommodates various conductor sizes and an extended NEMA B crossarm bracket for easy installation.

Product Information

Standard Information

• Manufacturer: Chance
• Family Group: Utility Products

Technical Specifications

• Type: Cutout
• Phase: 1
• Weight: 19 lbs
• Size: 14.880 in x 14.500 in x 4.130 in
• Fuse Type: Extended
• Voltage - Maximum: 15 kV
• Connection: Parallel-groove clamp (NO.6 solid thru 4/0 ACSR)
• Application: Distribution
