Chance BP3R2B SW; BP3 27KV 125B

Product Description

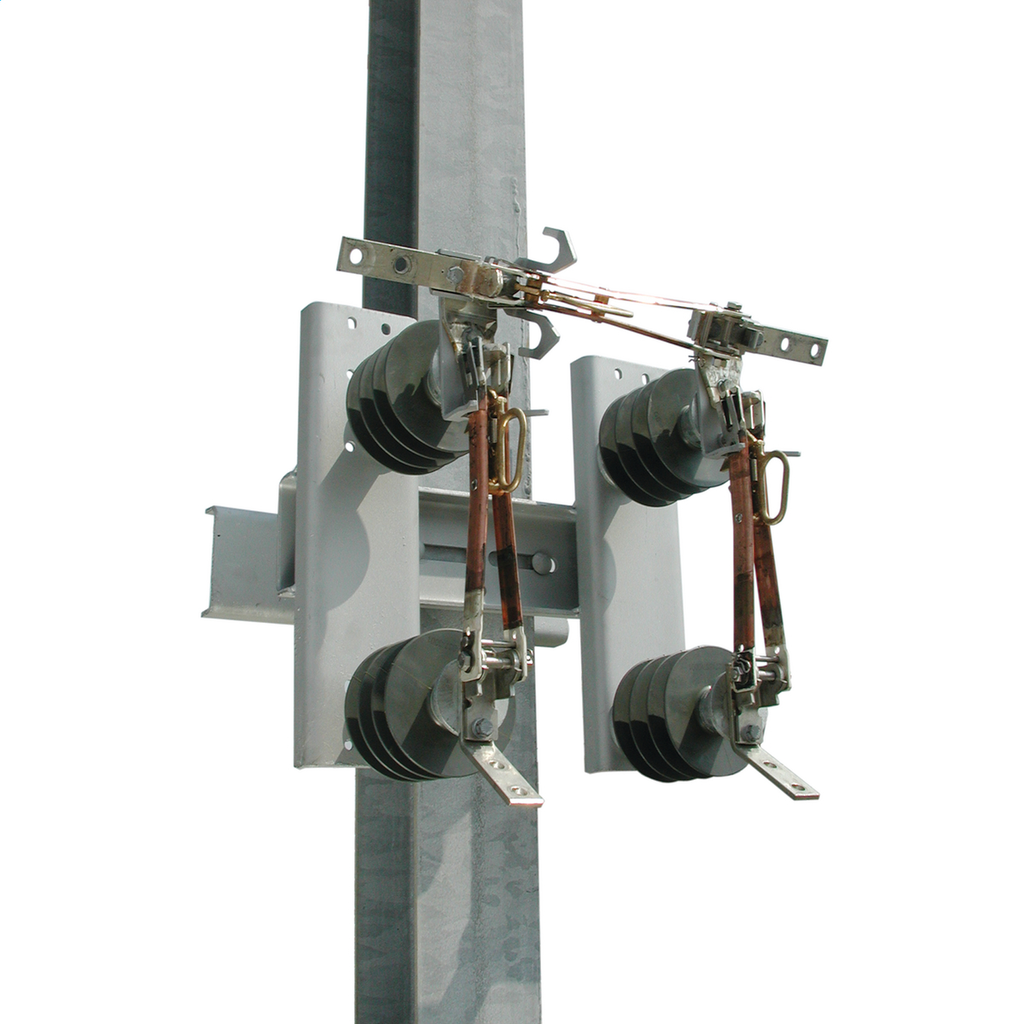

The Chance BP3R2B is a righthand opening, 25kV, 125kV LIW 600A bypass switch designed for utility applications. This switch is built with a backstrap for enhanced functionality. It is suitable for various utility installations where reliable performance is essential.

• Rated for 25kV and 125kV applications
• Constructed from solid copper with a galvanized steel base
• Meets all applicable ANSI/IEEE standards

Product Highlights

This bypass switch is essential for ensuring safe and efficient operations in electrical distribution systems.

Product Information

Standard Information

• Manufacturer: Chance
• Vendor: 182500

Technical Specifications

• Voltage - Maximum: 29 kV
• Weight: 108 lbs
• Size: 29.250 in x 29.250 in x 22.375 in
• Blade Type: Solid Copper (two blade truss-member)
• Material - Base: Galvanized Steel per ASTM A153
• Creep and Leakage Distance: 21.9 in (556.3 mm)
• Arc Distance - Dry: 8.1 in (205.7 mm)
• Current Overload - 8hr Emergency: 1080 A
