Chance AR114FSCLP Switch; AR Horiz 2

Product Description

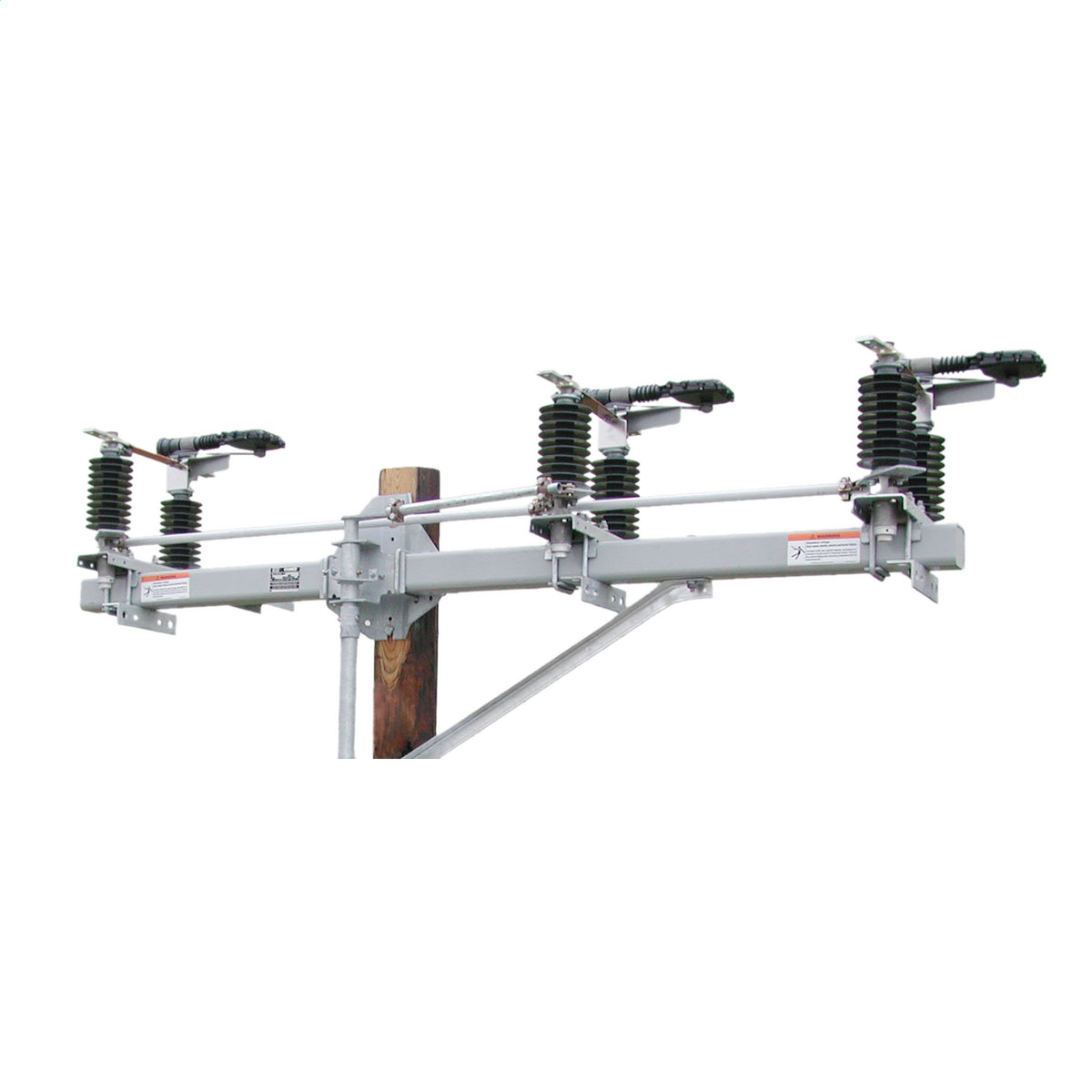

The Chance AR114FSCLP is a three-phase gang operated loadbreak switch designed for utility applications. It offers a voltage rating of 25kV and a low insulation voltage rating of 150kV. This switch is ideal for horizontal installations and has a current rating of 900A, making it suitable for various operational requirements.

• Voltage rating: 25kV
• Rated for 900A with a robust construction
• Horizontal orientation for versatile installation

Product Highlights

The AR114FSCLP switch is engineered for reliable performance in the field. It is equipped with features that meet applicable ANSI/IEEE standards, ensuring durability and safety.

Product Information

Standard Information

• Brand: Chance
• Manufacturer: Hubbell Power Systems

Technical Specifications

• Weight: 500 lbs
• Material - Base: Galvanized Steel per ASTM A153
• Current - Under Loop Switching: 600 A
• Current - Under Magnetizing Switching: 2,500 KVA
• Withstand Current - Short Time: 25kA, symmetrical
• Creep and Leakage Distance: 28.2 inches
• Torsional Strength: 3,000 in lbs (339 N-M)
• Temperature Rise - Max. at 600A: 30.9°C
• Temperature Rise - Max. at 900A: 47.5°C
