CHANCE AR114FFLST 25KV HOR LDBRK OH SW

Product Description

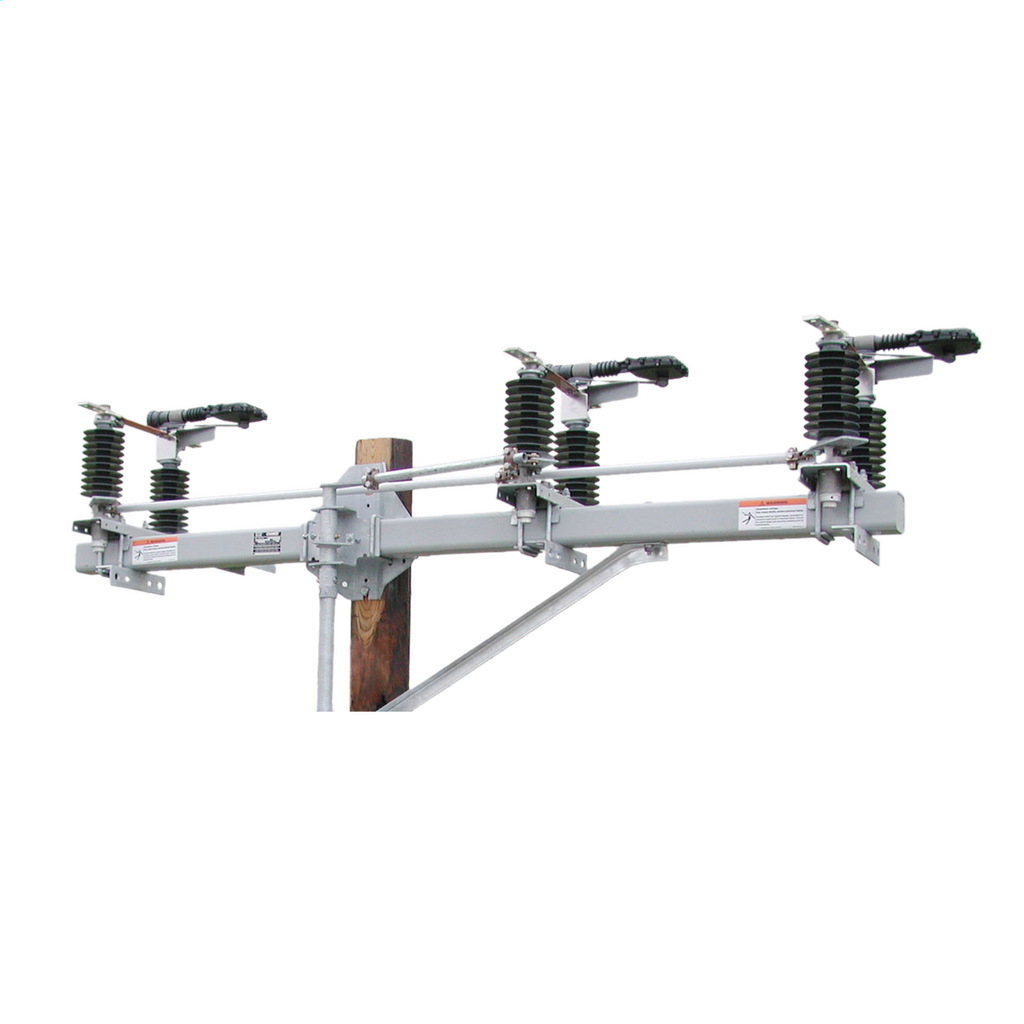

The Chance AR114FFLST is a 25KV horizontal load break switch designed for overhead applications. It is a three-phase gang-operated device capable of handling up to 900A and 150kV lightning impulse withstand voltage. Its robust construction ensures reliable performance in utility settings.

• Rated for 25kV with a capacity of 900A
• Utilizes fiberglass for high strength and durability
• Complies with all applicable ANSI/IEEE standards

Product Highlights

This load break switch features a horizontal design which allows for efficient operation in overhead configurations.

Product Information

Standard Information

• Brand: Chance
• Manufacturer: Chance

Technical Specifications

• Voltage Rating: 25kV
• Fault Current: 20kA, asymmetrical
• Withstand Current: 25kA, symmetrical
• Temperature Rise Max: 30.9°C at 600A, 47.5°C at 900A
• Material - Base: Galvanized Steel per ASTM A153
• Creep and Leakage Distance: 28.2 inches (716.3mm)
• Crossarm Brace Type: Fiberglass (4 x 4 Foam-Filled)
• Terminal Connectors: 6 - ATC1343, #2 - 500kcmil with galvanized hardware
