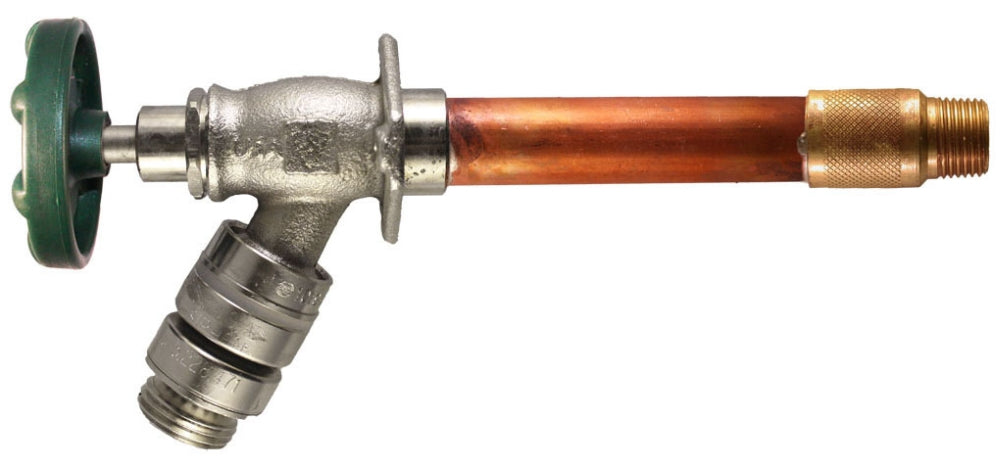

Champion-Arrowhead 486-10LF 1/2 x 3/4 MPT/Soldered x HT Wall Hydrant

Product Description

The Champion-Arrowhead model 486-10LF is a wall hydrant designed for outdoor use. It connects through a male threaded or soldered fitting and provides reliable access to water. This hydrant is suitable for various plumbing applications and supports a pressure rating of one hundred twenty-five PSI. It is constructed from lead-free bronze alloy for durability.

• Nominal size of one half inch by three fourths inch
• Self-draining feature to prevent freeze damage
• Anti-siphon protection included

Product Highlights

This wall hydrant has an oval wheel handle for easy operation. It is designed to be frostproof and heavy-duty, ensuring lasting performance through cold weather. The unit includes a vacuum breaker and conforms to applicable standards such as ASSE, UPC, IAPMO, and NSF/ANSI 372.

Product Information

Standard Information

• Manufacturer: Champion-Arrowhead
• MPN: 486-10LF

Technical Specifications

• Body Material: Bronze Alloy
• Temperature Rating: 140 Deg F
• Flow Rate: 10 GPM at 50 PSI
• Length: 14 Inches
• Rough-In Size: 10 Inches
• Pressure Rating: 125 PSI
• Self-Draining: Yes
• End Connection: Male Threaded/Soldered x Hose Threaded
• Anti-Siphon Protected: Yes
