Champion-Arrowhead 486-08LF 1/2 x 3/4 MPT/Soldered x HT 8 Wall Thick Replacement MPN

Product Description

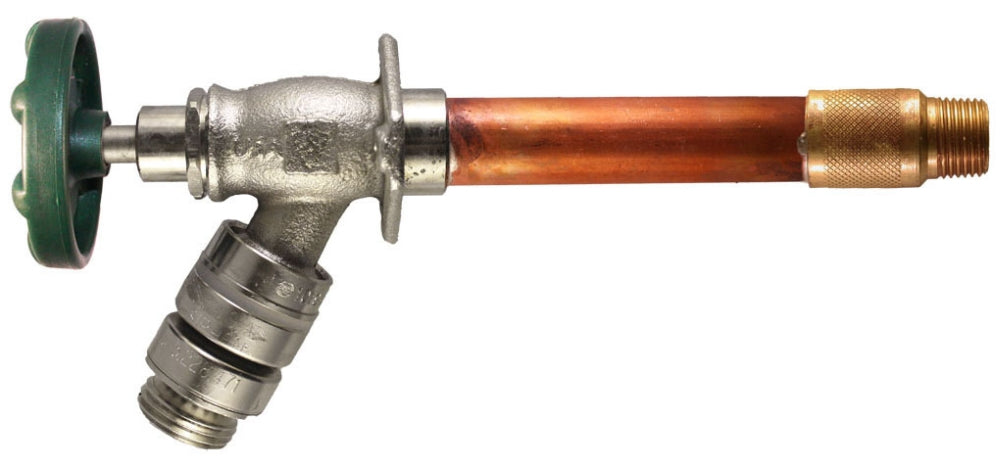

The Champion-Arrowhead Wall Hydrant, MPN 486-08LF, is designed for outdoor use. It features a robust build with a lead-free bronze alloy. This hydrant is frostproof, making it suitable for cold climates. The actuation type is an oval wheel handle, providing ease of operation.

• Lead-free bronze alloy construction
• Self-draining feature to prevent freeze damage
• Rated for a maximum pressure of 125 PSI

Product Highlights

This wall hydrant is anti-siphon protected and backflow protected, ensuring safe use in various plumbing applications. Its self-draining design enables it to drain when shut off, which helps avoid freezing and potential damage in cold temperatures.

Product Information

Standard Information

• Product Type: Wall Hydrant
• Nominal Size: 1/2 inch x 3/4 inch

Technical Specifications

• Body Material: Bronze Alloy
• Temperature Rating: 140 Deg F
• Pressure Rating: 125 PSI
• Rough-In Measurement: 8 inches
• Flow Rate: 10 GPM at 50 PSI
• Applicable Standards: ASSE, UPC, IAPMO, NSF/ANSI 372
• Inclusions: Vacuum Breaker, O-Ring Bonnet and Stem
• Backflow Protection: Yes
• Self Draining: Yes
