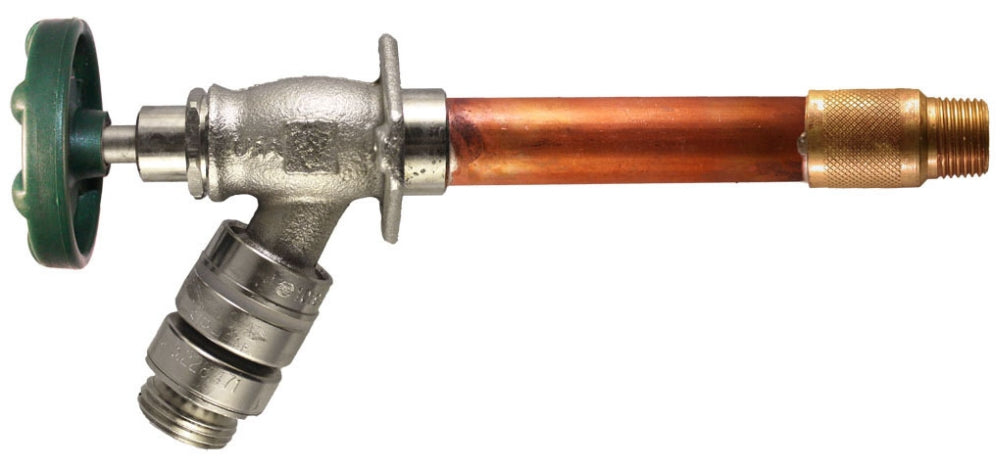

Champion-Arrowhead 486-04LF Wall Hydrant

Product Description

The Champion-Arrowhead Wall Hydrant, MPN 486-04LF, is designed for outdoor use to provide water access in various environments. This hydrant features a combination of soldered and threaded connections for easy installation and versatility. It is made from lead-free bronze alloy, ensuring safe use for potable water. With a frostproof design and self-draining feature, it prevents freezing and backflow.

• Self-draining vacuum breaker included for freeze protection.
• Constructed from lead-free bronze alloy.
• Anti-siphon and backflow protection features.

Product Highlights

This wall hydrant is built to withstand harsh conditions while providing reliable outdoor water access. The oval wheel handle allows for easy operation and control.

Product Information

Standard Information

• Manufacturer: Champion-Arrowhead
• Model Number: 486-04LF

Technical Specifications

• Nominal Size: 1/2 Inch x 3/4 Inch
• End Connection: Male Threaded/Soldered x Hose Threaded
• Pressure Rating: 125 PSI
• Temperature Rating: 140 Deg F
• Rough-In: 4 Inch
• Flow Rate: 10 GPM at 50 PSI
• Body Material: Bronze Alloy
• Standards Compliance: ASSE, UPC, IAPMO, NSF/ANSI 372
