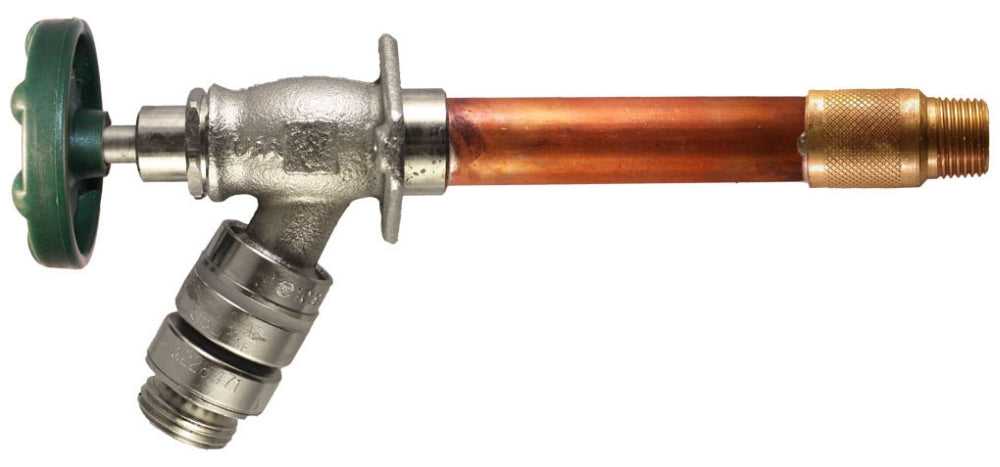

Champion-Arrowhead 486-02LF 1/2 x 3/4 MPT/Soldered x HT Wall Hydrant

Product Description

The Champion-Arrowhead 486-02LF is a wall hydrant designed for outdoor use. This hydrant features an anti-siphon design to prevent backflow and protect your water supply. It is constructed from lead-free bronze alloy and meets various safety standards including ASSE, UPC, and NSF/ANSI 372. This hydrant operates effectively in temperatures up to one hundred forty degrees Fahrenheit and has a pressure rating of one hundred twenty-five PSI.

• Nominal size of half inch x three-quarter inch
• Self-draining feature for freeze protection
• Oval wheel handle for easy operation

Product Highlights

This heavy-duty wall hydrant includes a vacuum breaker that prevents back pressure and allows for self-draining when shut off. This design feature helps to avoid freeze damage during colder months.

Product Information

Standard Information

• Manufacturer: Champion-Arrowhead
• UPC: 690043471051

Technical Specifications

• End Connection: Male Threaded/Soldered x Hose Threaded
• Rough-In: 2 inches
• Body Material: Bronze Alloy
• Temperature Rating: 140 degrees Fahrenheit
• Flow Rate: 10 GPM at 50 PSI
• Pressure Rating: 125 PSI
• Inclusions/Features: Vacuum Breaker, O-Ring Bonnet and Stem
• Self-Draining: Yes
• Anti-Siphon Protected: Yes
