Chamflex CH100060FM1000 Hose Swivel MNPT x Fixed MNPT 1 in x 60 in

Product Description

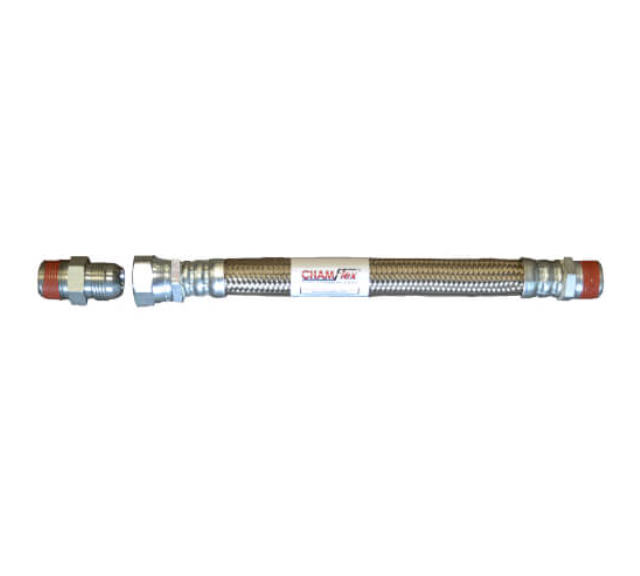

The CHAMFLEX CH100060FM1000 is a 1" X 60" stainless steel single hose assembly designed for hydronic heating and cooling systems. It features a fixed male pipe thread on one end and a swivel with male pipe adapter on the other end. This hose assembly has a 500 PSI working pressure and a 2000 PSI burst pressure and is suitable for water and glycol.

• Superior fire retardant hose assemblies
• Designed for hydronic heating and cooling systems
• Class A fire rated hose assembly

Product Highlights

This Class A fire-rated hose assembly minimizes kinking during installation and provides a long life of trouble-free service.

Product Information

Standard Information

• Brand: CHAMFLEX
• Manufacturer Part Number: CH100060FM1000

Technical Specifications

• Hose Type: Braided
• Nominal Size: 1 in
• Connection Type: Swivel MNPT x Fixed MNPT
• Outside Diameter: 1.245 in
• Length: 60 in
• Tube Material: Santoprene
• Cover Material: 302/304 Stainless Steel
• Fitting Material: Steel
• Fitting Finish: Plated
• Bend Radius: 5-1/2 in
• Pressure Rating: 500 psi
• Temperature High: 212 deg F
• Temperature Low: -40 deg F
• Additional Information: Male JIC Metal to Metal Seal Hose/Adapter Connection
