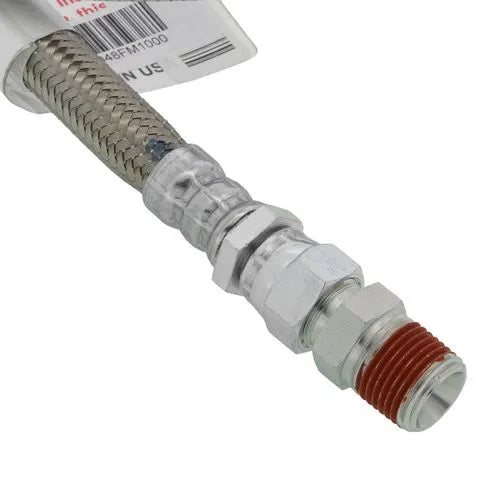

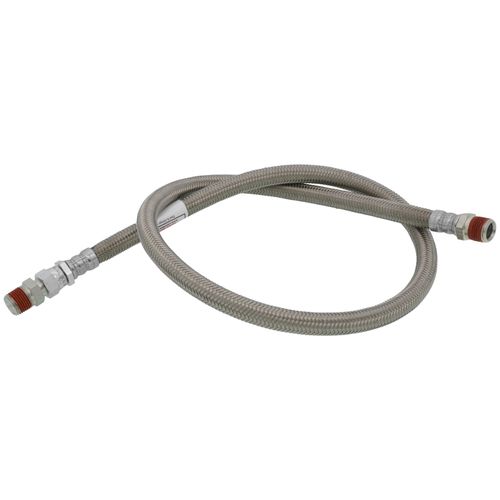

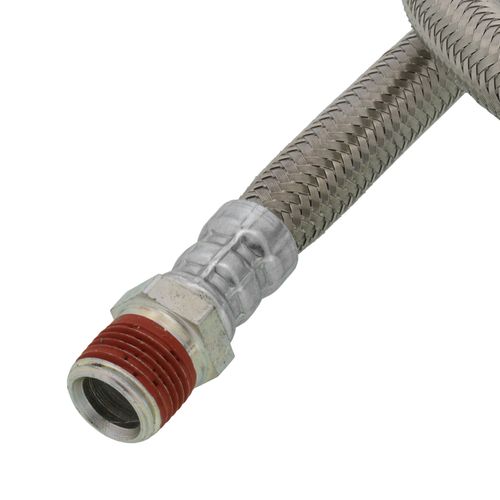

Chamflex CH050048FM1000 Hose Swivel MNPT x Fixed MNPT 1/2 inches x 48 inches

Product Description

The CHAMFLEX CH050048FM1000 is a 1/2" X 48" hose with a swivel MNPT x fixed MNPT connection. Designed for hydronic heating and cooling systems, this hose assembly is "Class A" fire rated. It features a patented process that bonds the inner tube to a stainless steel wire outer braid, minimizing kinking during installation. Compatible with water and glycol applications.

• 1/2" Size
• Stainless Steel Braided Material
• MNPT x MNPT Connection Type

Product Highlights

This Chamflex hose offers superior fire retardant properties and is designed for hydronic heating and cooling systems, ensuring a long life of trouble-free service.

Product Information

Standard Information

• Brand: CHAMFLEX
• Manufacturer Part Number: CH050048FM1000
• Country of Origin: UNITED STATES

Technical Specifications

• Size: 1/2"
• Material: Stainless Steel Braided
• Connection Type: MNPT x MNPT
• Length (Inches): 48"
• Hose Type: Braided
• Nominal Size: 1/2 in
• Outside Diameter: 0.7 in
• Length: 48 in
• Tube Material: Santoprene
• Cover Material: 302/304 Stainless Steel
• Fitting Material: Steel
• Fitting Finish: Plated
• Bend Radius: 2-1/2 in
• Pressure Rating: 400 psi
• Temperature High: 212 deg F
• Temperature Low: -40 deg F

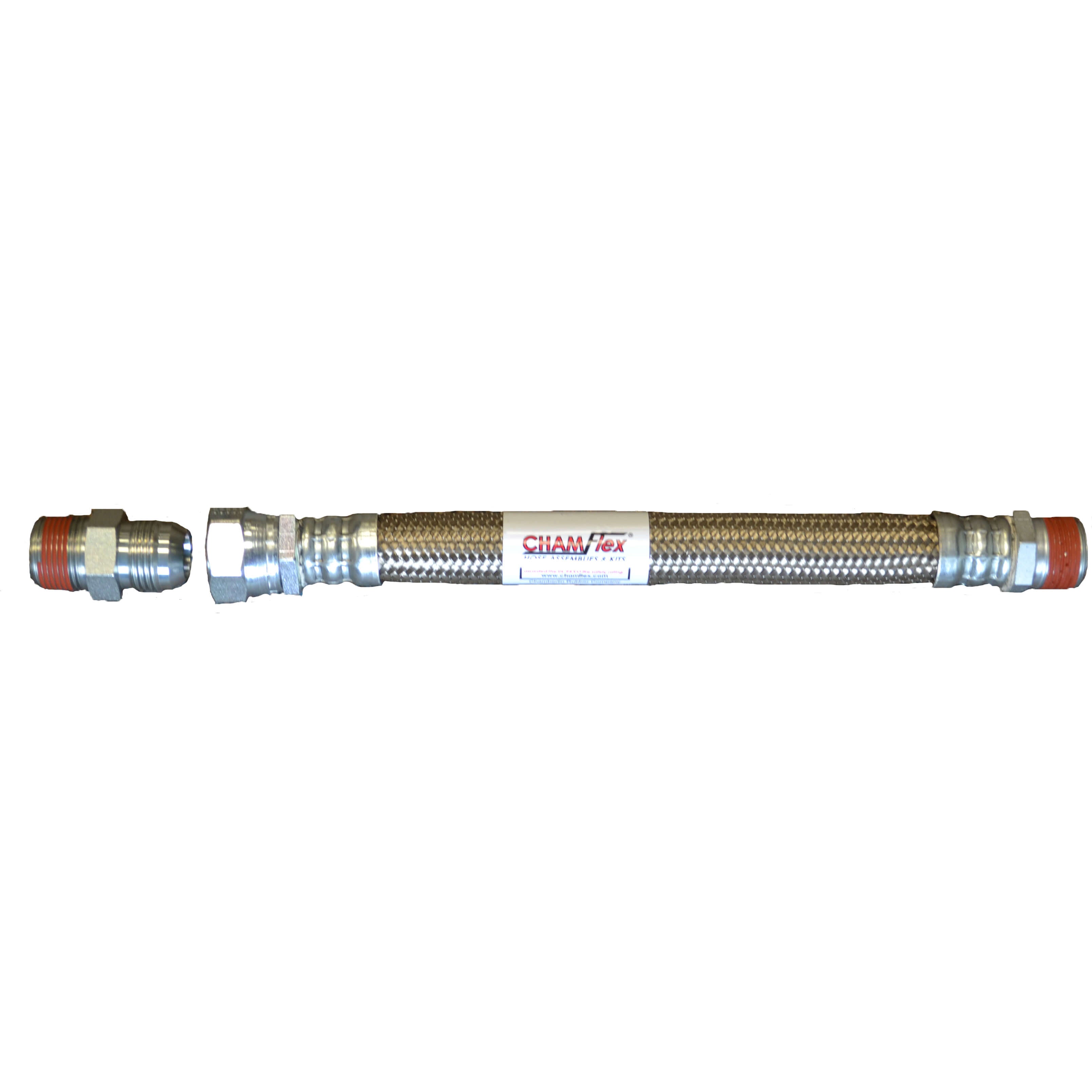

• Additional Information: Male JIC Metal to Metal Seal Hose/Adapter Connection
