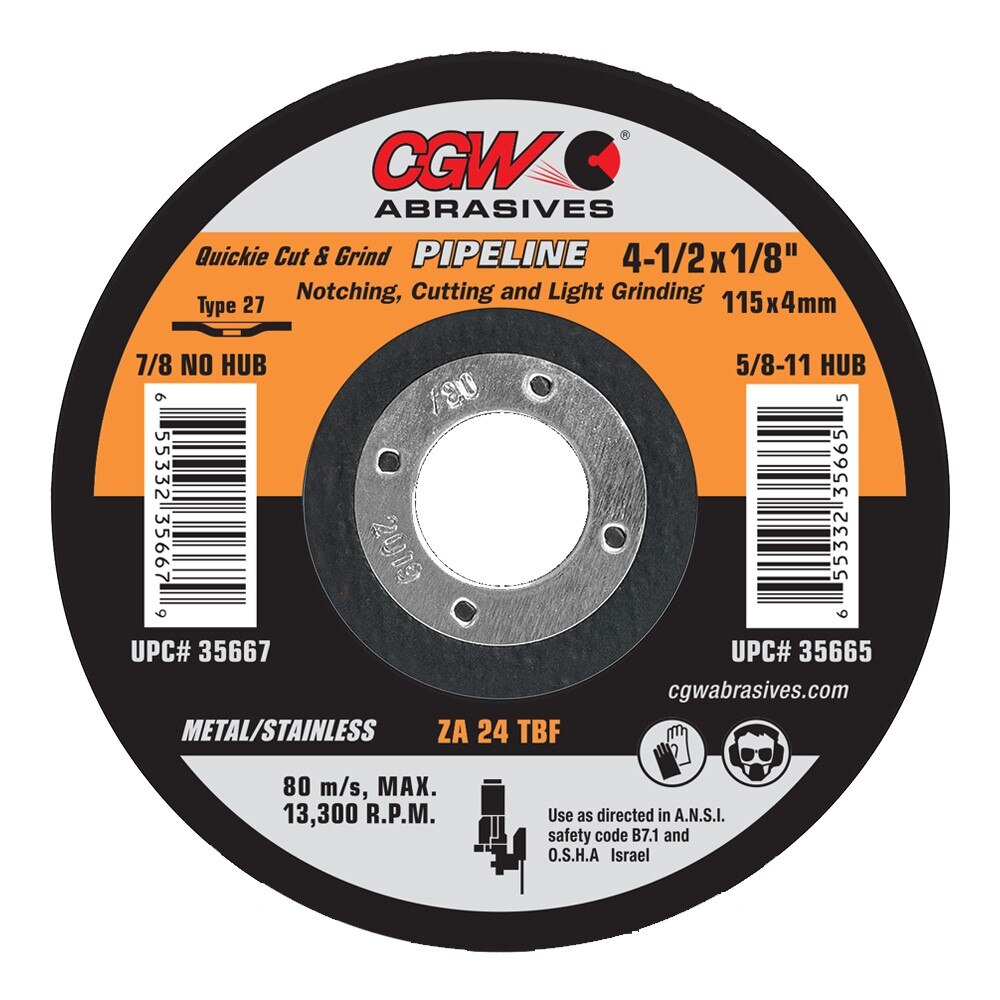

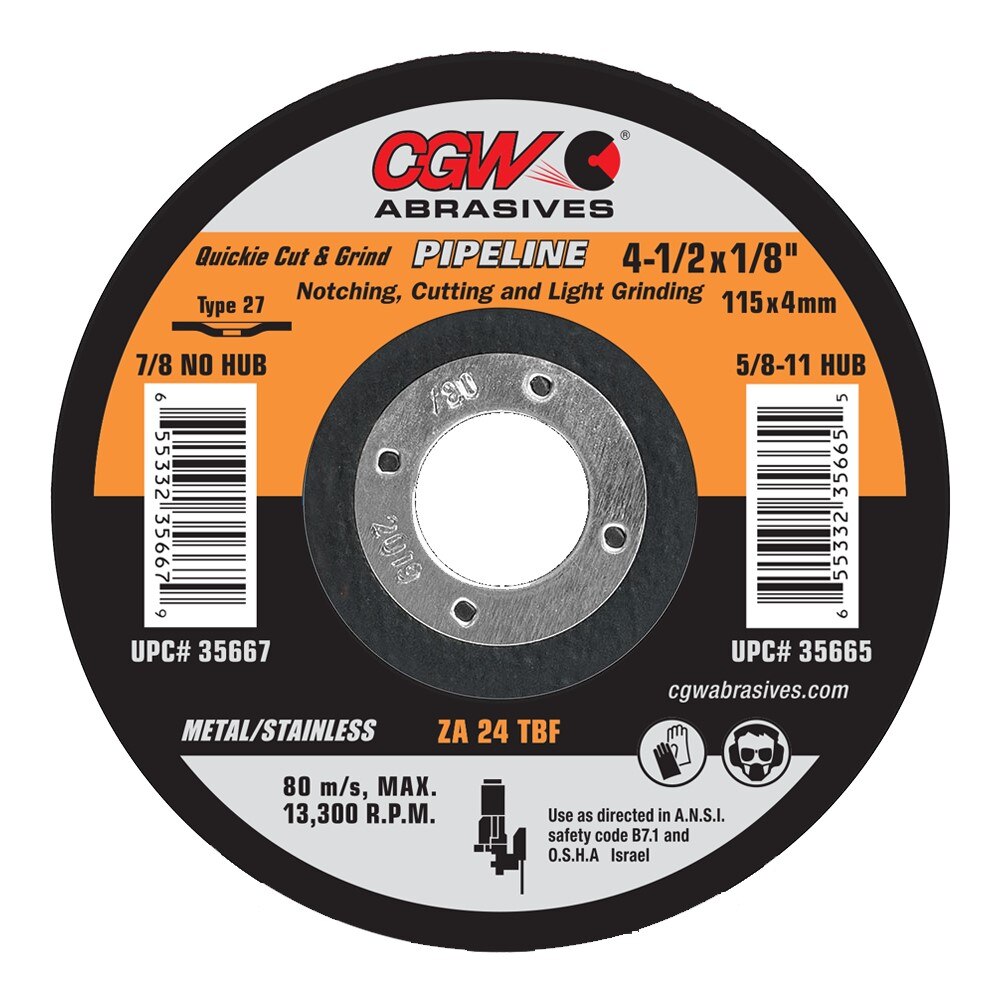

Cgw 35665 Type 27 Depressed Center Pipeline Wheel

Product Description

The CGW 35665 is a Type 27 depressed center grinding wheel designed for pipeline applications, including light grinding and root pass grinding and cutting operations. Built with a Zirconia Aluminum Oxide (ZA24T) grain and T-grade bond, these wheels deliver fast cutting action and extended working life on ferrous metals and stainless steel. Sold in a box of 10, the 35665 is a standard consumable for welders, pipefitters, and metalworkers who need consistent performance across a full shift of grinding or weld prep work.

These wheels are suited for pipeline welding preparation and light grinding tasks on both ferrous metals and stainless steel. The ZA24T grain formula combines zirconia aluminum oxide with a T-grade bond, producing a high-performance wheel optimized for fast material removal and durability. The Type 27 depressed center profile allows the wheel to reach into tight joints and along pipe seams, making it a practical choice for root pass cleanup and interpass grinding in both shop and field environments.

Key Features

• Type 27 depressed center profile for access to tight welds and pipe joints
• ZA24T grain: Zirconia Aluminum Oxide with T-grade bond for fast cutting and long service life
• Engineered for light grinding and root pass grinding on pipelines
• Performs on ferrous metals and stainless steel
• 1/8 inch thickness for controlled material removal
• Sold in a box of 10 for consistent job-site supply

Compatibility

Designed for use on standard angle grinders accepting Type 27 depressed center wheels. Suitable for pipeline grinding and weld prep applications on ferrous metals and stainless steel.

Installation Notes

These wheels are installed and changed by welders, pipefitters, and metalworkers using standard angle grinders. Always power down and disconnect the grinder before mounting or removing a wheel. Inspect each wheel for cracks or damage before use and confirm the grinder RPM rating meets or exceeds the wheel rating. Follow ANSI B7.1 safety standards for abrasive wheel handling and use appropriate PPE including face shield, gloves, and hearing protection.

Technical Specifications

• Wheel Type: Type 27 Depressed Center
• Grain: Zirconia Aluminum Oxide (ZA24T)
• Bond Grade: T-grade
• Thickness: 1/8 inches
• Application: Pipeline grinding and root pass cutting
• Weight: 0.401 pounds
• Sold As: Box of 10

Standard Information

• Brand: CGW
• Manufacturer Part Number: 35665
