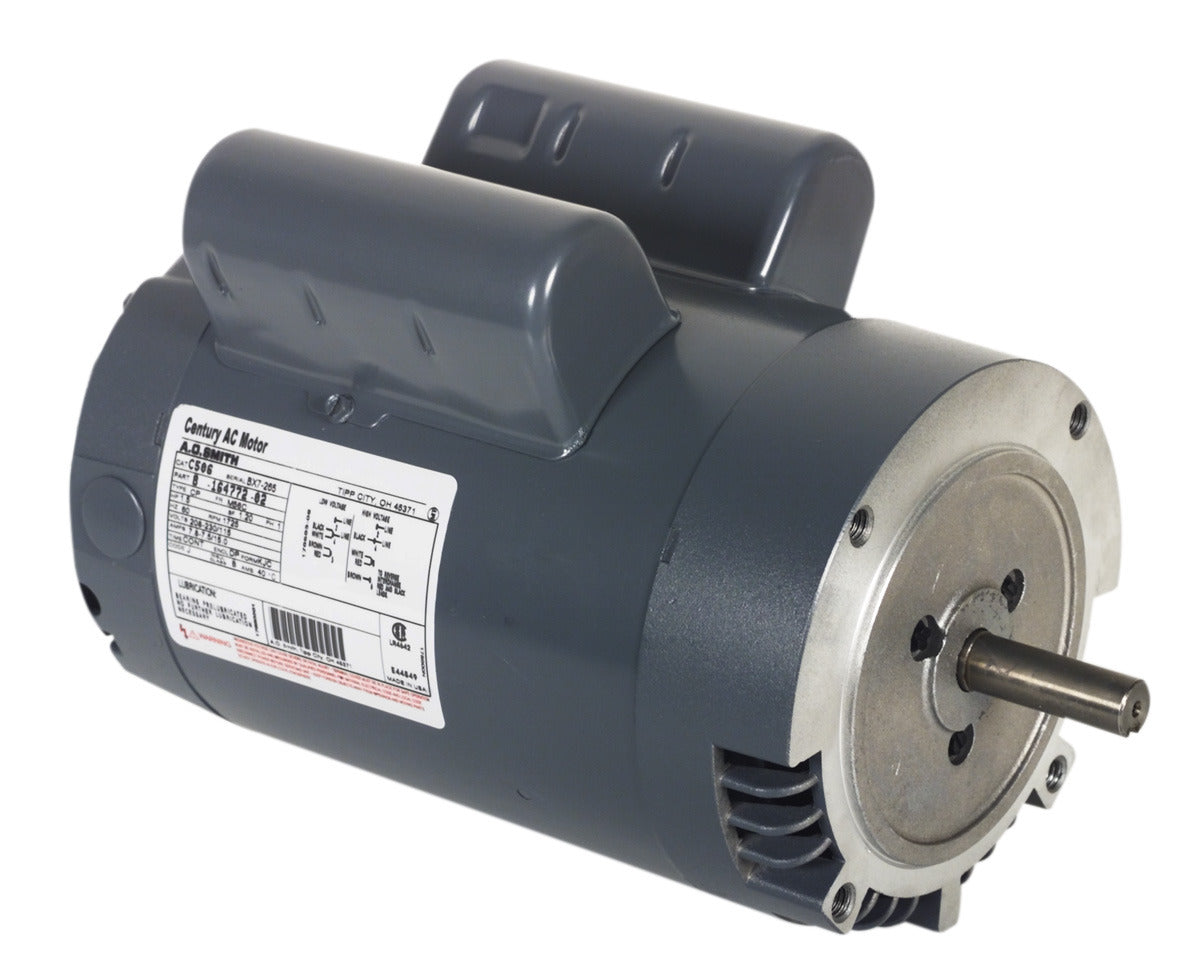

Century UV108 General Purpose Motor 2 HP 208-230/115

Product Description

The Century UV108 is a reliable general-purpose motor with two horsepower. This motor operates on a voltage of 208-230 volts or one hundred fifteen volts, making it suitable for various applications. It features a capacitor start and capacitor run electrical type with a speed of one thousand seven hundred forty-five RPM. The motor has a drip-proof enclosure designed for continuous duty in diverse environments.

• UL recognized component listing and CSA certification for safety
• Durable rolled steel construction
• Permanently lubricated bearings for extended life

Product Highlights

Designed for reliability and efficiency, this motor is suitable for both residential and commercial use.

Product Information

Standard Information

• Brand: Century
• MPN: UV108

Technical Specifications

• Horsepower: 2.0
• Voltage: 208-230/115
• RPM: 1745
• Frame Size: R145TC
• Phase: 1
• Amperage: 10.0-10.2/20.4
• Shaft Diameter: 0.875 inches
• Shaft Extension: 2.130 inches
