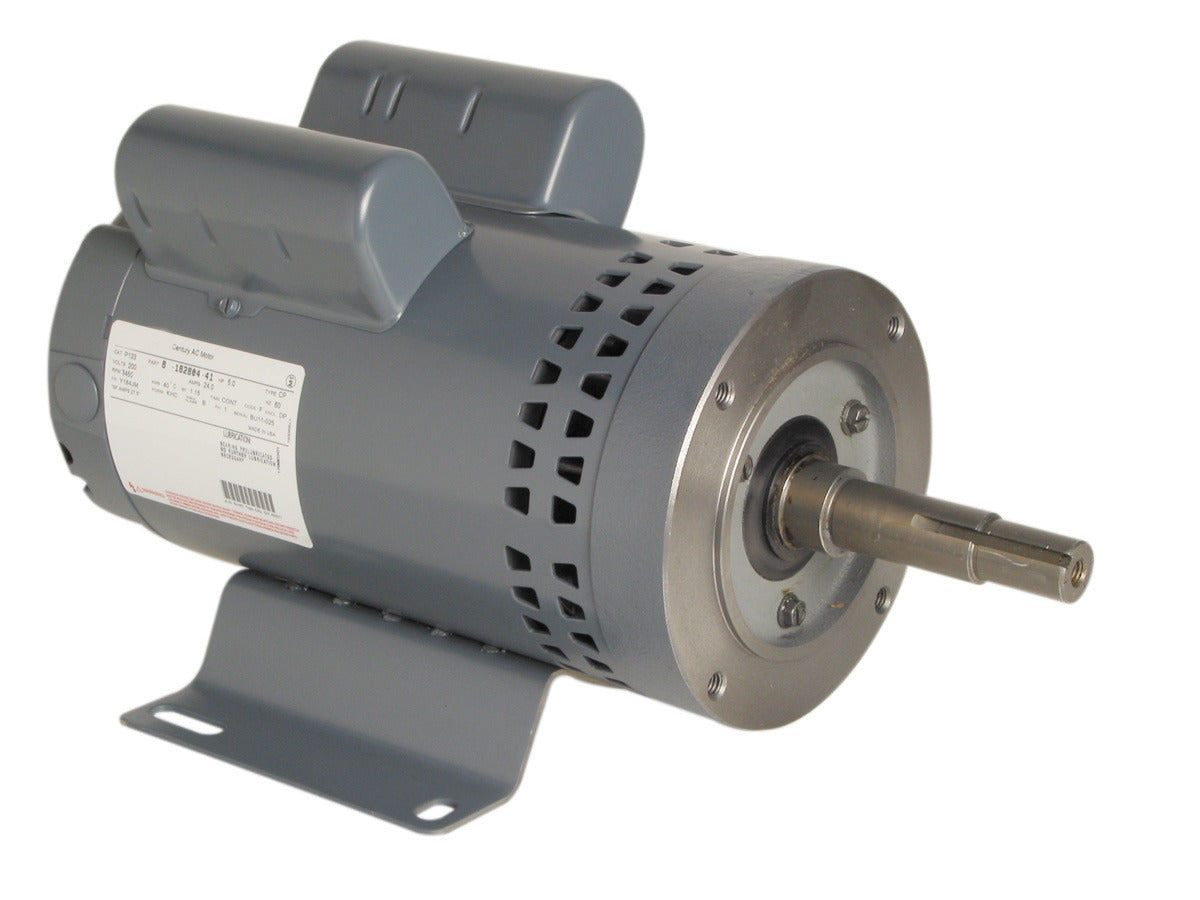

Century UP133 Close Coupled Pump Motor 5.0 HP (Single Phase) Replacement MPN

Product Description

The Century UP133 is a close coupled pump motor designed for efficient operation. This model includes features such as a one-phase electrical system and provides five horsepower. It is suitable for various applications needing reliable operation.

• Capacitor start and run for better efficiency
• Suitable for VFD with adjustable torque settings
• Drip-proof enclosure and solid construction for durability

Product Highlights

The Century UP133 remains effective across continuous use scenarios and is built with class F insulation to handle high temperature operations. The motor has a service factor of one point fifteen on sinewave and one on IGBT power, making it versatile for different motor control methods.

Product Information

Standard Information

• Electrical Type: Capacitor Start, Capacitor Run
• Power Rating: 5.0 HP

Technical Specifications

• Frame Size: Y184JM
• Voltage: 200 Volts
• Amperage: 24 Amps
• RPM: 3450
• Shaft Diameter: 0.875 inches
• Shaft Extension: 4.281 inches
• Weight: 72 lbs
• Dimensions: 19 inches x 12 inches x 10 inches
