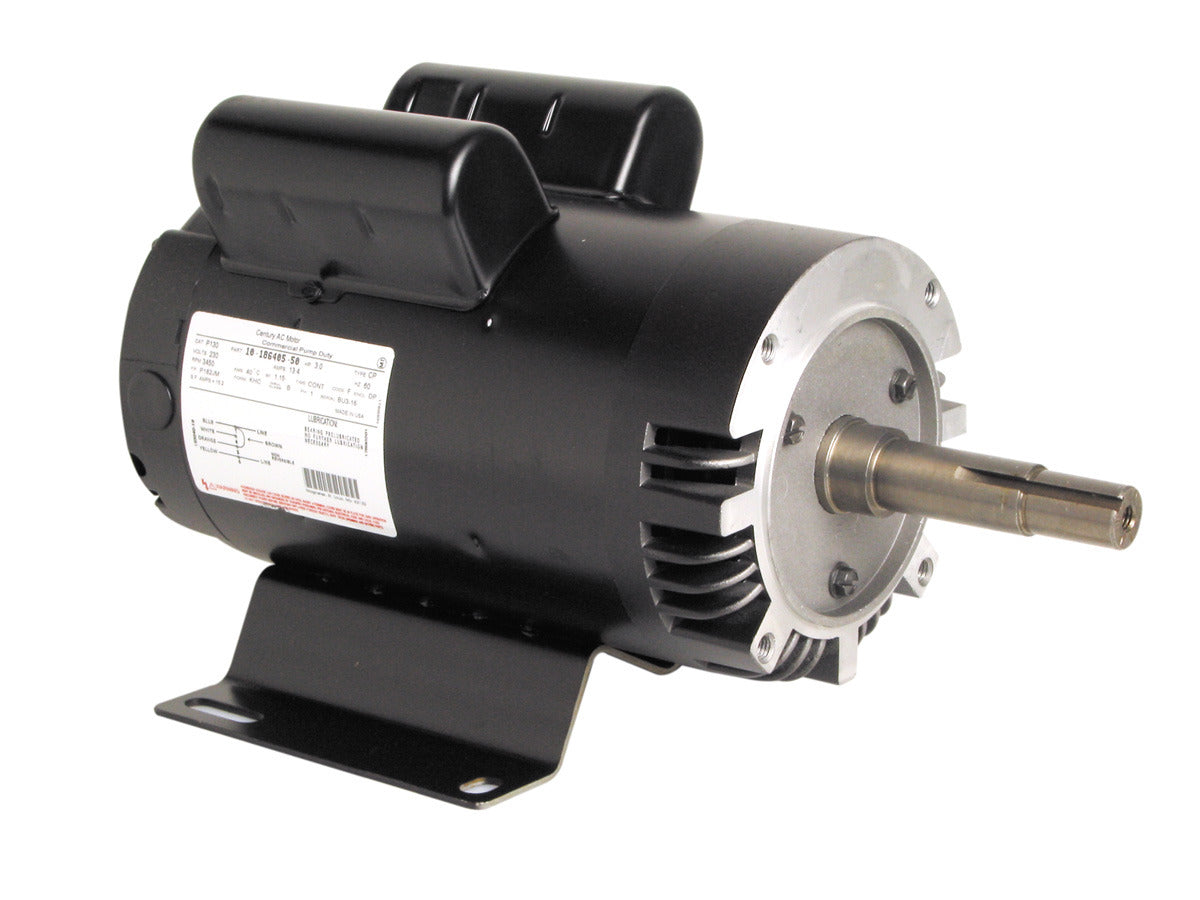

Century UP130 Close Coupled Pump Motor 3 HP 230V Replacement MPN

Product Description

The Century UP130 is a close coupled pump motor designed to provide reliable performance in various applications. This three horsepower motor operates on a single-phase power supply with a voltage of 230, making it suitable for both residential and commercial use. The motor features a frame size of P182JM and has a drip-proof enclosure, ensuring durability and protection in challenging environments.

• Powerful 3.0 HP output
• Clockwise rotation with a rated RPM of 3450
• Double sealed ball bearings for improved longevity

Product Highlights

Designed for continuous duty applications, the UP130 motor is ideal for use with variable frequency drives and supports a wide range of torque requirements. The Class F insulation helps maintain operational efficiency under high temperatures, while the mechanical locking of the bearings secures them against wear.

Product Information

Standard Information

• Brand: Century
• MPN: UP130

Technical Specifications

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Horsepower: 3
• Voltage: 230
• Amperage: 13.4
• Frame: P182JM
• Height: 10 inches
• Width: 12 inches
• Length: 19 inches
