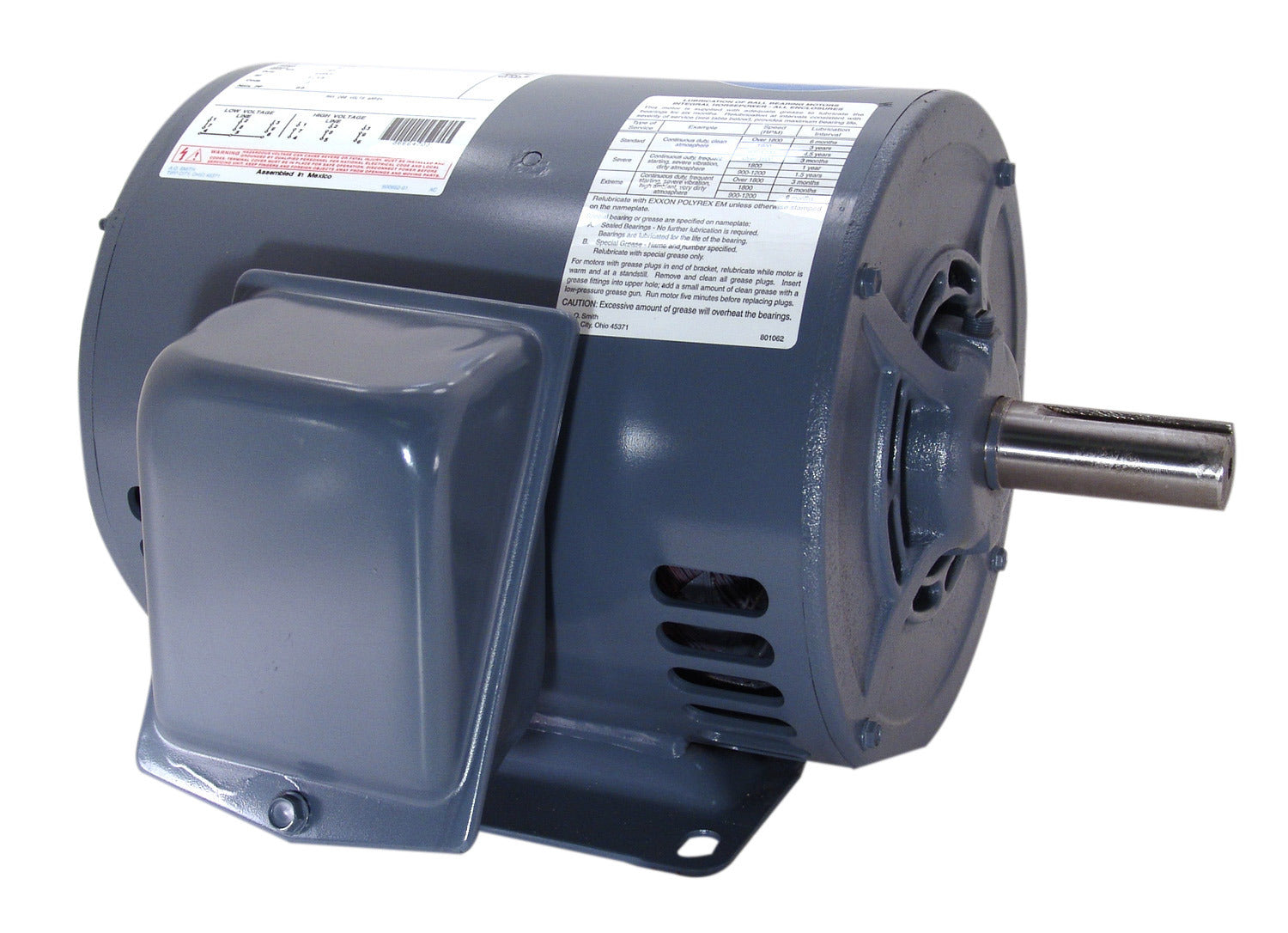

Century UM320 General Purpose Motor 5 / 2.22 HP 200-230 Voltage

Product Description

The Century UM320 is a general-purpose motor designed for various applications. It operates at a power of 5 horsepower and is suitable for voltages between 200 and 230. The motor has a speed rating of 1775 RPM, providing reliable performance essential for different tasks.

• Electrical Type: Polyphase
• Frame Size: 215T
• Enclosure Type: Open Drip Proof

Product Highlights

This motor is built with rolled steel material and features ball bearings for smooth operation. The keyed shaft design simplifies installation, and the motor is optimized for continuous duty, ensuring reliability.

Product Information

Standard Information

• Country of Origin: Mexico
• Weight: 140 lbs

Technical Specifications

• Voltage: 200-230
• Amperage: 14.5-14/7.8-7.4
• Phase: Three
• Shaft Diameter: 1.375 inches
• Shaft Extension: 3.470 inches
• Service Factor: 1.15
• Starting Method: Across The Line
• Motor Duty: Continuous
