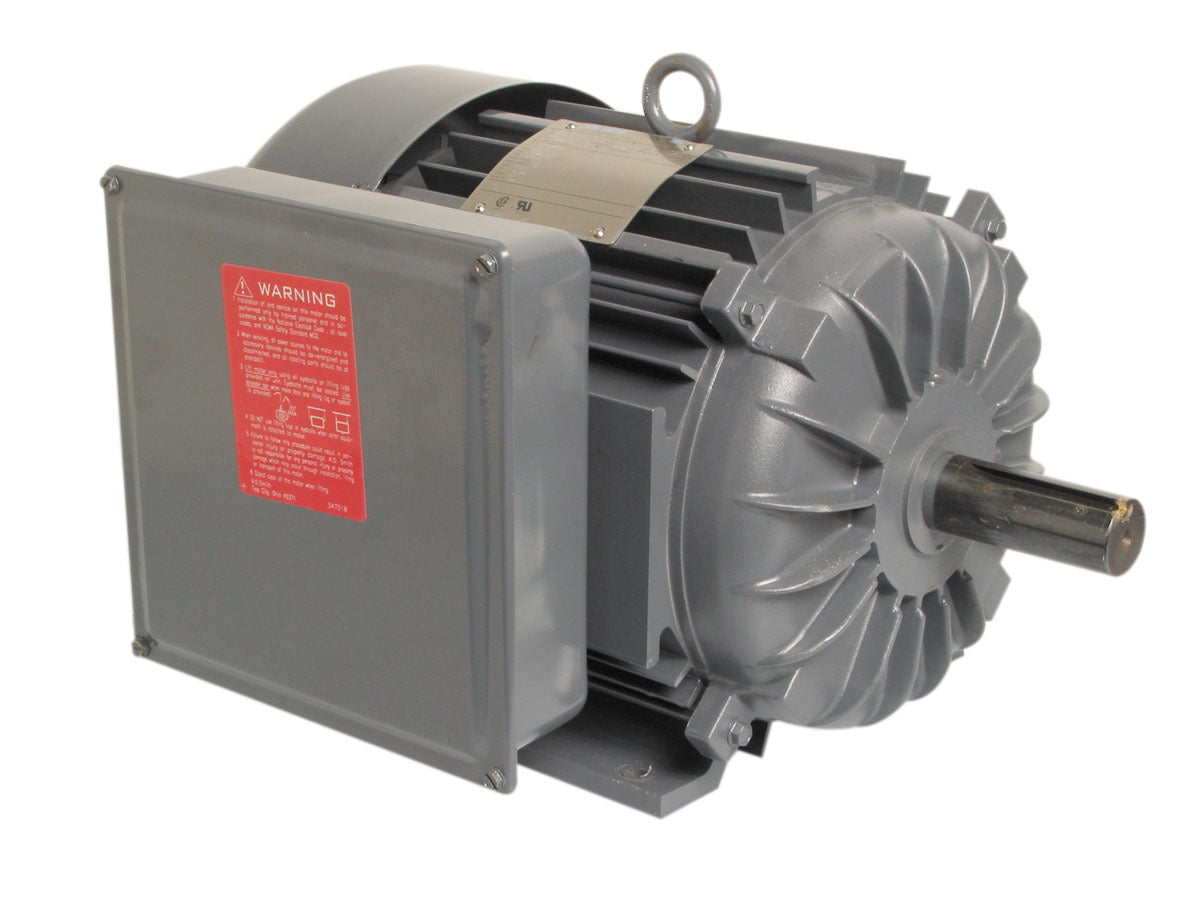

Century UK312 General Purpose Farm Duty Motor 10 HP 230 Volts

Product Description

The Century UK312 is a general-purpose farm duty motor designed for varied applications. This motor operates efficiently with a power output of ten horsepower and runs at one thousand seven hundred fifty RPM. It features a capacitor start and capacitor run, suitable for single or dual voltage applications. The motor has a rigid base mount and is constructed from rolled steel for durability.

• Horsepower: 10 HP
• Voltage: 230
• Phase: 1, Reversible Rotation

Product Highlights

This motor is built to handle continuous duty cycles, making it ideal for agricultural and industrial uses.

Product Information

Standard Information

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Enclosure: Totally Enclosed Fan Cooled

Technical Specifications

• Frame Size: F215T
• Shaft Diameter: 1.375 inches
• Amperage: 38.0
• Weight: 163 lbs
• Dimensions: 24.75 x 18 x 12 inches
• Bearings Type: Ball / Ball
• Duty Cycle: Continuous
