Century UK108 General Purpose Motor 3/4 HP (Single Phase) Replacement MPN

Product Description

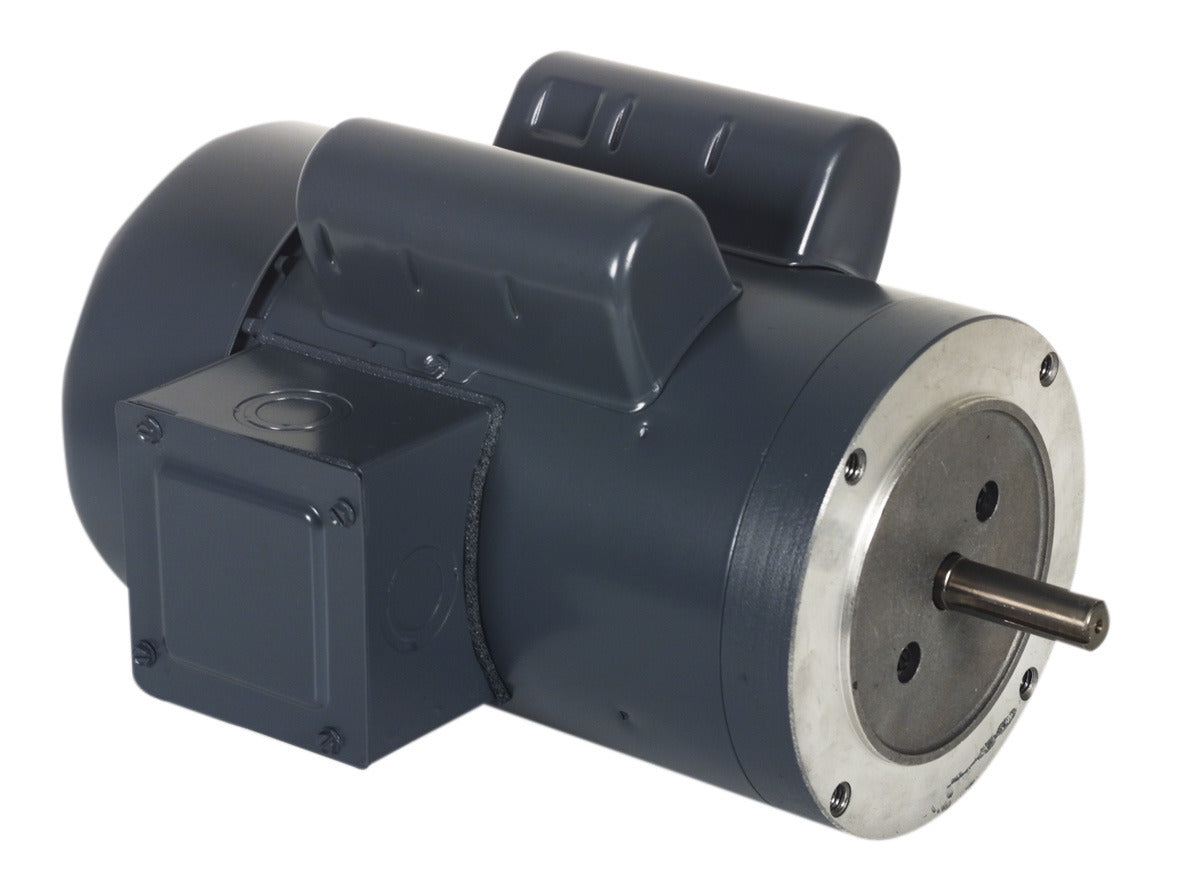

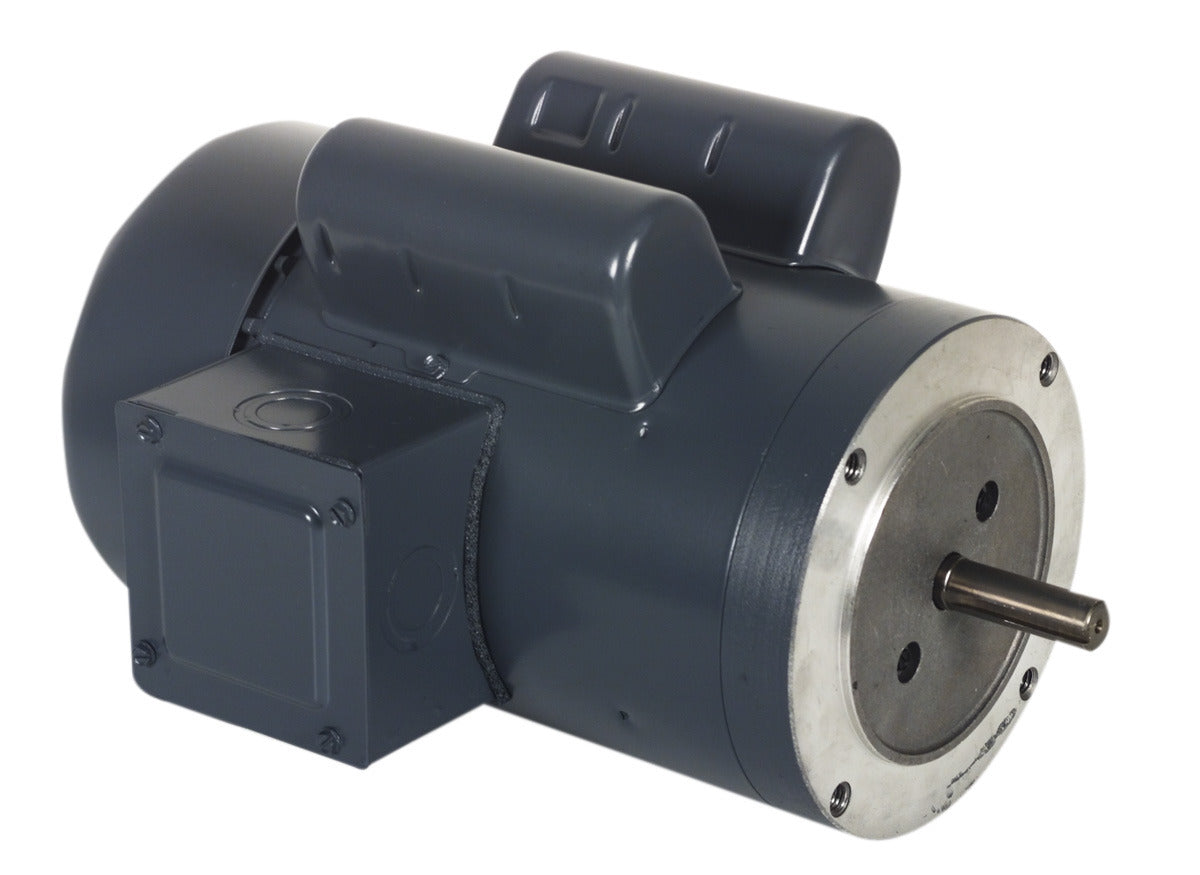

The Century UK108 is a general purpose motor designed for reliable operation in various applications. This motor operates at three-fourths horsepower and supports a single phase voltage range of two hundred eight to two hundred thirty or one hundred fifteen volts. Made from heavy-duty rolled steel, this motor is built to endure prolonged use while ensuring efficiency.

• Continuous duty cycle allows maximum operation at rated power
• Capacitor start design optimizes torque and efficiency
• Permanently lubricated bearings enhance motor lifespan

Product Highlights

This motor is UL recognized and CSA certified, confirming its safety across numerous uses. Its reversible counterclockwise rotation and compact design of L145TC frame allow it to fit well in existing setups.

Product Information

Standard Information

• Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
• Phase: 1

Technical Specifications

• Horsepower: 3/4 HP
• Rated Voltage: 208-230/115
• RPM: 1140
• Shaft Diameter: 0.875 inches
• Shaft Extension: 2.130 inches
• Amperage: 4.6-4.4/8.8
