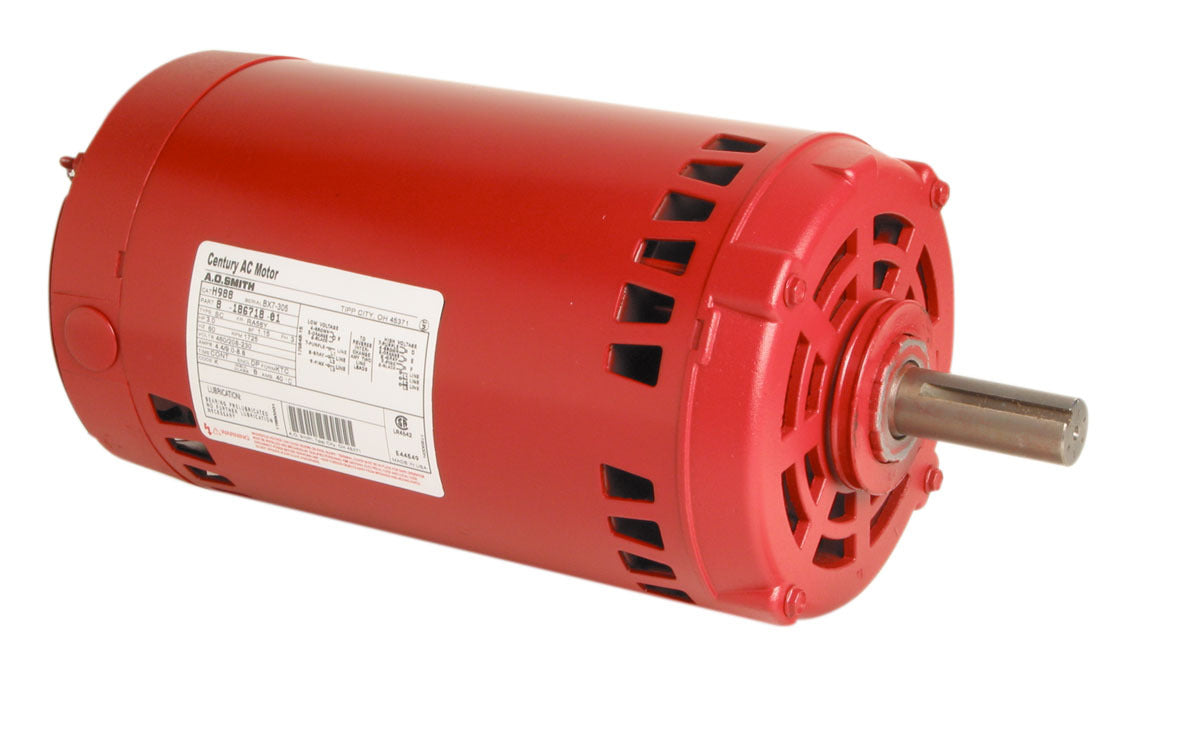

Century UH988 Hot Water Circulating Pump Motor 3.0 HP (Size: 6.5 inches)

Product Description

The Century UH988 is a hot water circulating pump motor designed for efficient operation in various pumping applications. With a power output of three horsepower and a rated speed of one thousand seven hundred twenty-five RPM, this motor is ideal for tasks requiring reliable circulation of hot water.

• Electrical type: Polyphase, Induction with Single or Dual Voltage
• Rotational direction: Reversible Counterclockwise
• Amperage: 4.4/9.0-8.8 A

Product Highlights

Built with rolled steel and featuring a drip-proof enclosure, this motor performs reliably in challenging environments. Its cushion ring mounting allows for easy installation and durability.

Product Information

Standard Information

• Brand: Century
• MPN: UH988

Technical Specifications

• Motor type: Hot Water Circulating Pump Motor
• Phase: Three
• Voltage: 460/208-230 V
• Shaft diameter: 0.875 inches
• Weight: 42 lbs
• Dimensions: 19 inches (length) x 10 inches (width) x 9 inches (height)
• Material: Rolled Steel
• Bearings type: Ball
• Service factor: 1.15
• Duty: Continuous
• Ambient temperature: 40 degrees Celsius
