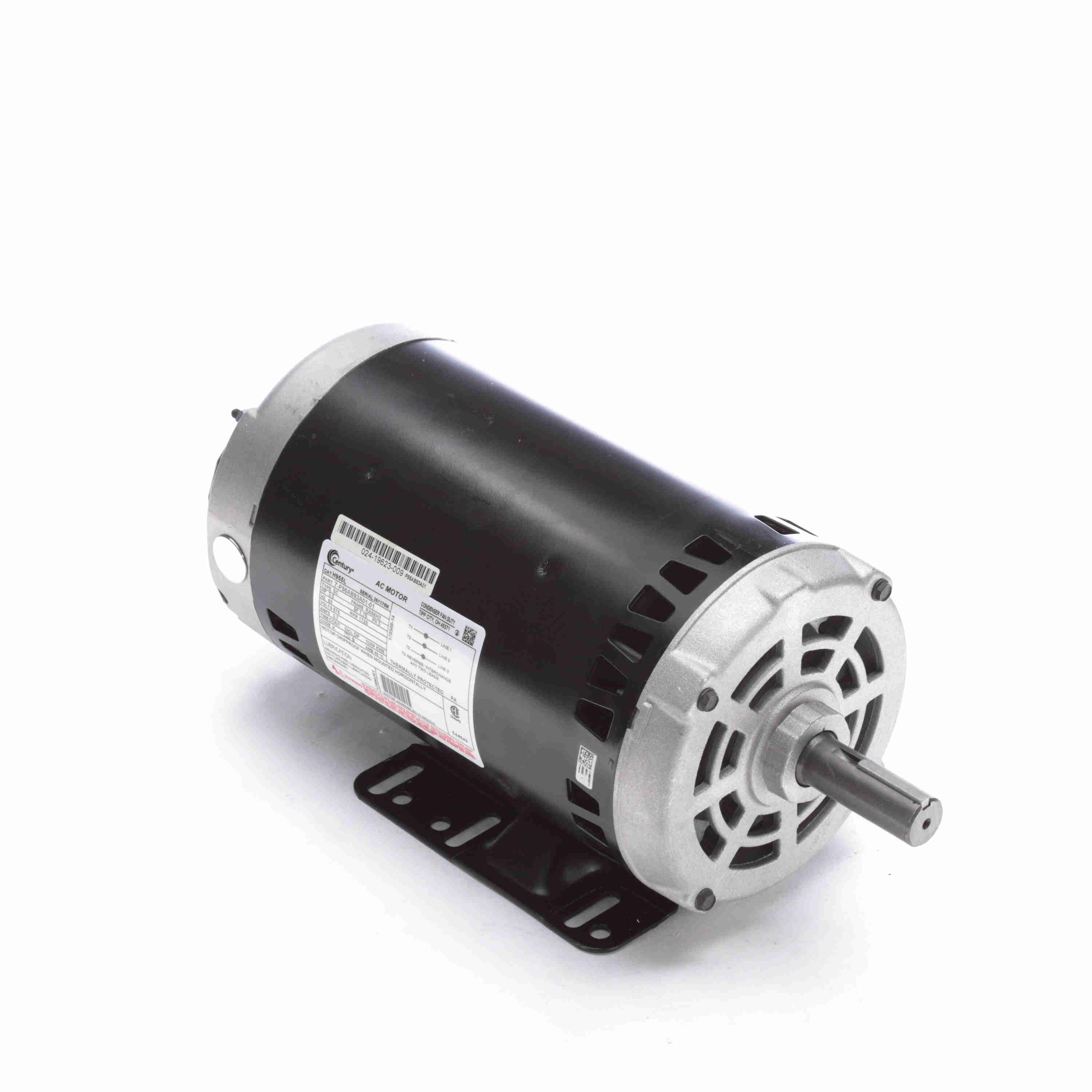

Century UH955L General Purpose Motor 3 HP 575 Volt

Product Description

The Century UH955L General Purpose Motor is designed for various industrial and commercial uses. It operates at three horsepower and features a single or dual voltage capability of 575 volts. This motor is suitable for polyphase applications and has a reversible counterclockwise rotation.

• UL recognized component listing for safety
• Durable rolled steel construction
• Permanently lubricated sealed bearings

Product Highlights

This motor provides robust performance with a four-pole design and thermally protected overload protection.

Product Information

Standard Information

• Brand: Century
• MPN: UH955L

Technical Specifications

• Electrical Type: Polyphase, Induction Type
• Horsepower: 3 HP
• Voltage: 575 V
• RPM: 1725
• Frame: RA56HZ
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: Three
• Construction Material: Rolled Steel
• Amperage: 3.7 A
• Shaft Diameter: 0.875 inches
• Shaft Extension: 2.310 inches
• Mounting Type: Rigid Base
