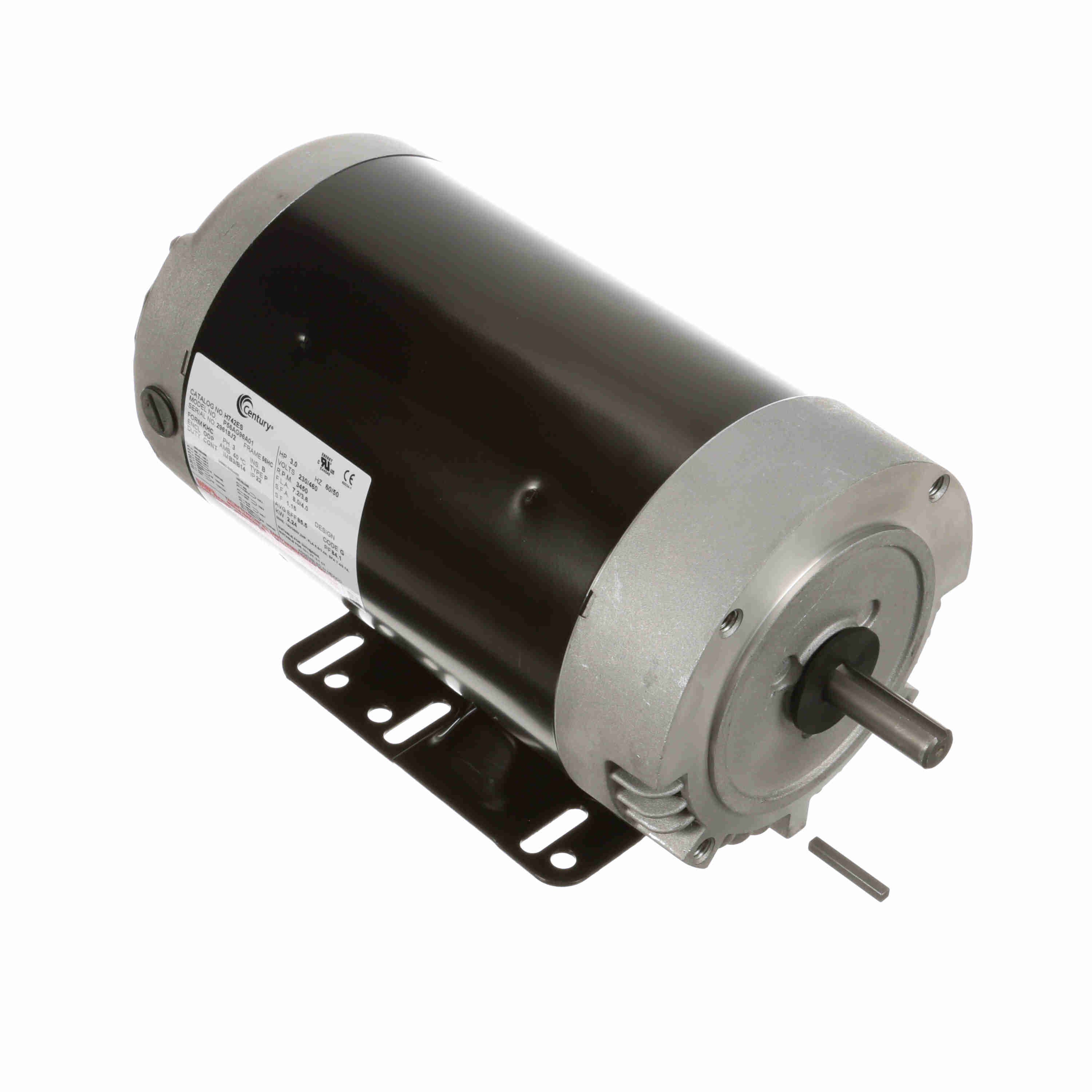

Century UH742ES General Purpose Motor 3.0 (230/460 Voltage)

Product Description

The Century UH742ES is a reliable general purpose motor designed for various applications. This motor features a power rating of three horsepower and operates at dual voltages of two hundred thirty and four hundred sixty volts. The open drip proof enclosure ensures protection during operation, while the heavy-duty rolled steel construction guarantees durability in demanding environments.

• Three-phase design with a reversible rotation option
• UL recognized and CSA certified for safety
• Premium efficiency for improved reliability

Product Highlights

The UH742ES is equipped with permanently lubricated sealed bearings, which increase the lifespan of the motor significantly.

Product Information

Standard Information

• Brand: Century
• MPN: UH742ES

Technical Specifications

• Power Rating: 3 HP
• Voltage: 230/460 V
• Frame Size: 56HC
• Enclosure Type: Open Drip Proof
• Amperage: 7.2/3.6 A
• RPM: 3450
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.940 inches
