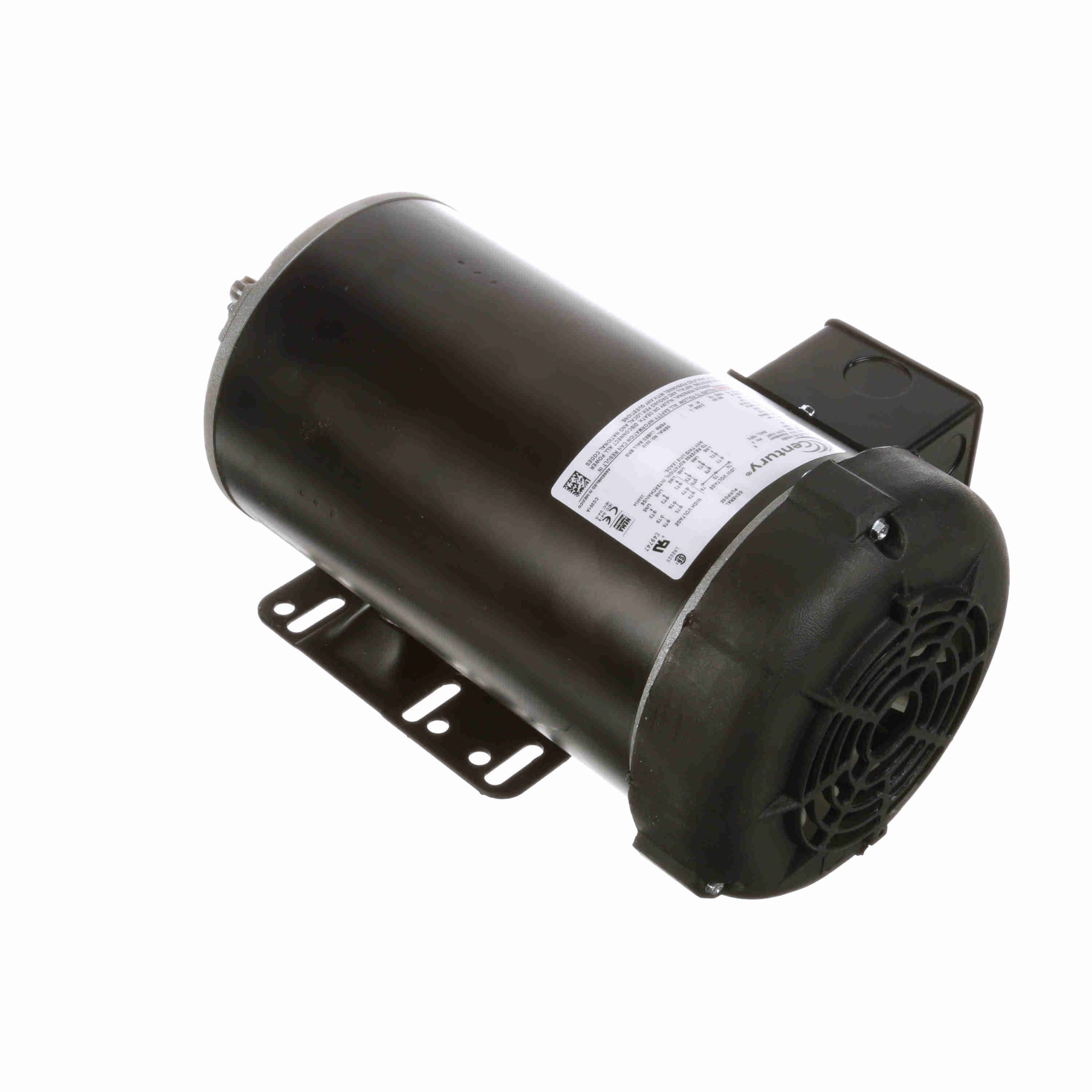

Century UH528ES General Purpose Motor 1 HP 230/460V

Product Description

The Century UH528ES is a general-purpose motor designed for three-phase applications. This motor operates at one horsepower and features a continuous duty cycle that ensures maximum performance under rated power specifications. The motor is suitable for various industrial applications due to its versatile design.

• UL recognized component listing and CSA certification ensure safety in various applications.
• Class B or F insulation protects the motor for a maximum temperature rating.
• Permanently lubricated, double-sealed bearings improve motor longevity.

Product Highlights

The Century UH528ES motor features a totally enclosed fan-cooled enclosure, making it suitable for challenging environments. Its reversible rotation capability allows it to be used in multiple configurations.

Product Information

Standard Information

• Brand: Century
• Type: General Purpose Motor

Technical Specifications

• MPN: UH528ES
• HP: 1
• Voltage: 230/460
• RPM: 1140
• Frame Size: 56H
• Diameter: 6.5 inches
• Shaft Diameter: 0.625 inches
• Length: 16 inches
• Width: 8 inches
• Height: 10 inches
• Weight: 50 lbs
