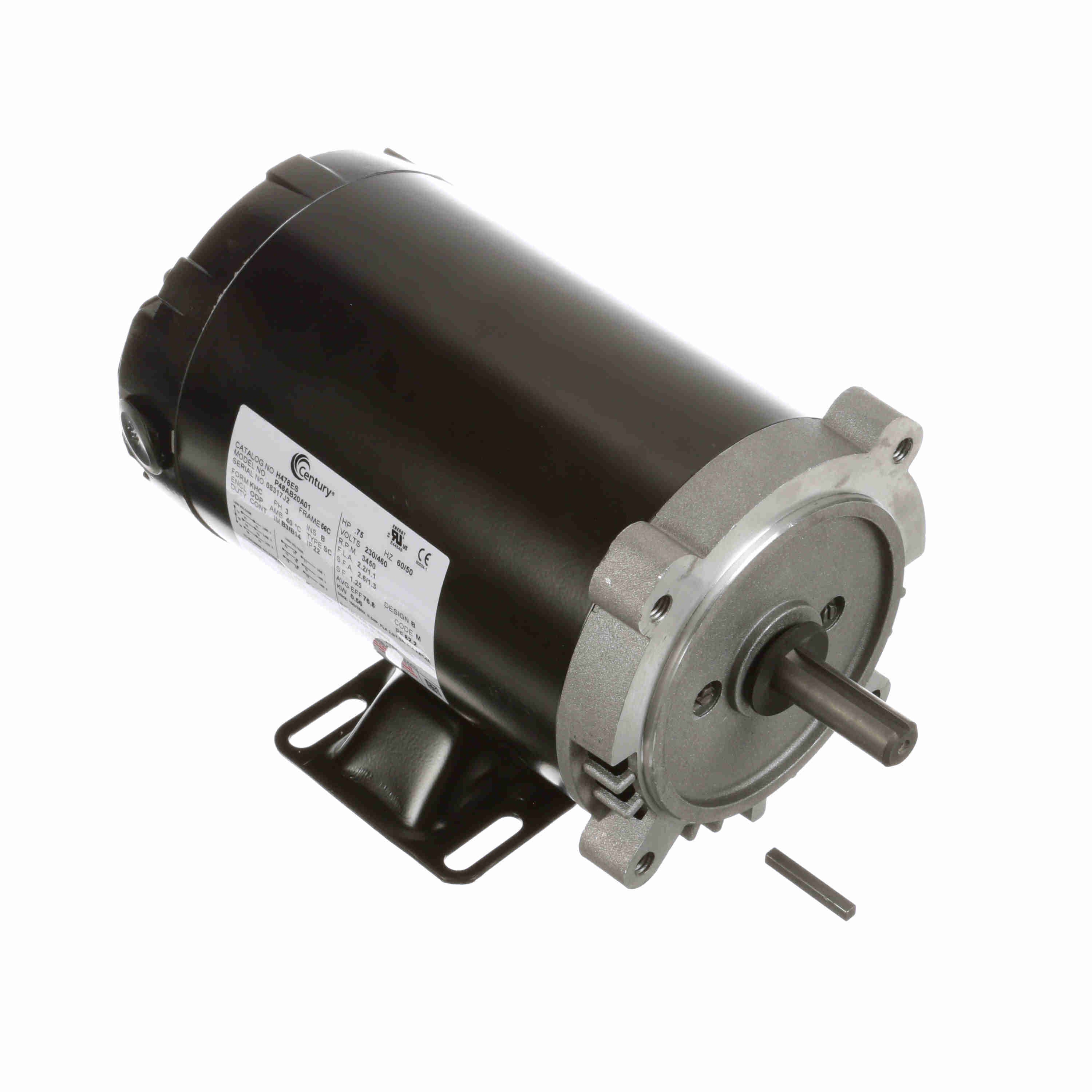

Century UH476ES General Purpose Motor 0.75 HP 56C

Product Description

The Century UH476ES is a reliable general purpose motor designed for various applications. This motor is a polyphase, induction type unit that operates on single or dual voltage. The motor has a power rating of 0.75 horsepower and is equipped with a 56C frame, making it suitable for use in many machinery settings.

• Voltage: 230/460
• RPM: 3450
• Enclosure: Open Drip Proof

Product Highlights

This motor features a rigid base for easy mounting and has double sealed ball bearings for durability. It is designed for continuous duty and can rotate clockwise or counterclockwise, making it versatile for various applications.

Product Information

Standard Information

• Brand: Century
• MPN: UH476ES

Technical Specifications

• Electrical Type: Polyphase, Induction Type, Single Or Dual Voltage
• Bearings Type: Ball / Ball
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.07 inches
• Amperage: 2.2/1.1
• Material: Rolled Steel
• Ambient Temperature: 40 °C
• Efficiency Class: B
