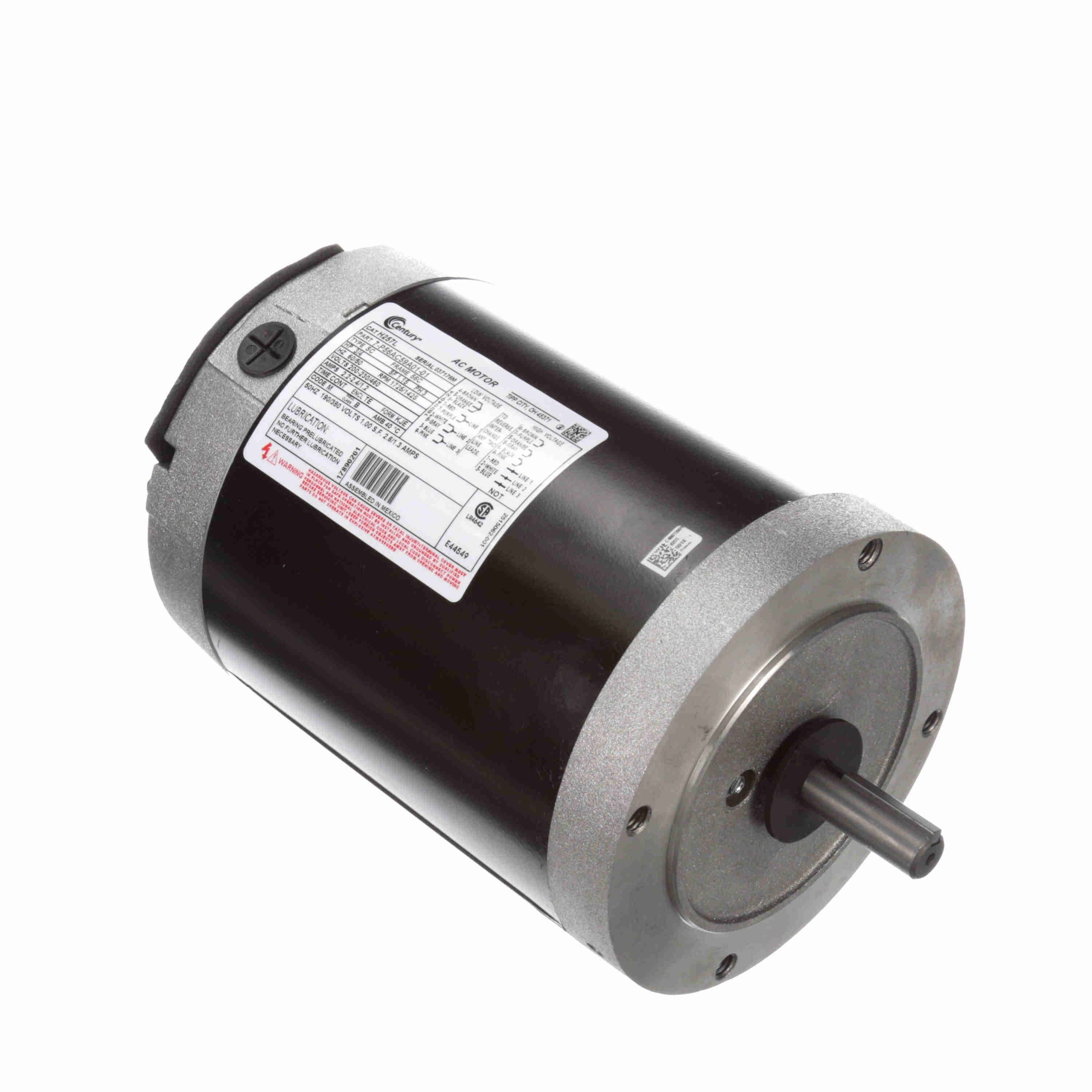

Century UH257 General Purpose Motor 3/4 HP (Single Or Dual Voltage) 056T17F15950

Product Description

The Century UH257 is a general purpose motor designed for both residential and industrial applications. With a power rating of three-fourths horsepower, this motor operates effectively at both two hundred thirty and four hundred sixty volts. It is capable of reversible counterclockwise rotation, making it versatile for various uses.

• UL recognized and CSA certified for safety in multiple applications.
• Heavy-duty rolled steel construction enhances durability.
• Permanently lubricated sealed bearings for extended motor life.

Product Highlights

This motor is ideal for belt-driven or fan-on-shaft applications, ensuring reliable performance in demanding environments.

Product Information

Standard Information

• Voltage: 200-230/460
• Phase: Three

Technical Specifications

• HP: 3/4
• KW: 0.56
• RPM: 1725
• Frame: 56C
• Amperage: 2.2-2.4/1.2
• Mounting Type: Round
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.94 inches
