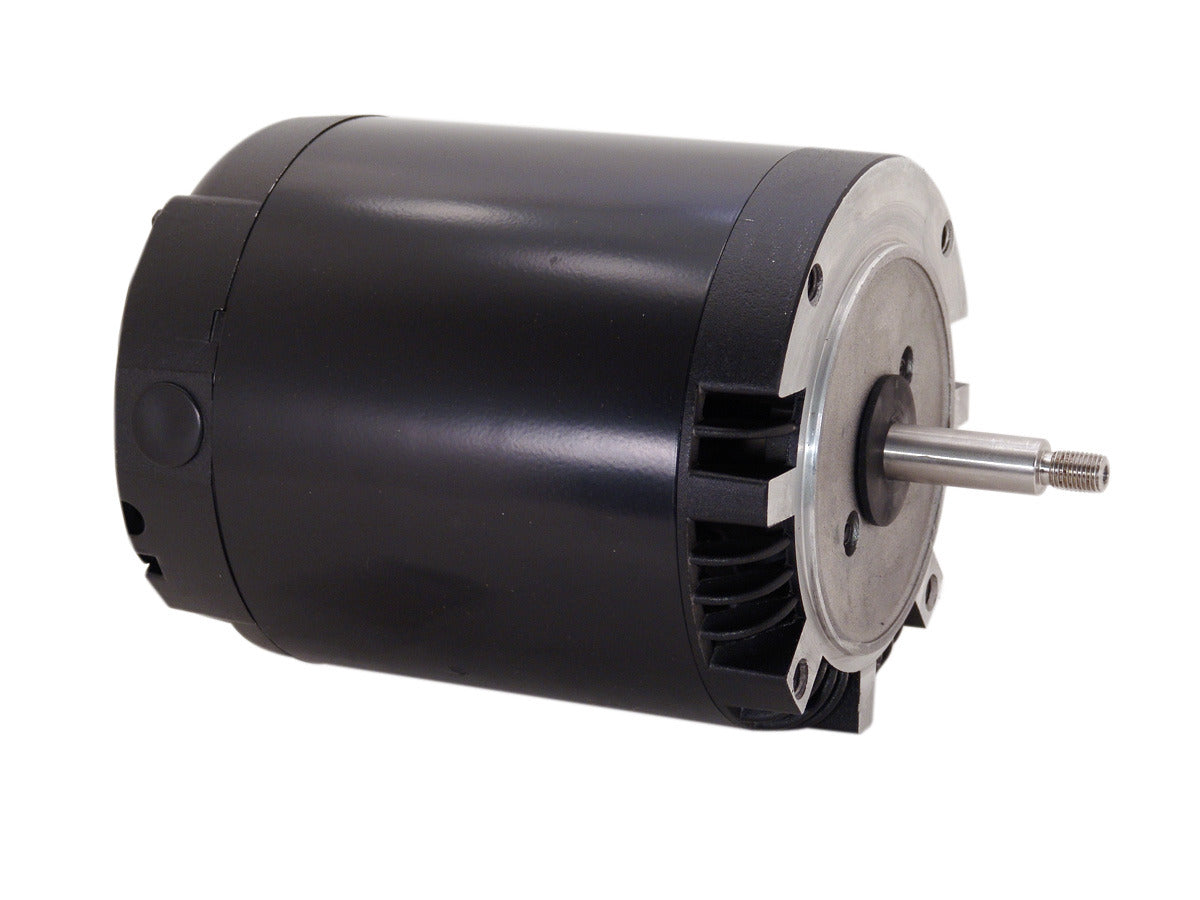

Century UH248 General Purpose Pump Motor 1/2 HP 575V

Product Description

The Century UH248 is a general purpose pump motor designed for various applications. This motor operates on three-phase voltage of five hundred seventy-five volts and has a power output of one-half horsepower. Its frame size is K56J and it features a drip-proof enclosure.

• Rotational direction is reversible counterclockwise.
• Equipped with double sealed ball bearings for enhanced durability.
• Constructed from rolled steel for longevity.

Product Highlights

This motor is suitable for continuous operation and is ideal for various pumping tasks in industrial settings.

Product Information

Standard Information

• Type: General Purpose Pump Motor
• Certification: Recognized UL, CSA compliant

Technical Specifications

• Motor Type: Polyphase, Induction Type, Single or Dual Voltage
• HP: 0.5
• KW: 0.37
• RPM: 3450
• Diameter: 6.5 inches
• Amperage: SF .9
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2.570 inches
• Overload Protector: None
• Phase: Three
