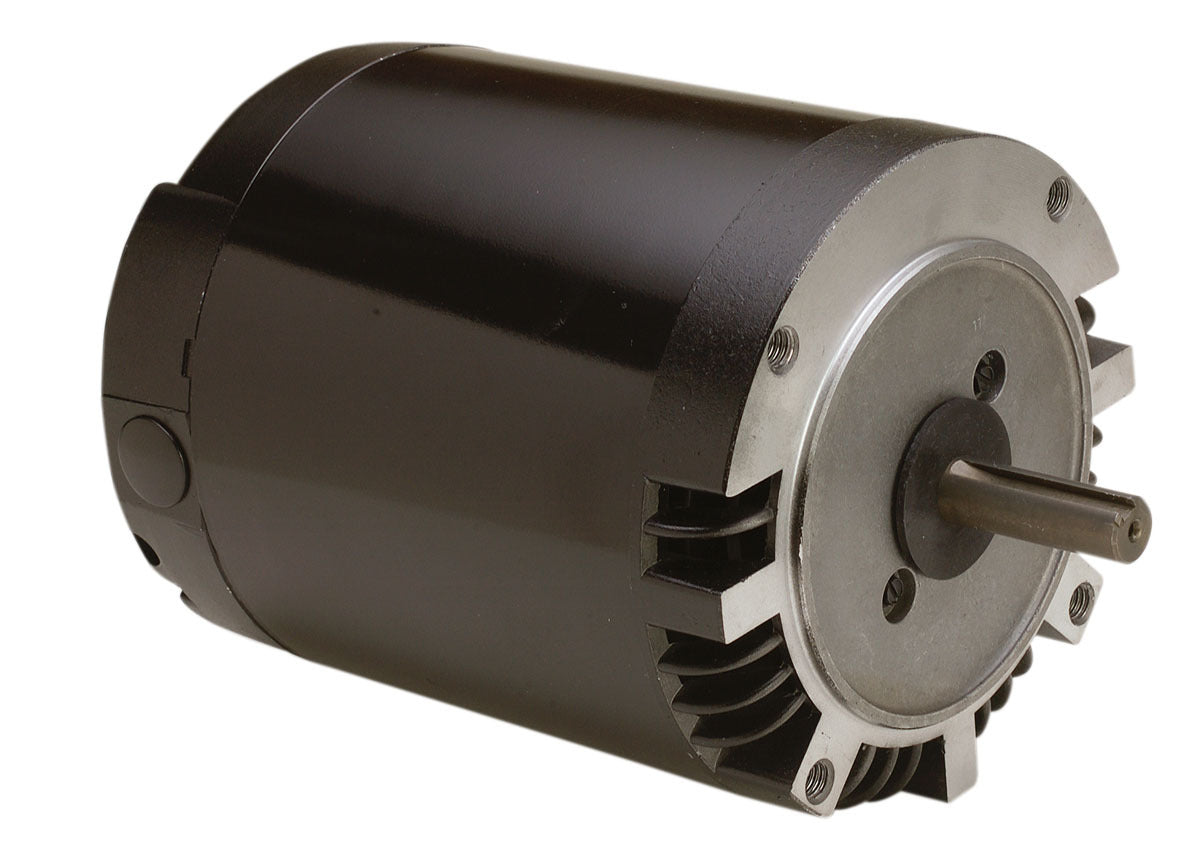

Century UH247 General Purpose Pump Motor 1/2 HP 575V

Product Description

The Century UH247 is a general-purpose pump motor designed for efficient operation. This motor operates on a polyphase induction type with single or dual voltage options, providing versatility for different applications. The motor features a half-horsepower rating and is suitable for three-phase systems. It is designed for continuous duty and is built with robust materials for longevity.

• Power Rating: 1/2 HP
• Voltage: 575V
• Reversible Counterclockwise Rotation

Product Highlights

Ideal for various pump applications, it ensures reliability and optimal performance in demanding environments.

Product Information

Standard Information

• Brand: Century
• Type: General Purpose Pump Motor

Technical Specifications

• Electrical Type: Polyphase, Induction Type
• Horsepower: 0.5
• Frame Size: K56C
• Diameter: 6.5 inches
• Enclosure: Drip Proof
• Phase: Three
• Amperage: SF 0.9
• Shaft Diameter: 0.625 inches
• RPM: 3450
• Country of Origin: Mexico
