Product Description

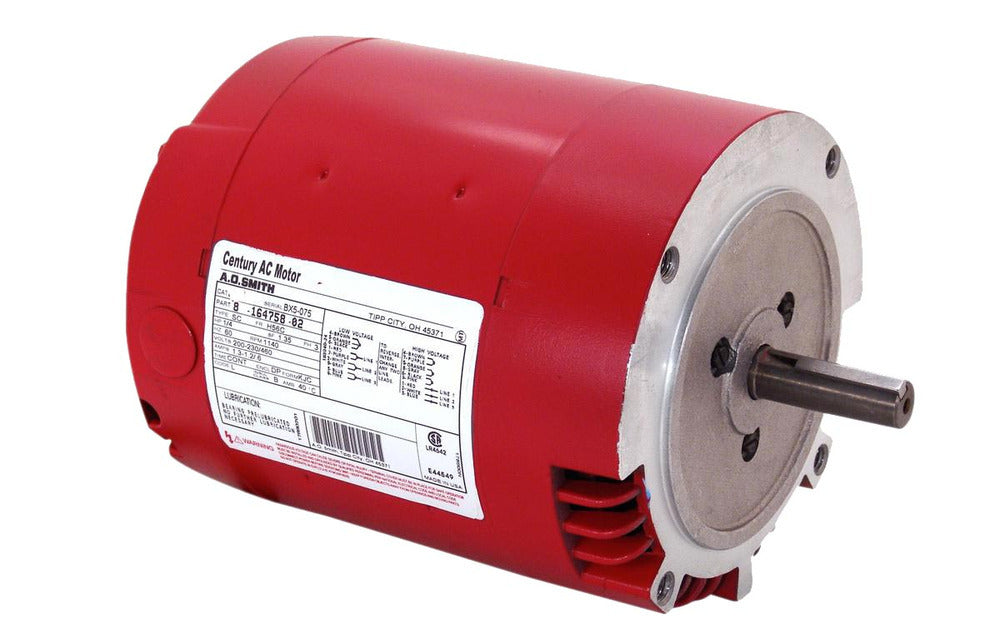

The Century UH1046 Circulator Pump Motor is a reliable choice for various pumping applications. This motor operates on three phases with a power of one half horsepower and is designed for high efficiency. Built with durable rolled steel, it is suitable for continuous use and can withstand demanding environments. The motor is suitable for installations that require a 575-volt power supply.
- Power: 1/2 HP
- Phase: Three
- RPM: 1725
Product Highlights
This model features a keyed shaft with a diameter of zero point six two five inches and an extension of one point two five inches. It supports a mounting type which is round and operates without an overload protector, ensuring reliability in function.
Product Information
Standard Information
-
Material: Rolled Steel
-
Country of Origin: Mexico
Technical Specifications
-
Voltage: 575
-
Enclosure Type: ODP
-
Bearings Type: Ball
-
Shaft Rotation: REV
-
Amperage: 0.90
-
Frame Size: 56CZ
-
Dimensions: 13 x 10 x 11 inches
-
Weight: 20 lbs
