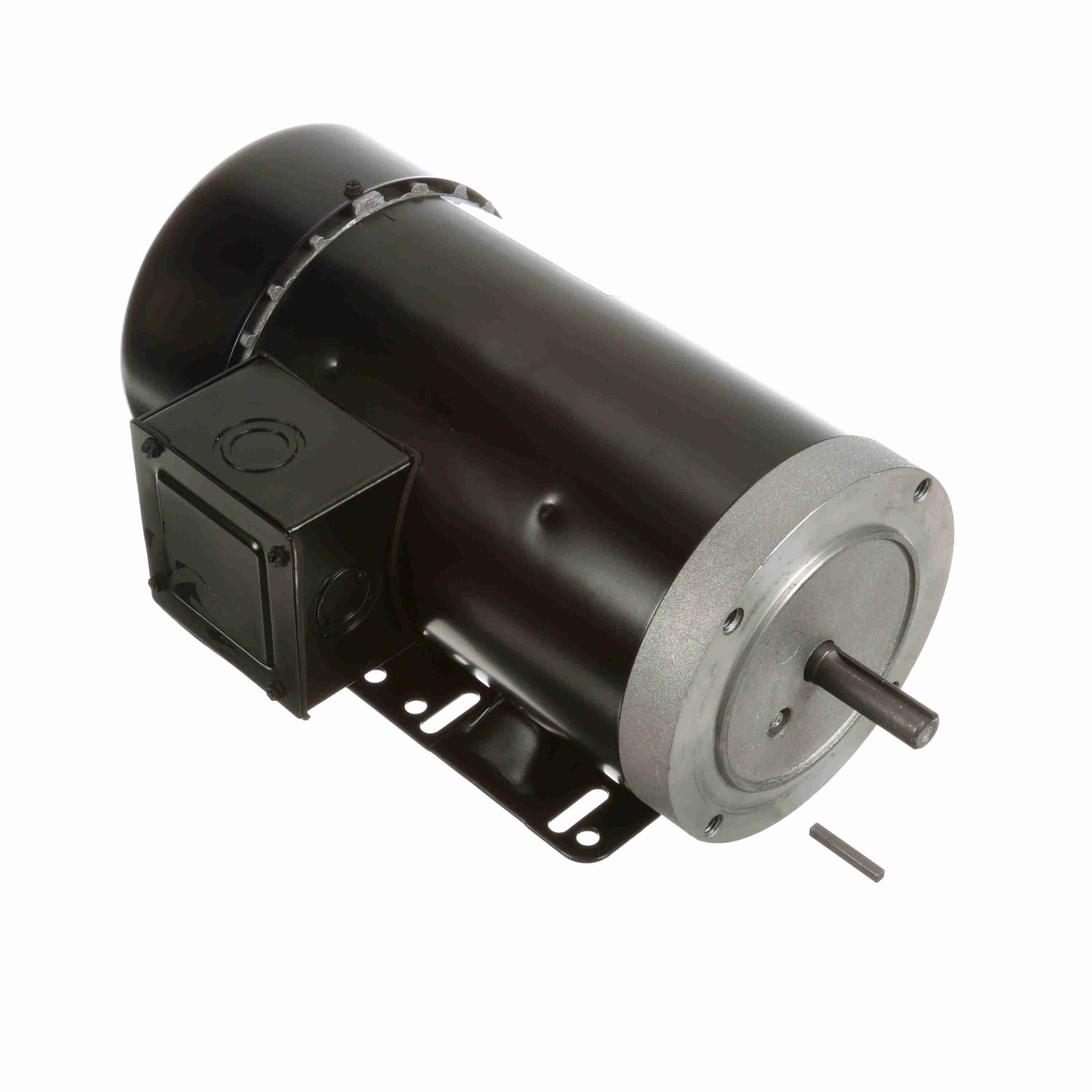

Century UH1017ES General Purpose Motor 3 HP 230/460 Volt

Product Description

The Century UH1017ES is a general-purpose motor designed for reliable performance. The motor operates at three horsepower and is suitable for applications requiring a continuous duty cycle. It features a polyphase induction type and can handle both 230 and 460 volts. The motor has a reversible counterclockwise rotation and is constructed with rolled steel, making it durable for various environments.

• UL recognized and CSA certified for safety.
• Continuous duty design maximizes performance.
• Permanently lubricated bearings extend motor life.

Product Highlights

This motor is ideal for HVAC systems, pumps, and other general applications.

Product Information

Standard Information

• Brand: Century
• MPN: UH1017ES

Technical Specifications

• Power: 3 HP
• Voltage: 230/460
• RPM: 3450
• Frame Size: R56HC
• Bearings Type: Ball / Ball
• Mounting Type: Rigid Base
• Amperage: 8.0/4.0
• Shaft Diameter: 0.625 inches
