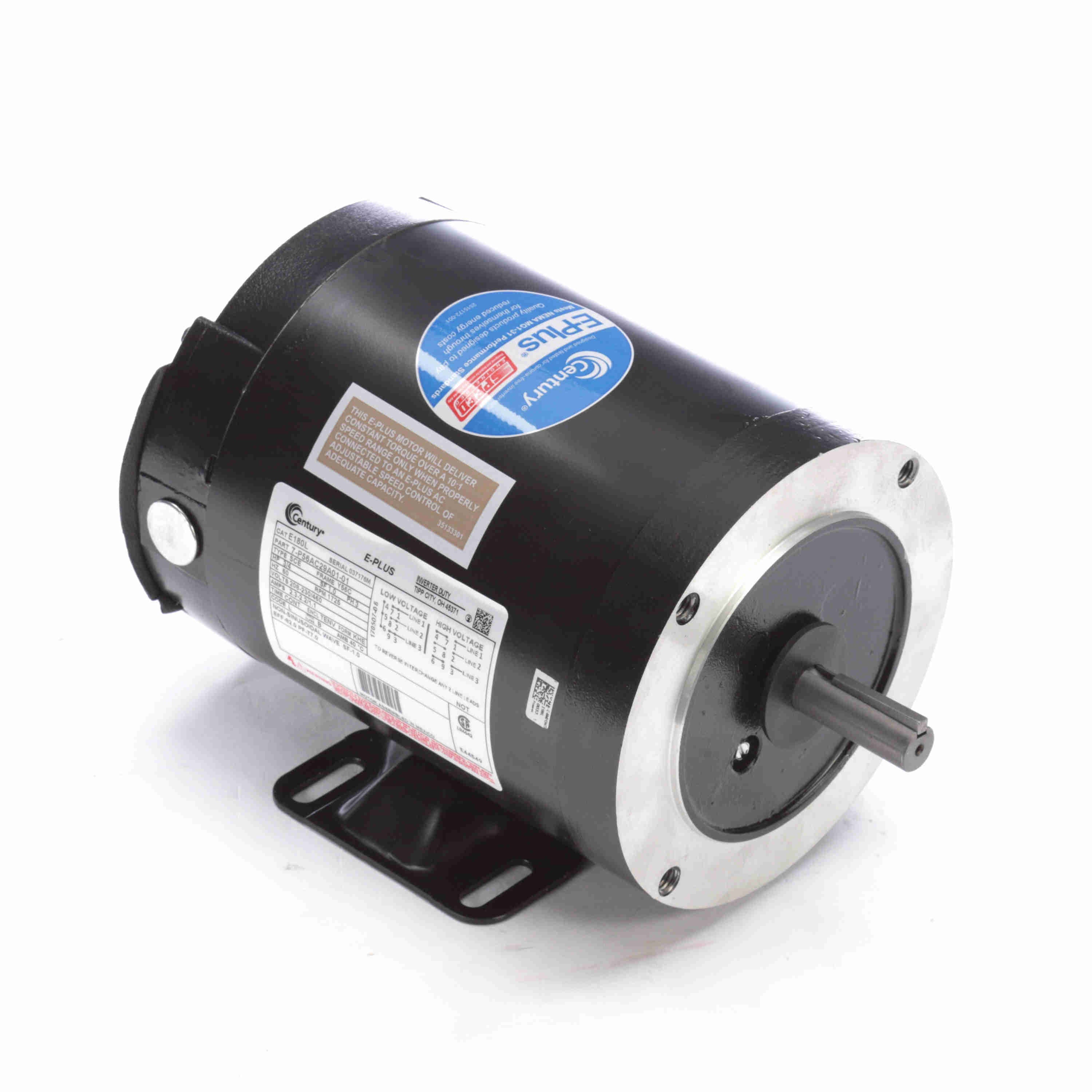

Century UE180L Vector Duty Motor 3/4 HP

Product Description

The Century UE180L is a vector duty motor designed for efficiency and reliability. This three-phase induction motor operates at three quarters of a horsepower with a speed of 1725 RPM. It is a part of the NEMA design B category, ensuring suitable performance across various applications.

• Energy efficient design
• Totally enclosed non-ventilated structure
• Reversible counterclockwise rotation

Product Highlights

This motor features a rigid base for secure installations, and its rolled steel material provides durability. It can work in environments with an ambient temperature up to forty degrees Celsius. The designed shaft diameter is zero point six two five inches with a two point zero seven inch shaft extension suitable for standard fittings.

Product Information

Standard Information

• Brand: Century
• MPN: UE180L

Technical Specifications

• Power: 0.75 kW
• Voltage: 208-230/460 V
• Amperage: 2.3-2.2/1.1 A
• Shaft Type: Keyed
• Enclosure Type: Totally Enclosed Non Ventilated
• Frame Size: Y56C
• Weight: 30 lbs
• Dimensions: 16 x 8 x 10 inches
