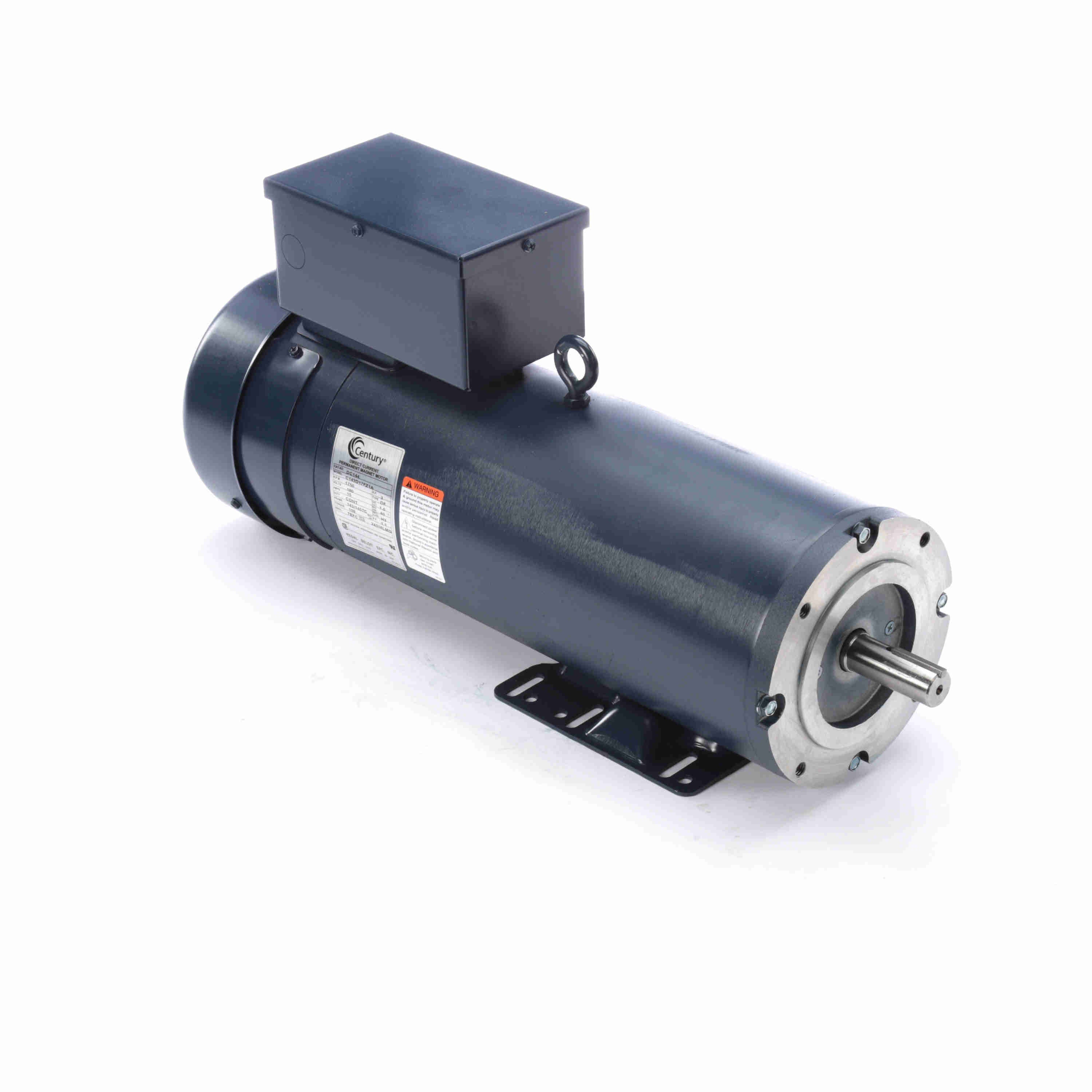

Century UDC144 DC Permanent Magnet Motor 3 HP 180 Volts

Product Description

The Century UDC144 is a DC permanent magnet motor with a power of three horsepower. This motor operates at a speed of one thousand seven hundred fifty RPM and is rated for a voltage of one hundred eighty volts. It features a totally enclosed fan cooled design and is UL and CSA listed, complying with NEMA MG1 standards.

• Power: 3 HP, Voltage: 180
• Speed: 1750 RPM, Type: Keyed Shaft
• Applications: Suitable for various definite purpose uses

Product Highlights

This motor includes a brush holder design that allows easy access for maintenance. The permanently lubricated sealed bearings ensure a longer lifespan, and the design is compatible with PWM and SCR type controllers.

Product Information

Standard Information

• Voltage: 180
• Rotation: Reversible

Technical Specifications

• Electrical Type: DC Permanent Magnet
• HP: 3
• RPM: 1750
• Frame Size: 145TC
• Material: Rolled Steel
• Amperage: 15
• Shaft Diameter: 0.875 inches
• Weight: 107 lbs
