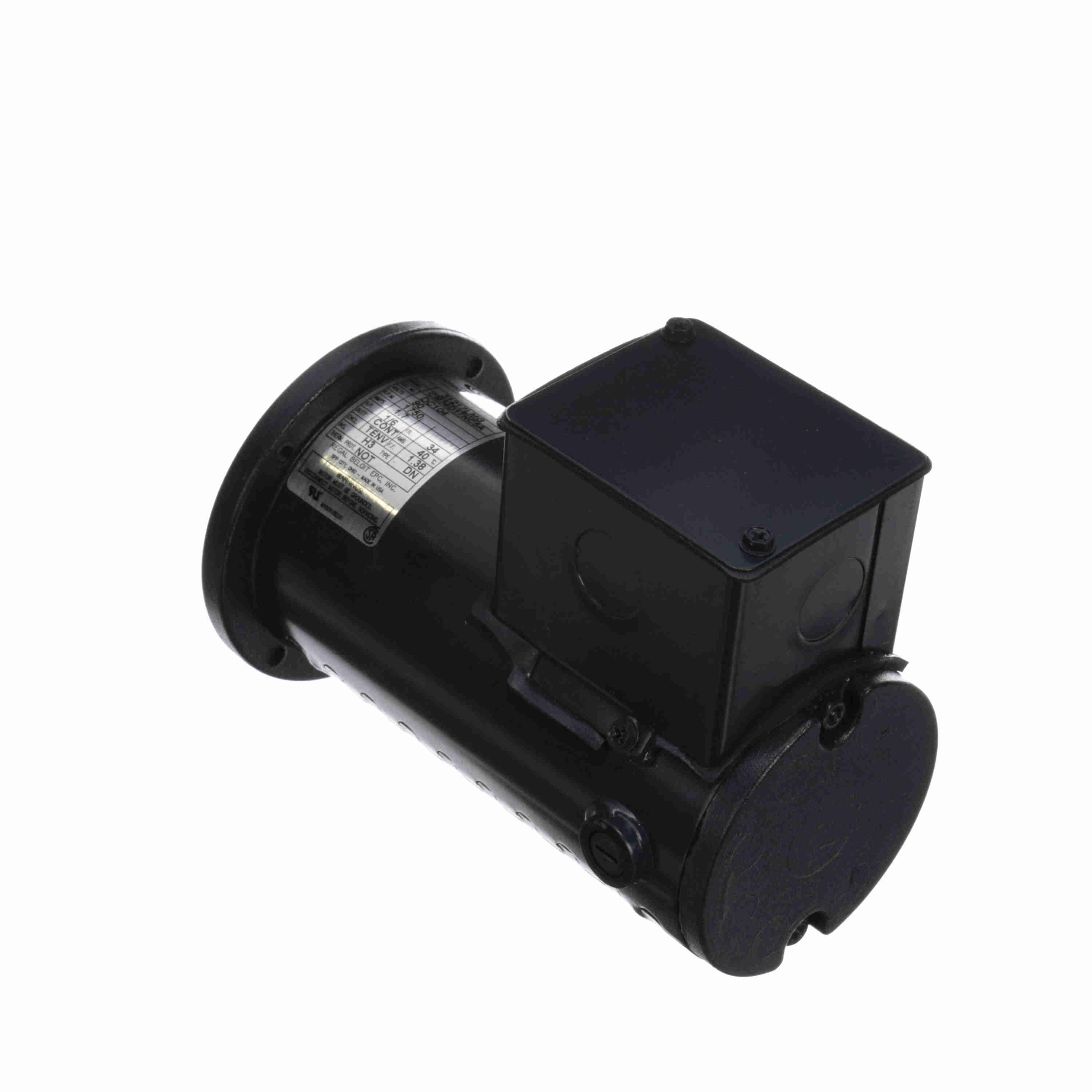

Century UDC104 DC Permanent Magnet Motor 1/6 HP 90V

Product Description

The Century UDC104 is a DC Permanent Magnet motor designed for various applications requiring reliable performance. This motor operates at one sixth horsepower and is constructed with rolled steel for durability. It is UL and CSA listed, ensuring it meets industry safety standards.

• Efficient operation with a speed of one thousand seven hundred fifty RPM.
• Sealed bearings for extended operational life.
• Compatible with PWM or SCR type speed controllers.

Product Highlights

This motor features a reversible rotation for flexible installation options, and its totally enclosed non-ventilated design protects internal components against environmental elements.

Product Information

Standard Information

• Power Type: DC
• Frame Size: 34

Technical Specifications

• Horsepower: 1/6
• Voltage: 90
• Amperage: 1.7 A
• Height: 6.69 inches
• Width: 7.68 inches
• Length: 16.5 inches
• Shaft Diameter: 0.5 inches
• Shaft Extension: 1.38 inches
• Efficiency: Standard
