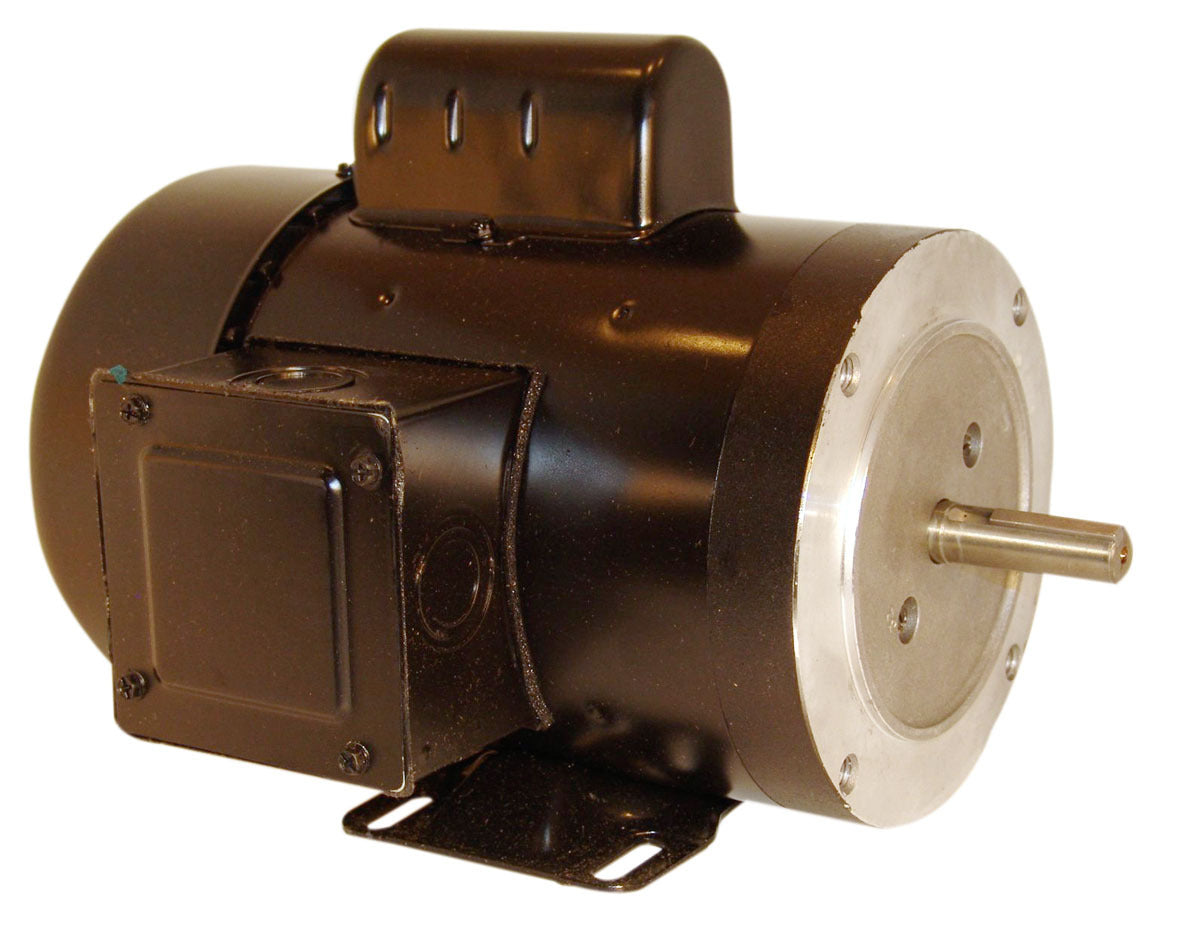

Century UC827 General Purpose Motor 1/2 HP

Product Description

The Century UC827 is a general-purpose motor designed for durability and efficiency. This motor operates at one half horsepower with a speed of one thousand one hundred forty RPM. It features a capacitor start and induction run design, suitable for both single and dual voltage configurations. The product is constructed with rolled steel and includes a rigid base for mounting.

• Suitable for continuous duty applications
• Features reversible counterclockwise rotation
• Permanently lubricated sealed bearings for extended life

Product Highlights

This motor is ideal for various applications, including HVAC systems and pumps.

Product Information

Standard Information

• Electrical Type: Capacitor Start, Induction Run
• Phase: 1

Technical Specifications

• HP: 1/2
• RPM: 1140
• Voltage: 115/208-230
• Frame Size: M56C
• Dimensions: 15.5 inches (length) x 10.5 inches (width) x 10 inches (height)
• Weight: 35 lbs
• Shaft Diameter: 0.625 inches
• Amperage: 8.4/4.0-4.2
