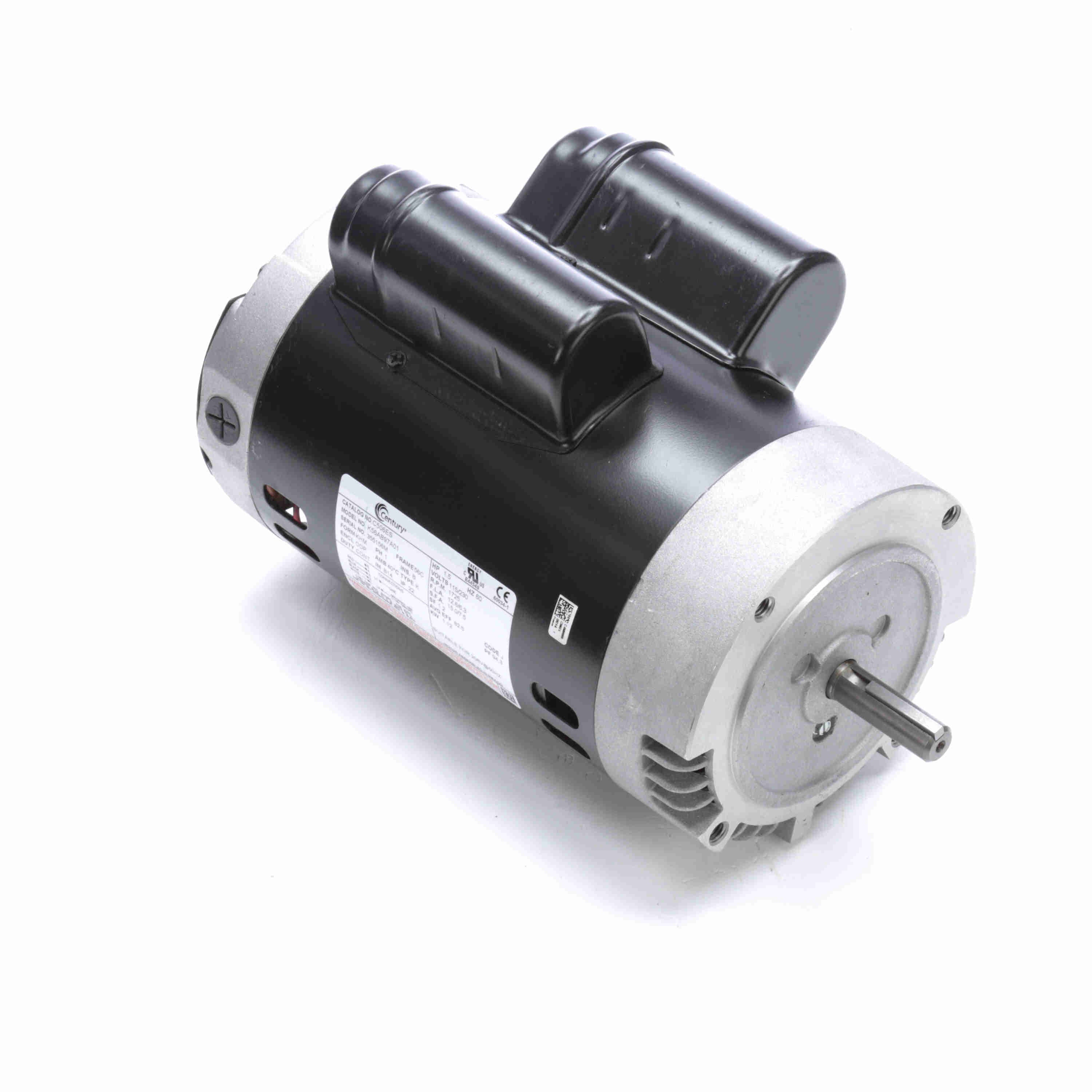

Century UC506ES General Purpose Motor 1.5 HP 56C

Product Description

The Century UC506ES is a general purpose motor designed for versatility across various applications. This motor operates at one and one-half horsepower and utilizes capacitor start and capacitor run electrical types, making it suitable for a wide range of tasks.

• UL recognized component listing ensures safety and reliability.
• Constructed from heavy-duty rolled steel for durability.
• Permanently lubricated, double-sealed bearings enhance motor lifespan.

Product Highlights

This motor is built to operate efficiently with an electrical rating of one point five horsepower and a frame size of fifty-six C. It features an open drip proof enclosure and is rated for one-phase operation at both one hundred fifteen and two hundred thirty volts. The motor rotates in a counterclockwise direction from the lead end and has a breakdown torque that meets various demands.

Product Information

Standard Information

• Brand: Century
• MPN: UC506ES

Technical Specifications

• Electrical Type: Capacitor Start Capacitor Run
• Horsepower: 1.5 HP
• Voltage: 115/230
• RPM: 1725
• Frame: 56C
• Diameter: 6.5 inches
• Amperage: 12.6/6.3
• Shaft Diameter: 0.625 inches
