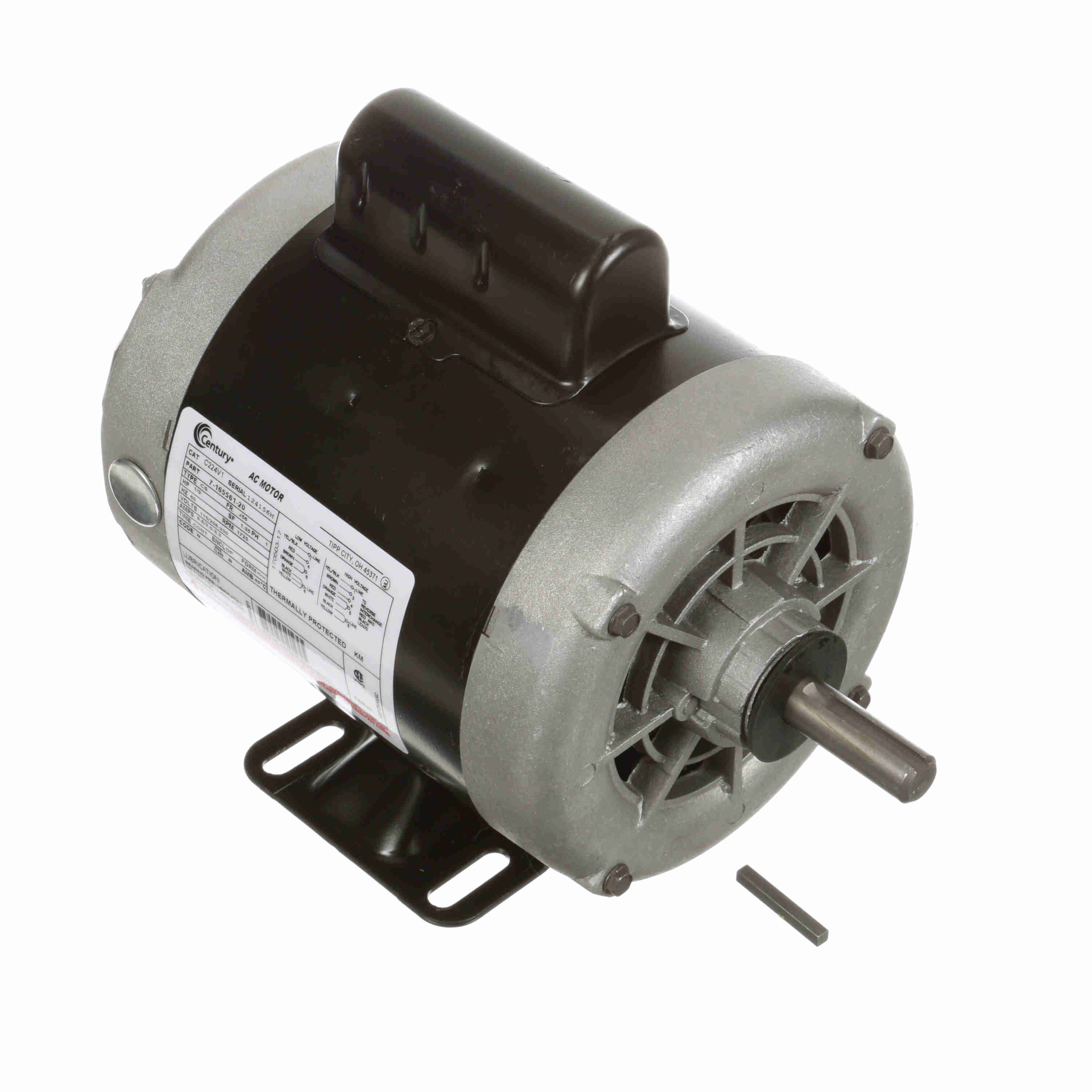

Century UC224V1 General Purpose Motor 1/3 HP 115/208-230 Replacement MPN

Product Description

The Century UC224V1 is a general purpose motor designed for various applications. This motor operates at one-third horsepower with dual voltage capability of 115/208-230 volts. It has a rotational speed of 1725 RPM and is suitable for both single and dual voltage operations. The motor features a drip proof enclosure, allowing for reliable performance in different environments.

• Capacitor start and induction run design.
• Thermally protected for enhanced safety.
• Permanently lubricated bearings for extended lifespan.

Product Highlights

This motor is built for durability and performance. It is compliant with UL and CSA standards, making it safe for a variety of applications.

Product Information

Standard Information

• Brand: Century
• MPN: UC224V1

Technical Specifications

• Power Rating: 1/3 HP
• Voltage: 115/208-230
• RPM: 1725
• Frame Size: J56
• Amperage: 6.6/3.0-3.3
• Shaft Diameter: 0.625 inches
• Shaft Extension: 1.94 inches
• Weight: 22 pounds
