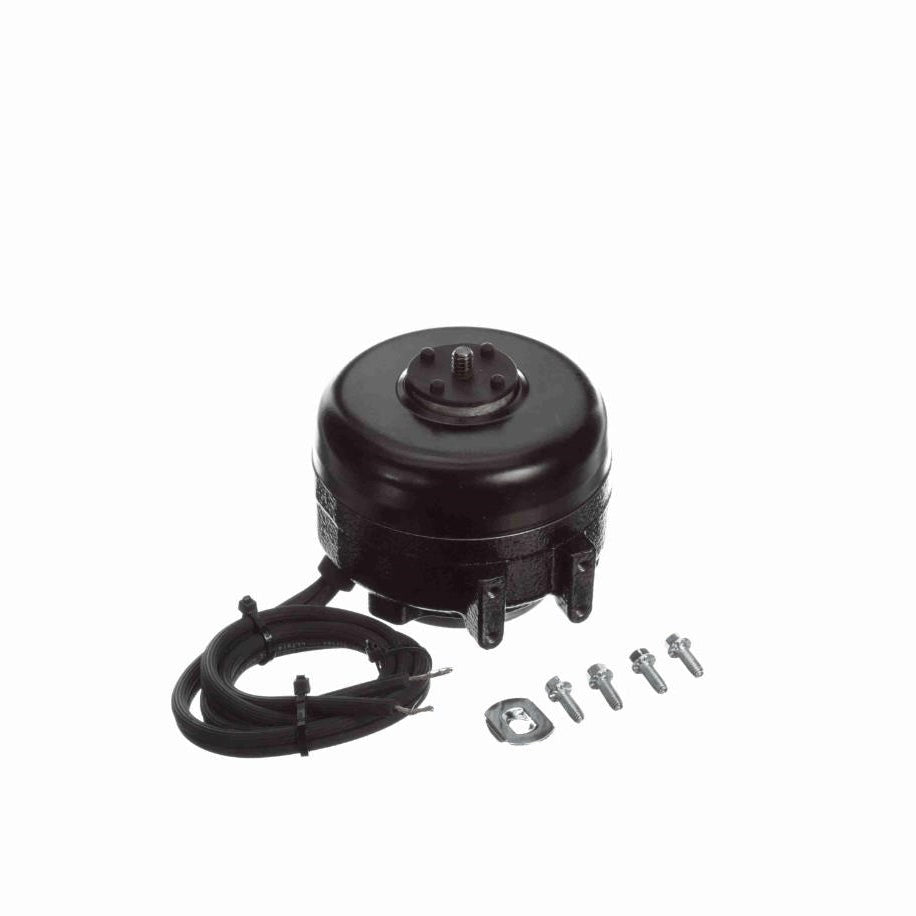

Century UB592 refrigeration motor 5 Watt (1550 RPM)

Product Description

Century UB592 is a 5 watt refrigeration motor rated 115 volts and 1550 rpm. It is a unit-bearing shaded-pole motor in a totally enclosed air over (TEAO) enclosure with Class B insulation rated to 40°C ambient. The motor has a threaded 1/4 x 20 shaft with 0.415 in extension, sealed unit bearings, 28 in leads, impedance thermal protection, continuous-duty across-the-line starting, and is UL recognized and CSA marked.

• 5 W, 115 V, 1550 rpm shaded-pole motor with TEAO enclosure and Class B insulation (40°C ambient)
• Mechanical: threaded 1/4 x 20 shaft with 0.415 in extension, sealed unit bearings, two mounting feet plus three rear mounting holes
• Electrical and protection: 0.34 A current, impedance (thermal) protection, continuous duty, across-the-line starting; UL recognized and CSA marked

Product Highlights

5 W refrigeration motor, 1550 rpm, TEAO, unit bearings, 1/4 x 20 shaft

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: UB592
• Country of Origin: China
