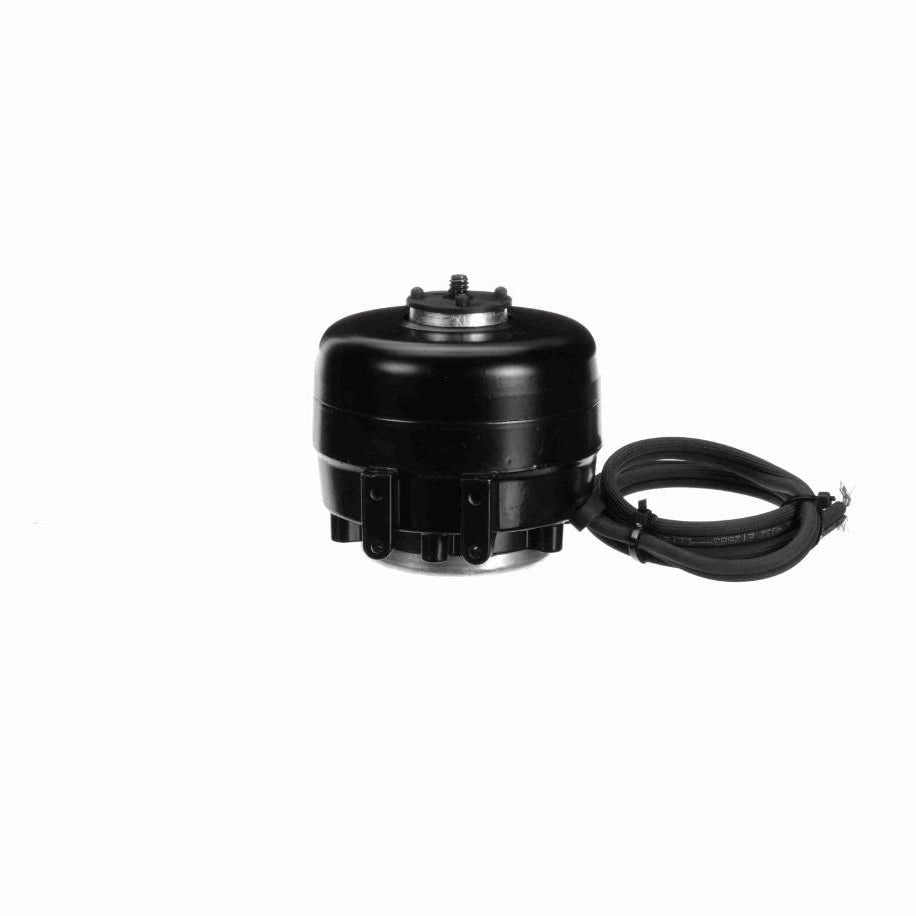

Century UB564 refrigeration motor 9 Watt (1550 rpm)

Product Description

The Century UB564 is a 9 W refrigeration motor rated at 230 V and 1550 rpm with a shaded pole design and unit bearings. It is thermally protected, has Class B insulation for 40 °C ambient, and a totally enclosed air over (TEAO) enclosure for continuous duty. The motor includes a 1/4 x 20 threaded shaft with 0.415 in extension, 28 in leads, and multiple mounting options for refrigeration and HVAC equipment.

• 9 W output, 1550 rpm, 230 V, 0.27 A; shaded pole design, 4 poles, across-the-line starting.
• Unit bearing with 1/4 x 20 threaded shaft and 0.415 in shaft extension; 2 mounting feet and 5 rear mounting holes for installation.
• Thermally protected, Class B insulation rated to 40 °C ambient, totally enclosed air over (TEAO) enclosure, continuous duty.

Product Highlights

9 W, 1550 rpm refrigeration motor with TEAO enclosure, thermal protection, unit bearing shaft, and multiple mounting options.

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: UB564
• Country of Origin: China
