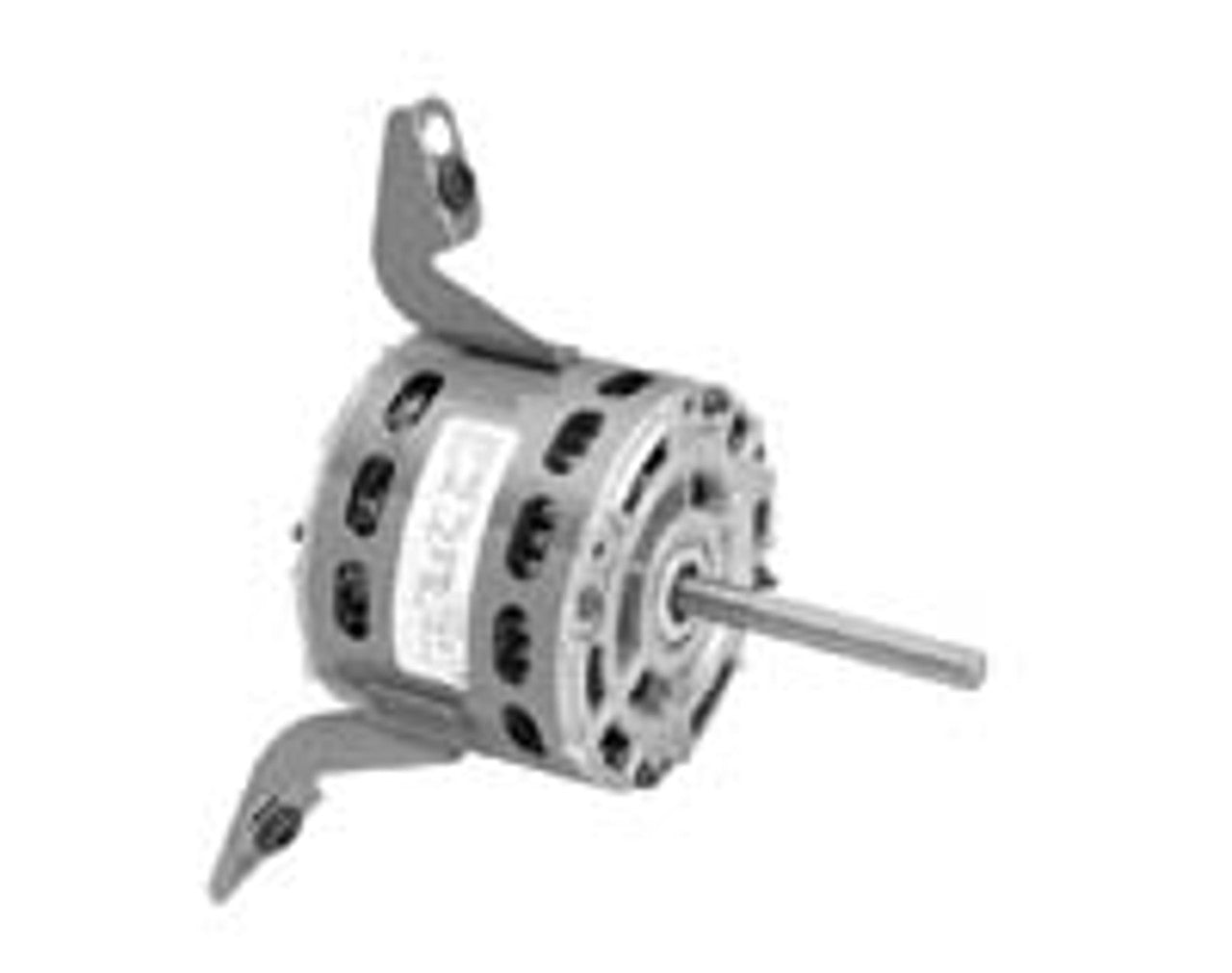

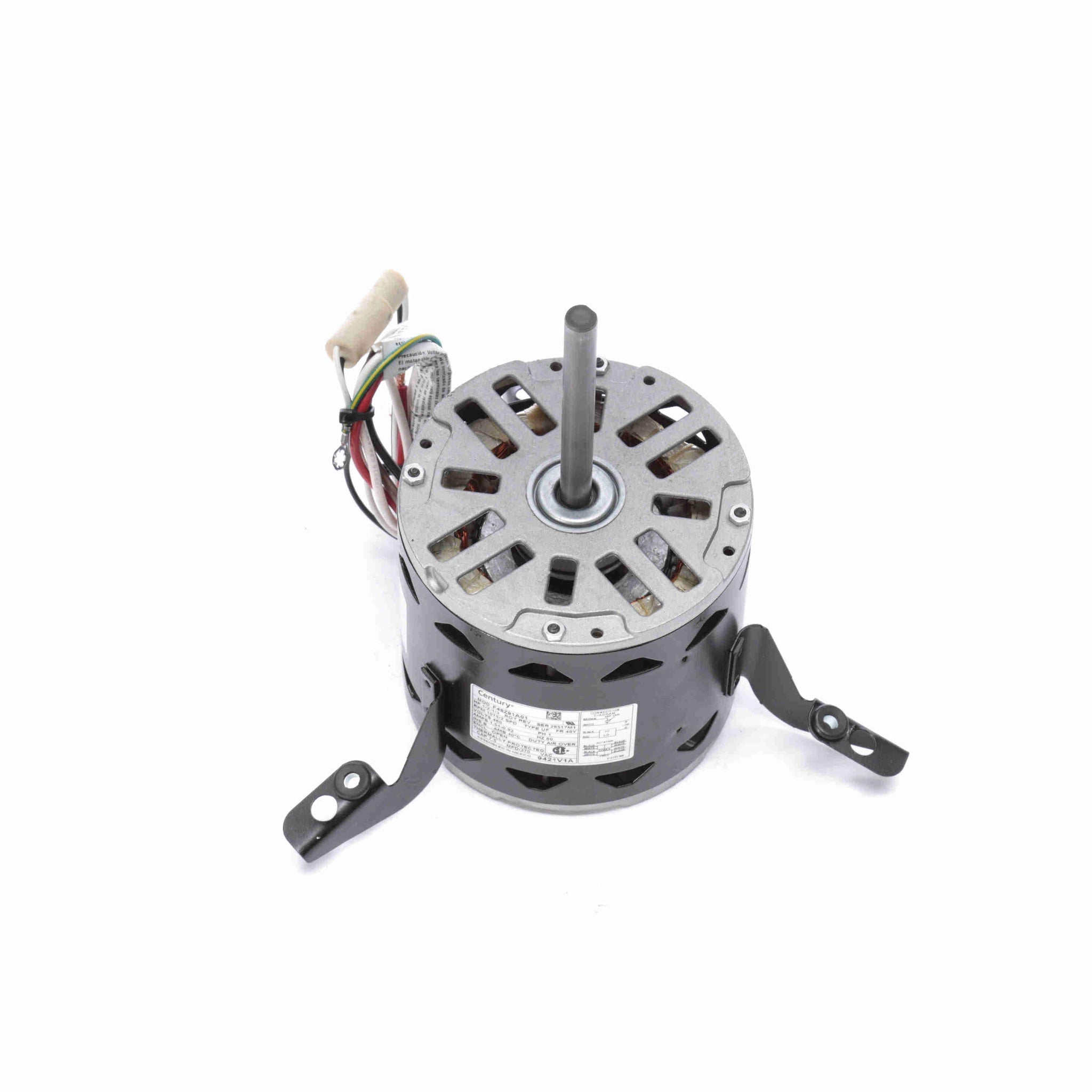

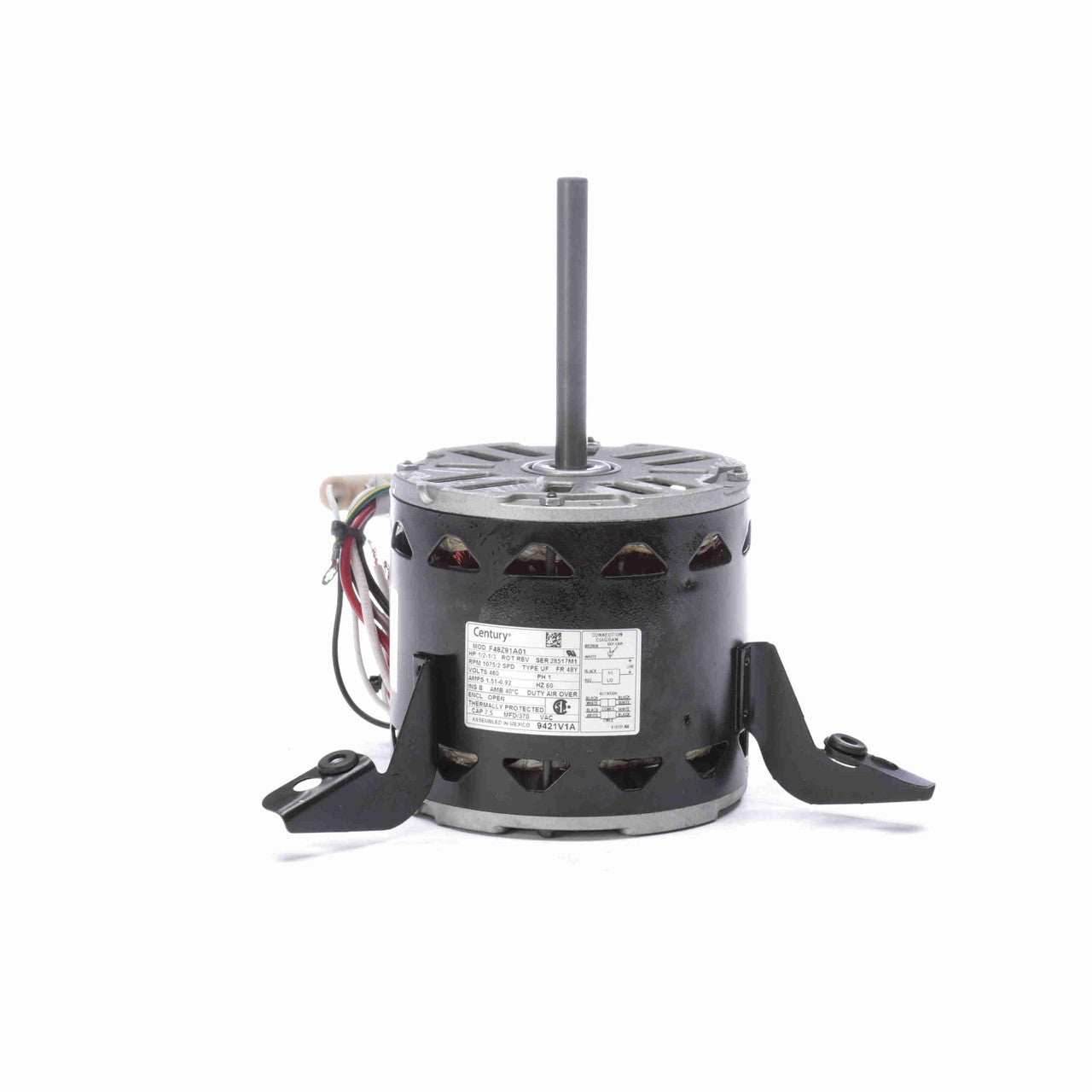

Century U9421V1A Fan Coil/Air Conditioner Motor 1/2 HP 460V Replacement MPN

Product Description

The CENTURY MOTORS U9421V1A is a PSC motor designed for use in fan coil and air conditioning systems. It operates on three-phase power at a voltage of 460V. This motor is equipped with an automatic overload protector which enhances its safety features. Constructed with rolled steel, it has an open air-over design and is suitable for continuous air-over applications. It features sleeve bearings and requires a capacitor rated at 7.5 MFD-370V, which is not included.

• Electrical Type: PSC
• Phase: Single
• Rotation: Reversible

Product Highlights

The U9421V1A motor is ideal for HVAC systems, providing reliable performance and efficient operation. It is equipped for heavy-duty usage in residential or commercial settings.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: U9421V1A

Technical Specifications

• Horsepower: 1/2 HP
• Power Rating: 0.37 kW
• Speed: 1075 RPM
• Voltage: 460 V
• Frame Size: 48Y
• Enclosure: Open Air Over
• Shaft Diameter: 0.500 inches
• Shaft Extension: 4.5 inches
• Overload Protection: Automatic
• Frame Material: Rolled Steel
• Ambient Temperature: 40 °C
• Service Factor: 1
• Number of Speeds: 2
• Drive End Bearing Type: Sleeve
• Current: 1.51/.92 A
• Frequency: 60 Hz
• Overall Length: 9.61 inches
• Starting Method: Across The Line
• Number of Poles: 6
• Insulation Class: B
