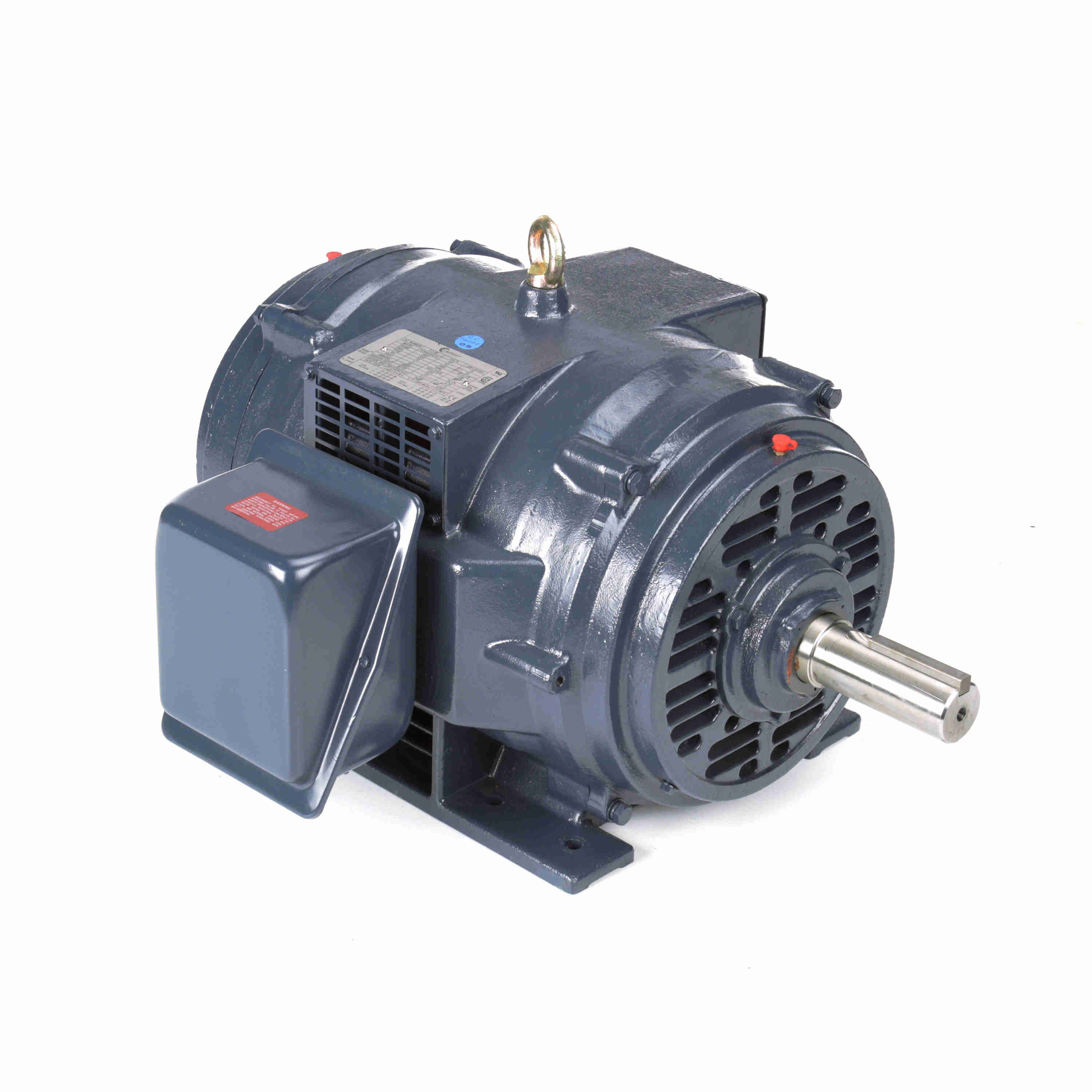

Century TO139 General Purpose Motor 20 HP

Product Description

The Century TO139 General Purpose Motor operates at twenty horsepower (HP) with an efficiency rating that meets or exceeds NEMA Premium standards. This motor is designed for continuous duty, allowing it to handle demanding applications across various industries. It features a three-phase design with a voltage rating of two hundred eight to two hundred thirty/ four hundred sixty volts, making it versatile for different power setups.

• Power: 20 HP
• Frame: 286T, reversible rotation
• Enclosure: Drip proof

Product Highlights

This motor supports a variety of applications due to its robust construction and reliable performance. The cast iron housing adds to its durability while the ball bearings ensure smooth operation.

Product Information

Standard Information

• Voltage: 208-230/460
• Phase: Three

Technical Specifications

• HP: 20
• KW: 14.9
• RPM: 1182
• Enclosure: Drip Proof
• Amperage: 60-54/27
• Shaft Diameter: 1.875 inches
• Weight: 506 lbs
• Length: 31.81 inches
• Width: 26.32 inches
• Height: 25.94 inches
