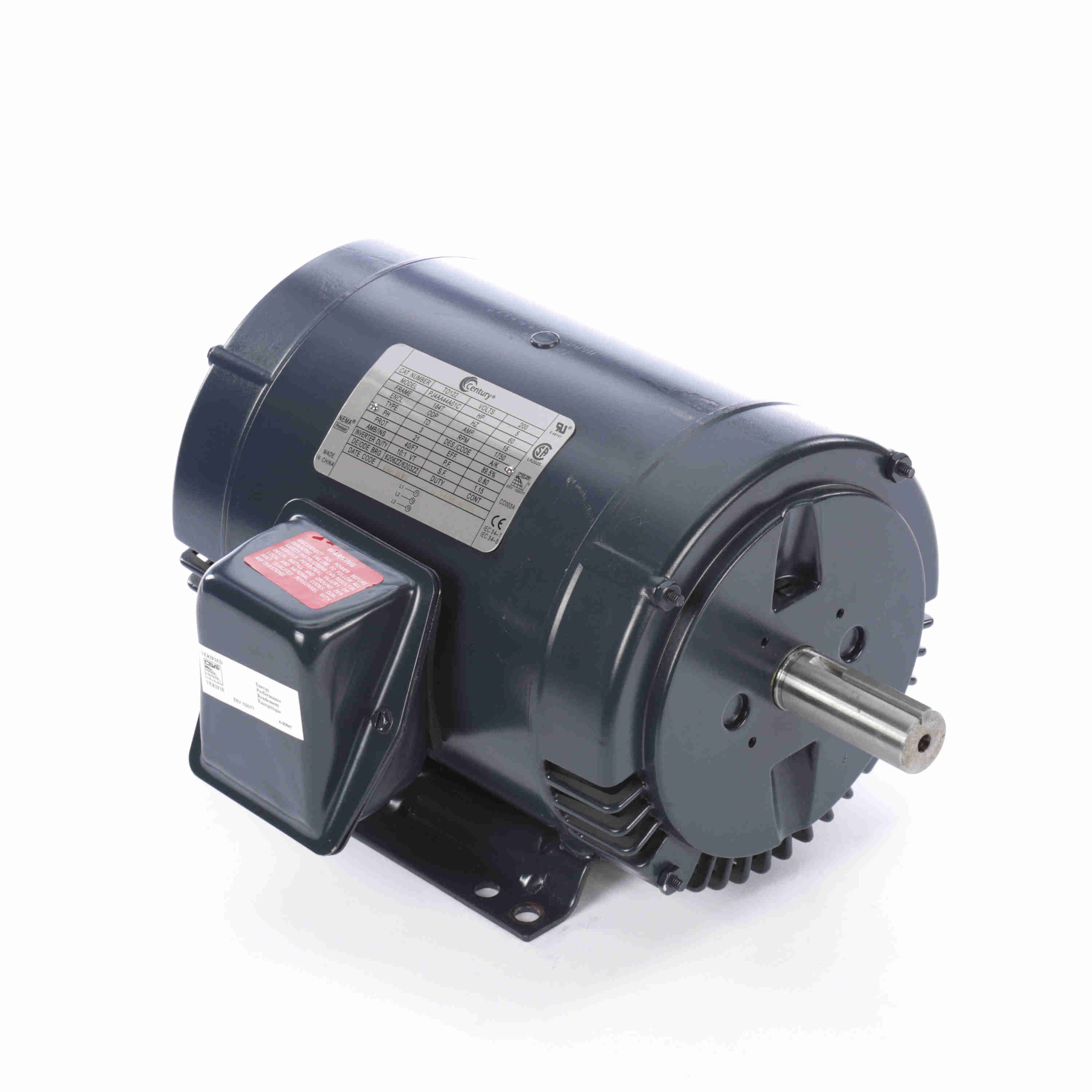

Century TO122 General Purpose Motor 5 HP 200 Voltage Replacement 184TTDBD6039

Century TO122 General Purpose Motor 5 HP 200 Voltage Replacement 184TTDBD6039

Brand: CENTURY MOTORS
SKU: TO122
Availability: Out Of Stock
$549.52
$549.52
LTL Delivery

This product weighs 90 lbs and may require the use of lift gate. If you require a lift gate you will have the option to add one FREE of charge at checkout.

HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Century TO122 General Purpose Motor is a reliable solution for various industrial applications. This motor operates at five horsepower and has a voltage rating of 200 volts. It is designed for continuous duty, ensuring dependability in operation.

  • Electrical Type: Polyphase
  • Speed: 1755 RPM
  • Enclosure: Open Drip Proof

Product Highlights

This motor meets NEMA Premium® efficiency standards and is compliant with EISA2036 regulations. It supports inverter duty with variable torque capabilities and has a service factor of 1.15 on sine wave power.

Product Information

Standard Information

  • Frame Size: 184T
  • Material: Rolled Steel

Technical Specifications

  • HP: 5
  • KW: 3.7
  • Phase: Three
  • Rotation: Reversible
  • Amperage: 14.7
  • Shaft Diameter: 1.125 inches
  • Shaft Extension: 2.75 inches
  • Overall Dimensions: 16.1 x 12.71 x 14.58 inches
