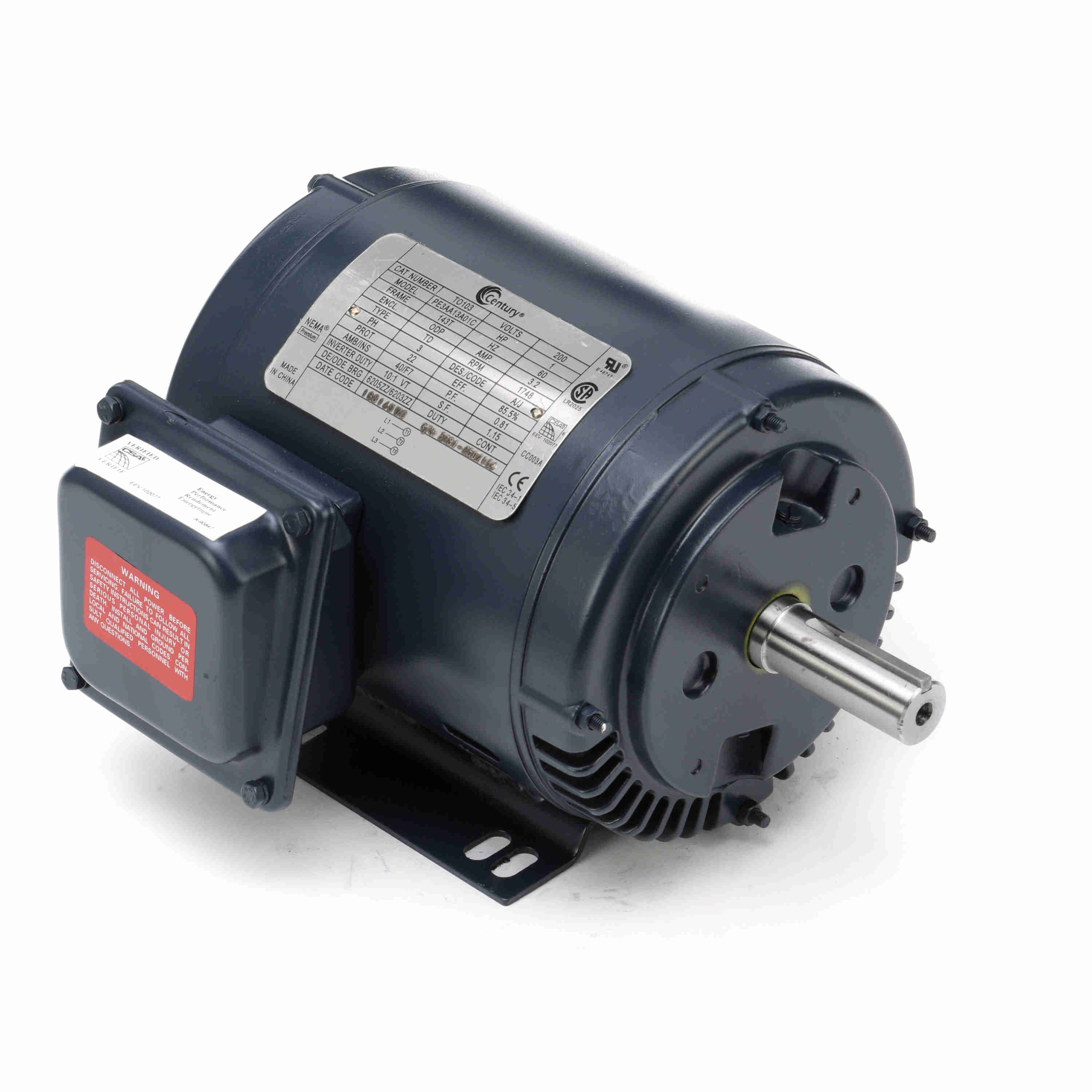

Century TO103 General Purpose Motor 1 HP 143T

Product Description

The Century TO103 is a general purpose motor with an electrical type of polyphase. This motor operates at one horsepower and converts to zero point seven five kilowatts at a speed of one thousand seven hundred forty-eight RPM. It features an open drip proof enclosure with a frame size of 143T and is suitable for three-phase applications. The motor can be used in applications requiring a reversible rotation.

• Durable rolled steel construction
• Ball bearings for smooth operation
• Designed to meet NEMA Premium efficiency standards

Product Highlights

Ideal for various industrial applications, the Century TO103 motor is designed for long-lasting performance and reliability.

Product Information

Standard Information

• Brand: Century
• MPN: TO103

Technical Specifications

• Horsepower: 1
• Voltage: 200
• Amperage: 3.2
• Frame Size: 143T
• Dimensions: 12.97 inches (Length) x 10.83 inches (Width) x 9.06 inches (Height)
• Weight: 36 lbs
• Shaft Diameter: 0.875 inches
• Shaft Extension: 2.25 inches
