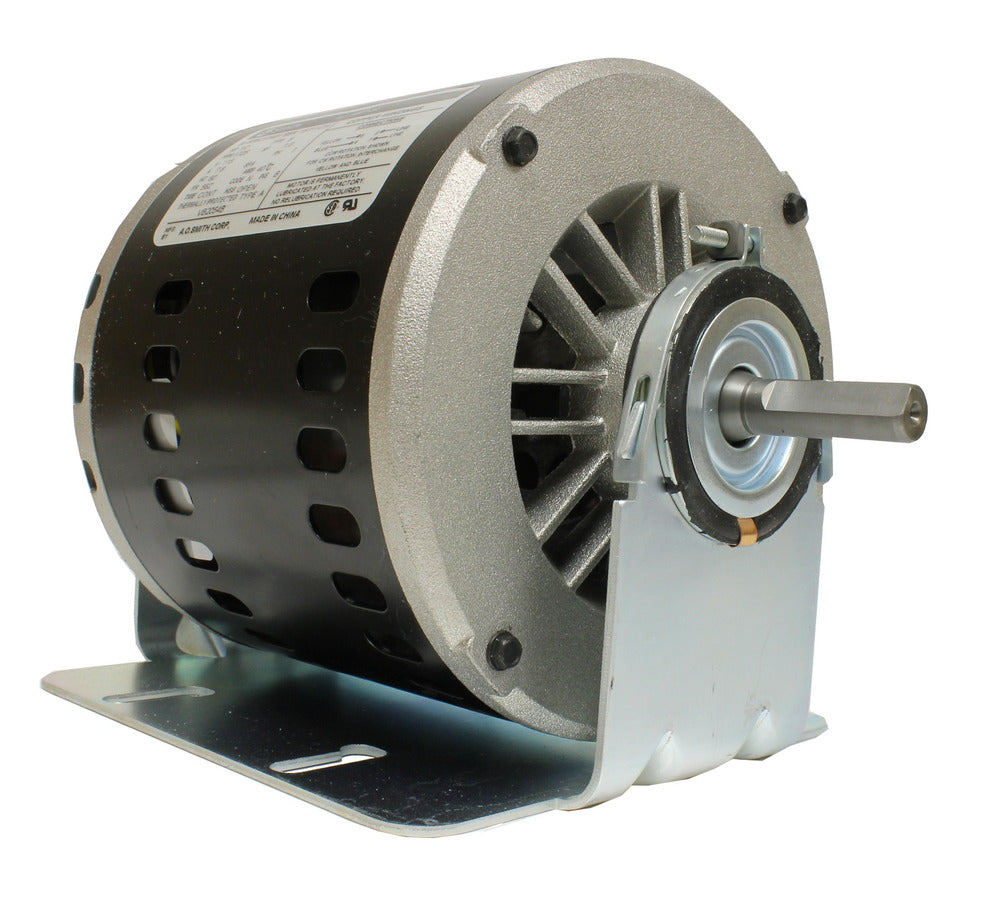

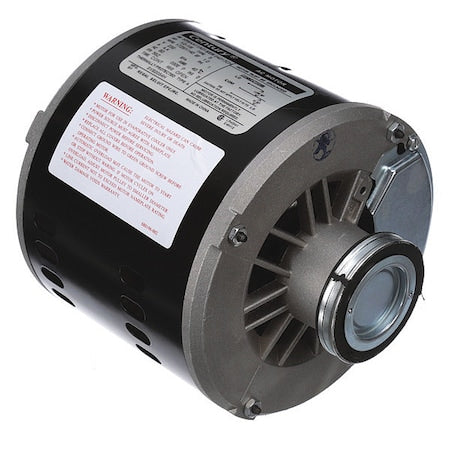

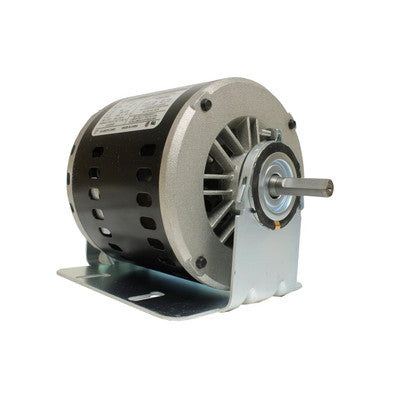

Century SVB2054HV1 2-Speed Evaporative Cooler Motor 1/2~1/6 HP (56Z Frame)

Product Description

The Century SVB2054HV1 is a 2-speed, split-phase evaporative cooler motor designed for belt-driven evaporative cooler applications, providing 1725 and 1140 RPM at 230 V and 60 Hz. It delivers 1/2~1/6 HP with a 1.0 service factor, 4.4 A full load, Class B insulation, automatic overload protection and an open drip proof NEMA 56Z enclosure. The motor mounts on a resilient base and uses ball bearings for continuous-duty operation.

• Two speeds: 1725 and 1140 RPM at 230 V, 60 Hz; rated 1/2~1/6 HP
• Split-phase design with 1.0 service factor, Class B insulation and automatic overload protection
• NEMA 56Z open drip proof frame, resilient base/ring mounting, ball bearings, CCWLE rotation

Product Highlights

2-speed 230 V split-phase motor for belt-driven evaporative coolers; 56Z frame, ODP enclosure, 1.0 service factor, 4.4 A full load

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: SVB2054HV1
• Country of Origin: China

Technical Specifications

• Brand: Century
• MPN: SVB2054HV1
• Model: SVB2054HV1
• Product Type: Evaporative cooler motor
• Motor Design: Split-phase
• Input Voltage: 230 V
• Frequency: 60 Hz
• RPM: 1725/1140
• Speeds: 2
• Phase: Single-phase
• Horsepower: 1/2~1/6 HP
• Poles: 4/6
• Full Load Amps: 4.4 A
• Service Factor: 1.0
• Insulation Class: B
• Enclosure Type: Open drip proof (ODP)
• Mounting Type: Resilient base / ring
• Frame: 56Z
• Bearings: Ball
• Rotation: CCWLE
• Overload Protection: Automatic
• Duty: Continuous
• Max Ambient Temperature: 104°F (40°C)
• Ring-to-Ring Dimension: 7.5 in
• Shaft Diameter: 1/2 in
• Shaft Length: 1 1/2 in
• Application: Belt-driven evaporative coolers
• Certifications: UL, CSA
• Country of Origin: China
• Nameplate RPM Range: 1700-1800
• Enclosure Rating Short: ODP
