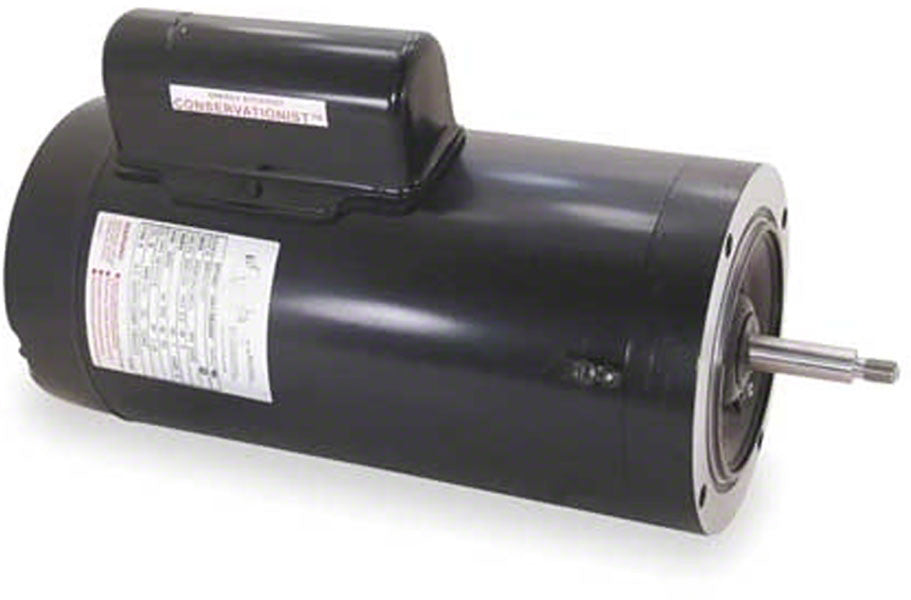

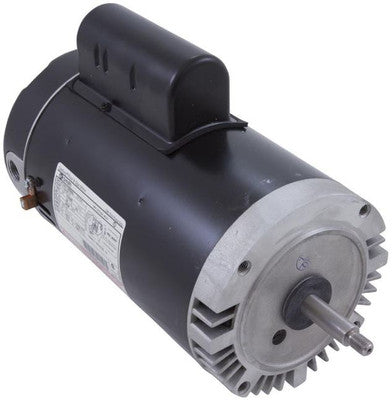

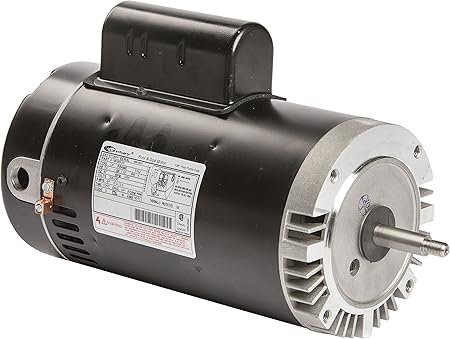

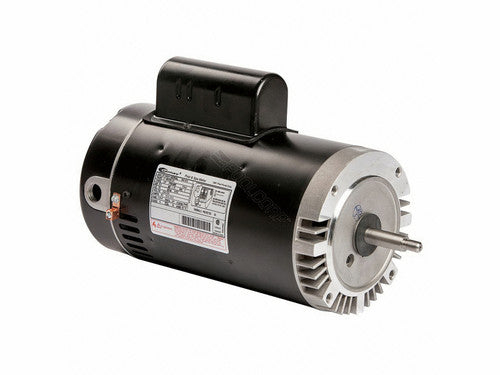

Century ST1302V1 Pool Pump Motor 3.0 HP

Product Description

The Century ST1302V1 pool pump motor is a reliable choice for pool and spa operations. With a power rating of 3.0 HP, this motor operates at 208-230V and has a speed of 3450 RPM. Built with a Y56J frame and a drip-proof enclosure, it offers durability for outdoor applications. The motor is also thermally protected to ensure safety during use.

• Sealed ball bearings enhance smooth operation.
• Capacitor start-capacitor run design ensures efficient performance.
• 303 stainless steel shaft provides resistance against corrosion.

Product Highlights

This motor is ideal for professionals working with pool and spa systems. Its design, featuring a horizontal mounting type and counterclockwise rotation, makes it suitable for various installations.

Product Information

Standard Information

• Phase: 1
• Output HP: 3.0 HP

Technical Specifications

• Voltage: 208-230 V
• Speed: 3450 RPM
• Service Factor: 1.15
• Frame: Y56J
• Enclosure: ODP
• Thermal Protection: Thermally Protected
• Ambient Temperature: 50 °C
• Frequency: 60 Hz
• Current: 14.5-13.8 A
• Duty: Continuous
• Insulation Class: B
• UL Certified: Yes
• CSA Certified: Yes
• Frame Material: Rolled Steel
• Shaft Type: Threaded
• Overall Length: 14.86 inches
• Frame Length: 9.25 inches
• Shaft Diameter: 0.625 inches
• Bearing Type: Sealed Ball
• Sub Brand: Century®
• Model: 196385
