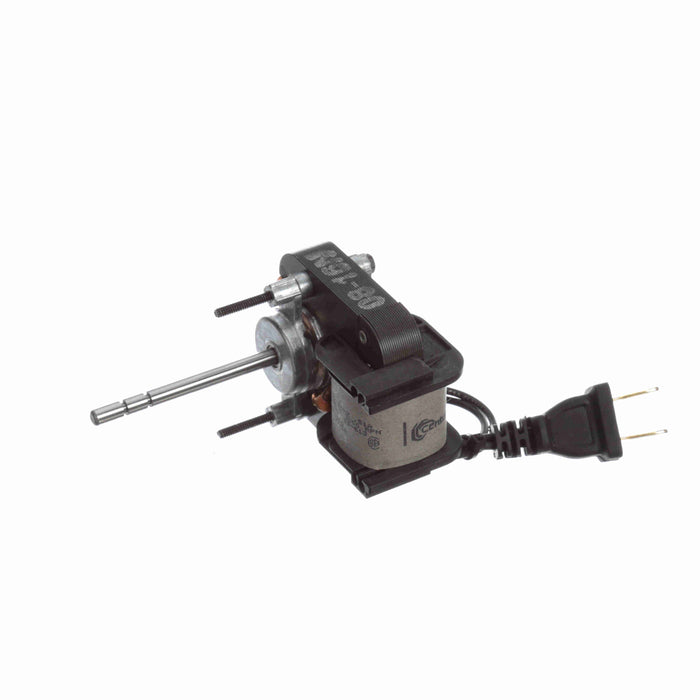

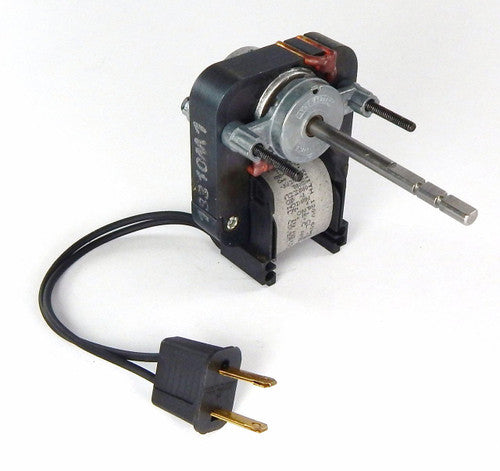

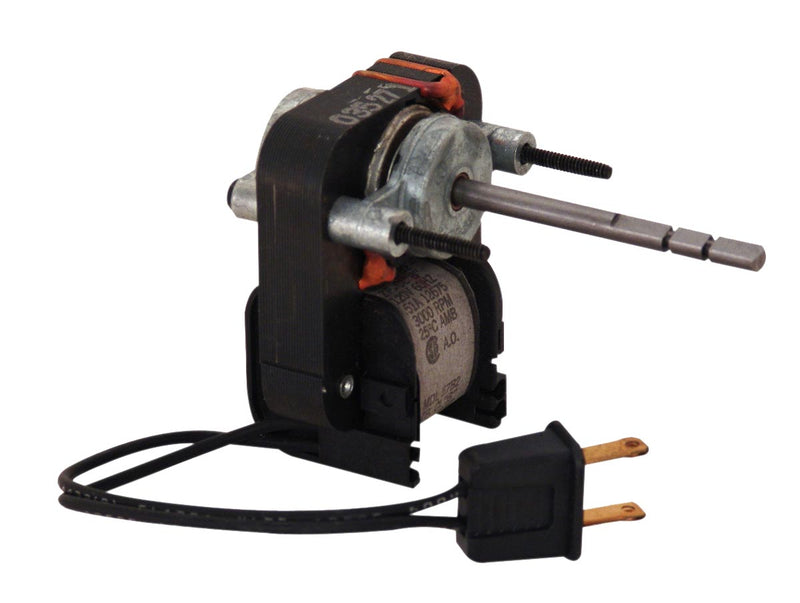

Century SS-613 1/2 inches Stack C-Frame / Skeleton Motor 3000 RPM 120 Volts OAO

Product Description

The Century SS-613 1/2" Stack C-Frame / Skeleton Motor operates at 3000 RPM with a 120 Volts. This motor is designed as a direct OEM replacement. It features a shaded pole and open air over enclosure. The SS-613 is suitable for various applications requiring continuous duty and reliable performance.

• OEM Direct Replacement Motor
• C-Frame design
• Open Air Over enclosure

Product Highlights

The Century SS-613 is a 120V, 3000 RPM motor with a C-Frame design, ideal for direct replacement applications.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: SS-613
• Country of Origin: Mexico

Technical Specifications

• Phase: 1
• Voltage: 120 V
• Speed: 3000 rpm
• Service Factor: 1
• Frame: C-FRAME
• Enclosure: Open Air Over
• Thermal Protection: No Protection
• Ambient Temperature: 25 °C
• Frequency: 60 Hz
• Current: 0.51 A
• Duty: Continuous Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Number of Speeds: 1
• Electrical Type: Shaded Pole
• Starting Method: Induction Run
• Poles: 2
• Rotation: Counterclockwise Shaft End
• Mounting: Bracket
• Drive End Bearing: Sleeve
• Opp Drive End Bearing: Sleeve
• Shaft Type: Flat & Groove
• Overall Length: 4.22 in
• Shaft Diameter: 0.217 in
• Shaft Extension: 2.51 in
• Shaft Length: 2.51 in
• Hz: 60
• Bearings: Sleeve
