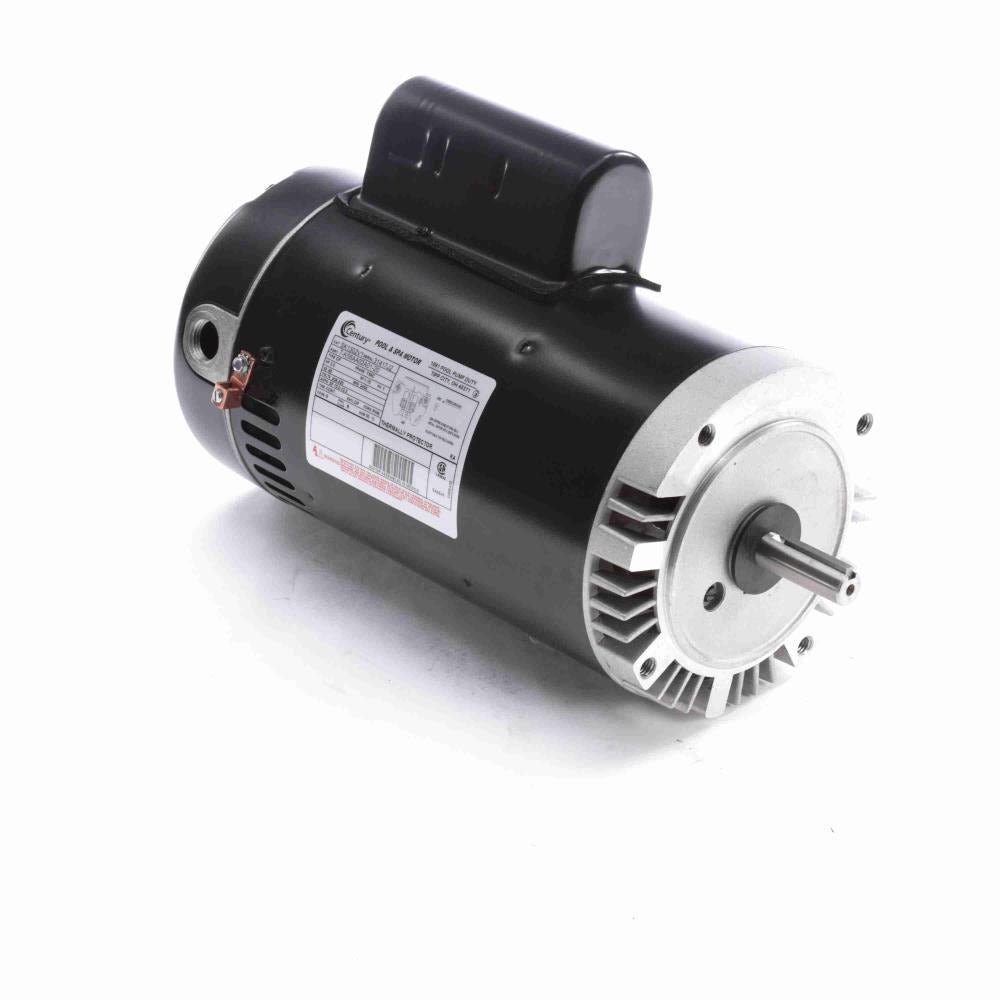

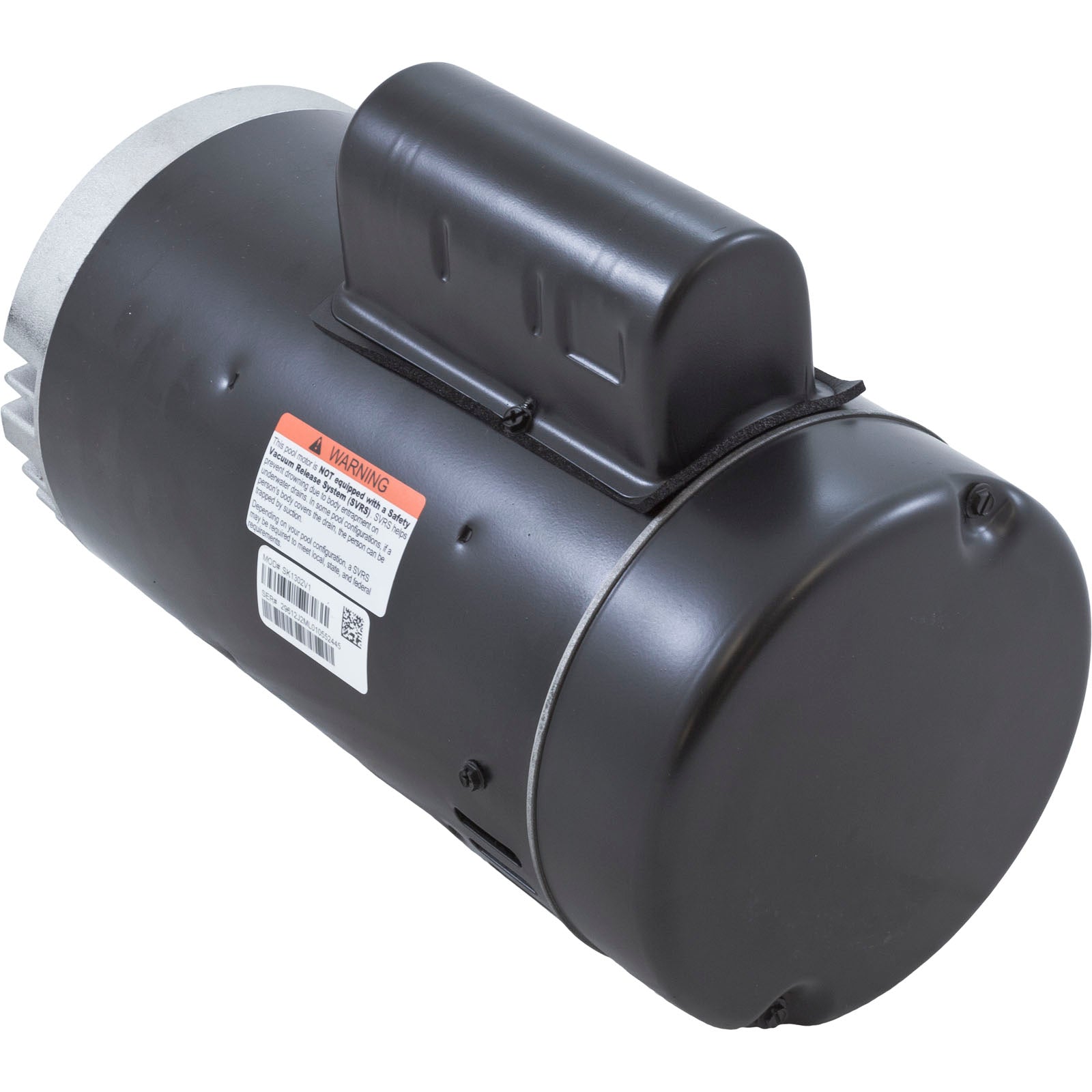

Century SK1302V1 Jet Pump Motor 3 HP 208-230V 56C Frame C-Face Key

Product Description

The Century SK1302V1 Jet Pump Motor is a reliable solution for your pumping needs. This 3.0 horsepower motor operates at 208-230 volts and fits a 56C frame with a C-face mount. It is designed for efficient energy use and has a rolled steel structure. Ideal for pool and spa pumps, this motor provides continuous duty and is Ball Bearing supported ensuring long-lasting operation.

• Electrical Type: Cap Start
• HP: 3
• Voltage: 208-230

Product Highlights

Century SK1302V1 is a capacitor start/run motor ideal for pool and spa pump applications, featuring a 56C frame and C-face mounting style. Made from durable rolled steel, it ensures longevity and efficient performance.

Product Information

Standard Information

• Brand: Century
• MPN: SK1302V1

Technical Specifications

• Electrical Type: Cap Start
• HP: 3
• Frame: 56C
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 208-230
• Rotation: CCWSE
• Material: Rolled Steel

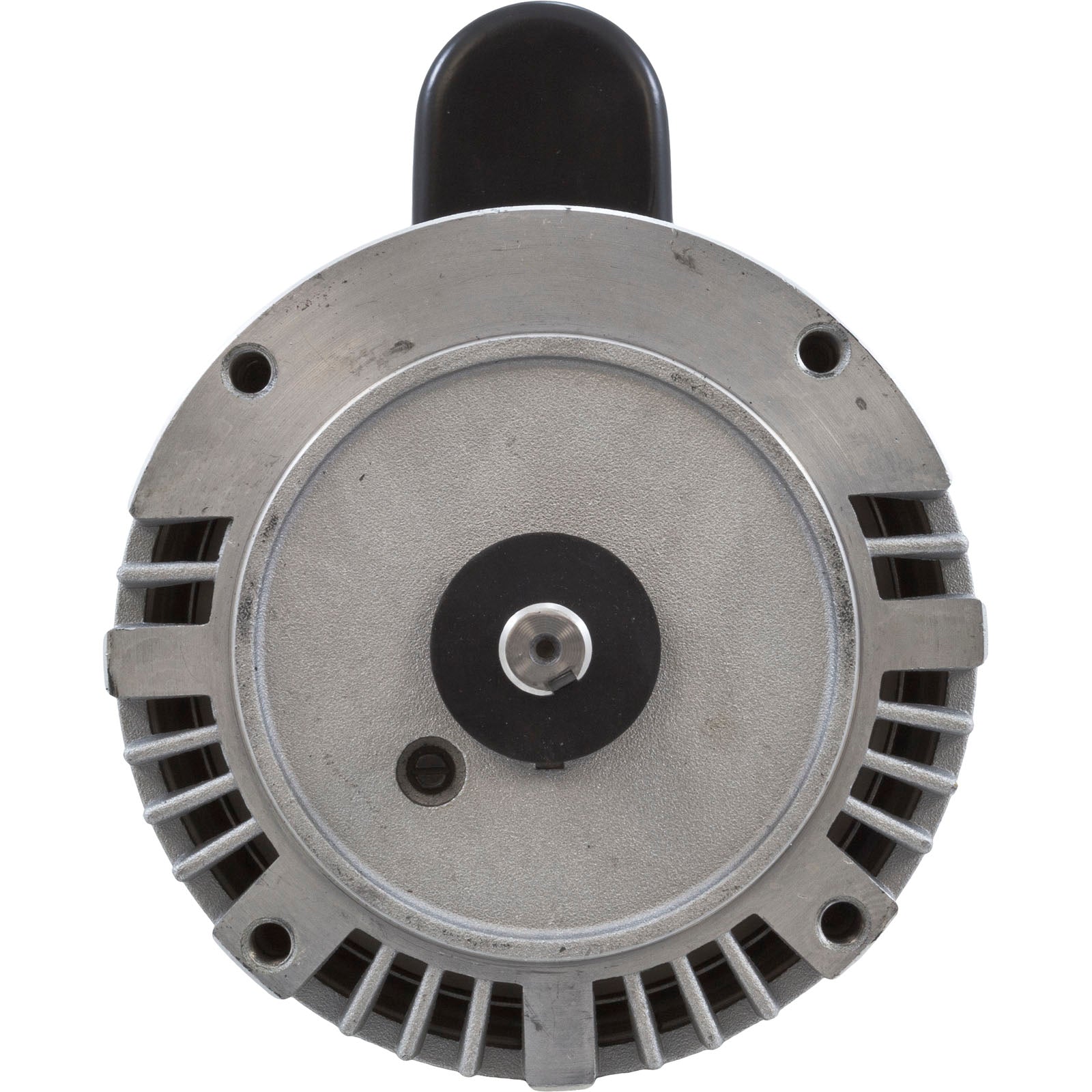

• Mounting: C-Face
• Amperage: 15.0-13.3
• Shaft Type: Single
• Ins. Class: B
• Number of Speeds: 1
• Motor Bearings: Ball
• Nameplate RPM: 3450
• Shaft Dia.: 5/8 inches
• Overall Length: 14 3/8 inches
• Max. Ambient Temp: 50 degrees C
• Motor Flange Material: Aluminum
• Motor Mounting Position: Horizontal
• Motor Thermal Protection: Auto
• Country of Origin: Mexico
