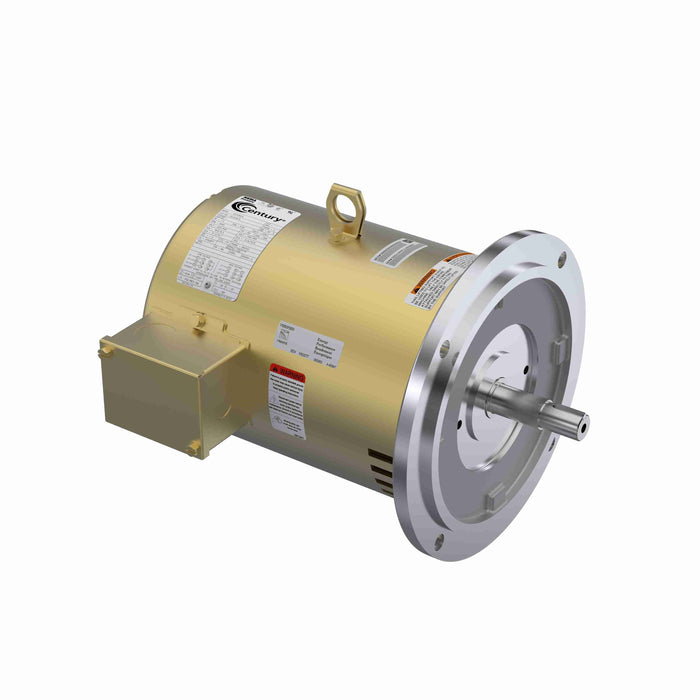

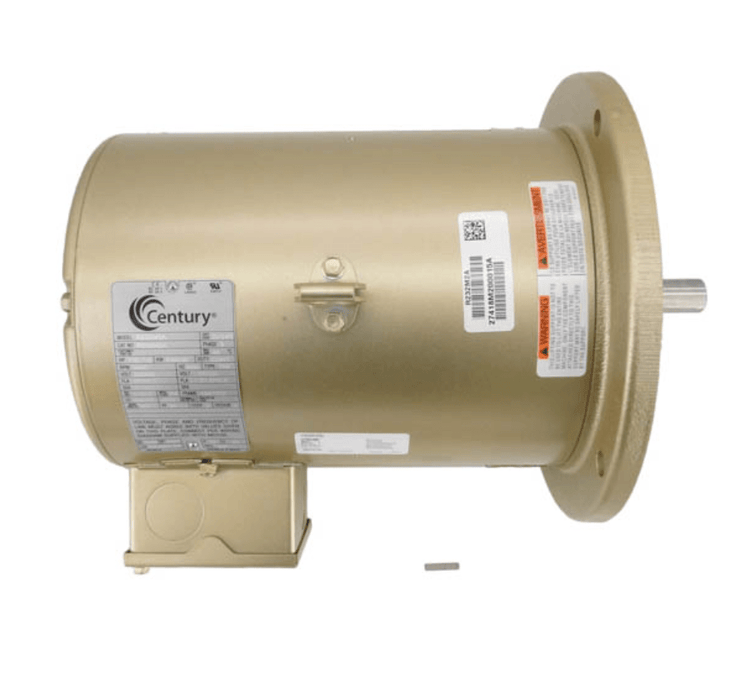

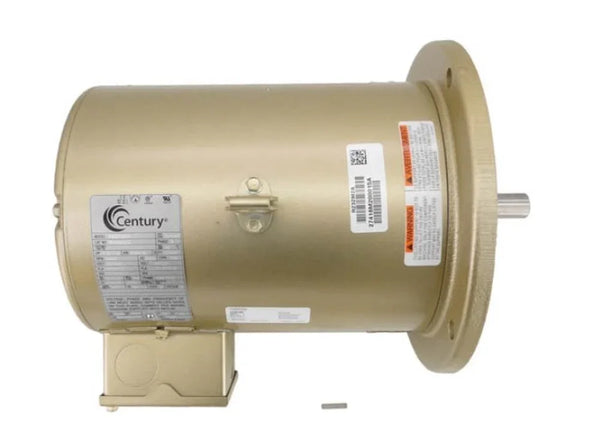

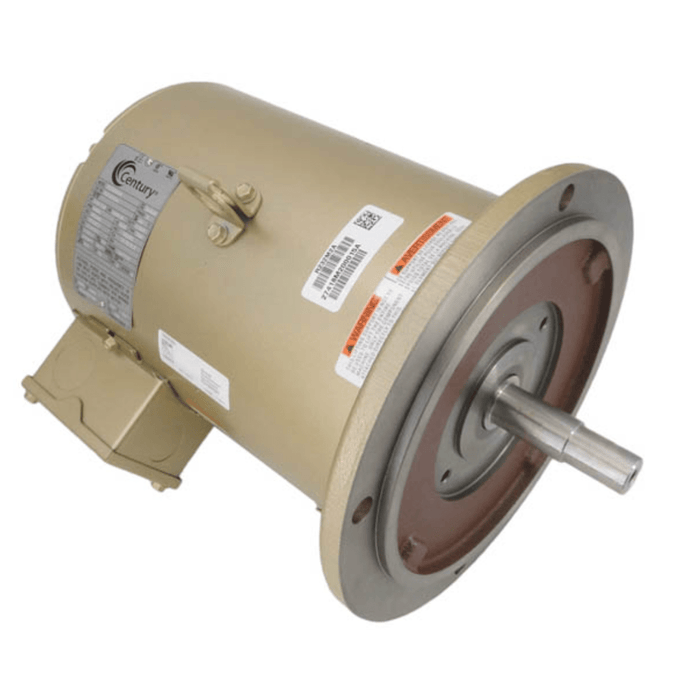

Century R232M2B Pool Pump Motor 7 1/2 HP 3 Ph 50 Hz 220/440 V

Product Description

The Century R232M2B pool pump motor has a power rating of 7 1/2 HP. It is ideal for use in pool pump applications, particularly for commercial and large residential pools. This 3-phase motor operates at 50 Hz and supports voltages of 220/440 V. The motor fits a 184TDZ frame and offers a drip-proof design for enhanced durability. With a keyed, 304 stainless steel shaft extension, it includes an external shaft slinger for improved water resistance.

• Optimized for commercial and large residential pool use
• Features open drip-proof design for better performance
• Reversible rotation offers flexibility in installation

Product Highlights

This motor provides premium efficiency for pool applications, designed for continuous operation and easy integration into existing systems.

Product Information

Standard Information

• Brand: Century Motors
• MPN: R232M2B

Technical Specifications

• Phase: 3
• Output HP: 7.5 HP
• Output KW: 5.6 kW
• Voltage: 220/440 V
• Speed: 3490 rpm
• Service Factor: 1.15
• Frame: 184TDZ
• Enclosure: Drip Proof
• Efficiency: 88.5 %
• Ambient Temperature: 40 °C
• Frequency: 50 Hz
• Current: 18.6/9.3 A
• Duty: Continuous
• Insulation Class: F
• UL: Recognized
• CSA: Y
