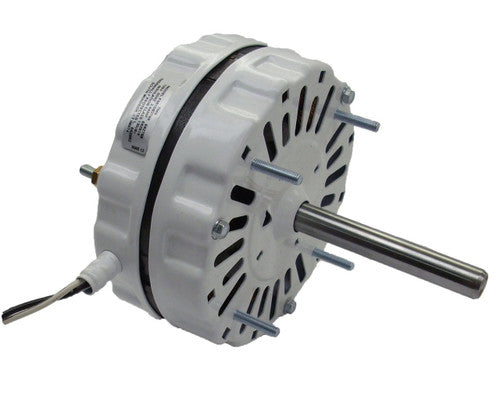

CENTURY PD2957 Power Vent Attic Fan Motor 1/10 hp

Product Description

The CENTURY PD2957 is a power vent attic fan motor designed to operate at 1/10 horsepower and a speed of 1050 RPM. This motor is rated for 115 Volts and 60 Hz, providing reliable performance for ventilation needs.

• Power Vent Attic Fan Motor
• Suitable for shaded pole applications
• Includes mounting bolts on the front and back

Product Highlights

The shaded pole design allows for efficient airflow and easy installation with mounting versatility.

Product Information

Standard Information

• Horsepower: 1/10 hp
• RPM: 1050

Technical Specifications

• Amps: 3.4 amps
• Voltage: 115 Volts
• Frequency: 60 Hz
• Motor Diameter: 5 inches
• Shaft Diameter: 1/2 inch
• Shaft Length: 3 1/4 inches with flat on shaft
• Motor Thickness: 2 1/4 inches thick without shaft
• Rotation: CW rotation facing the shaft
• Motor Type: Shaded Pole Motor
