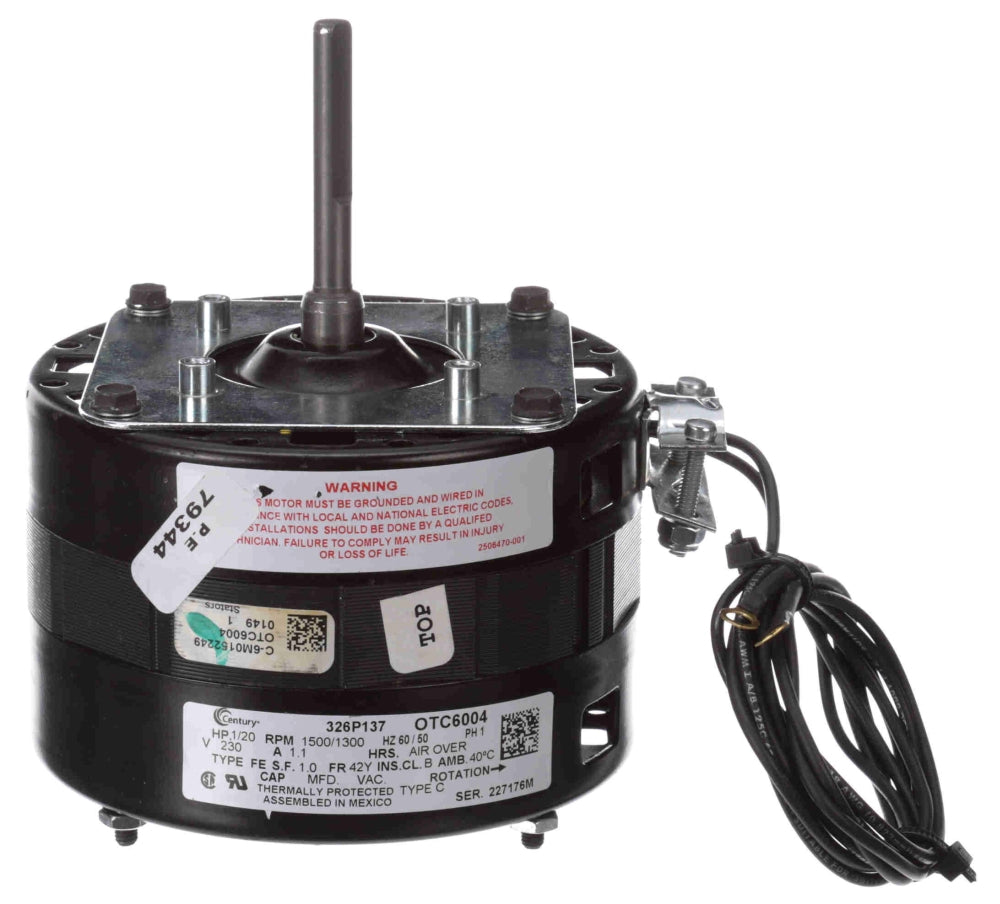

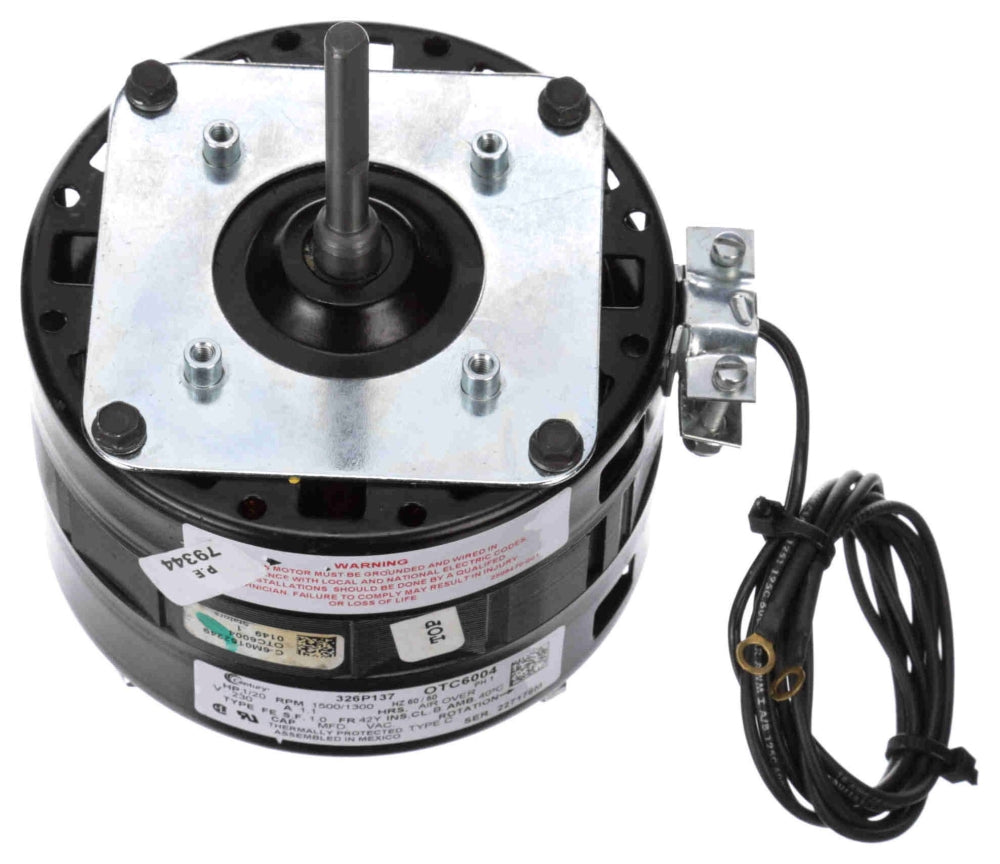

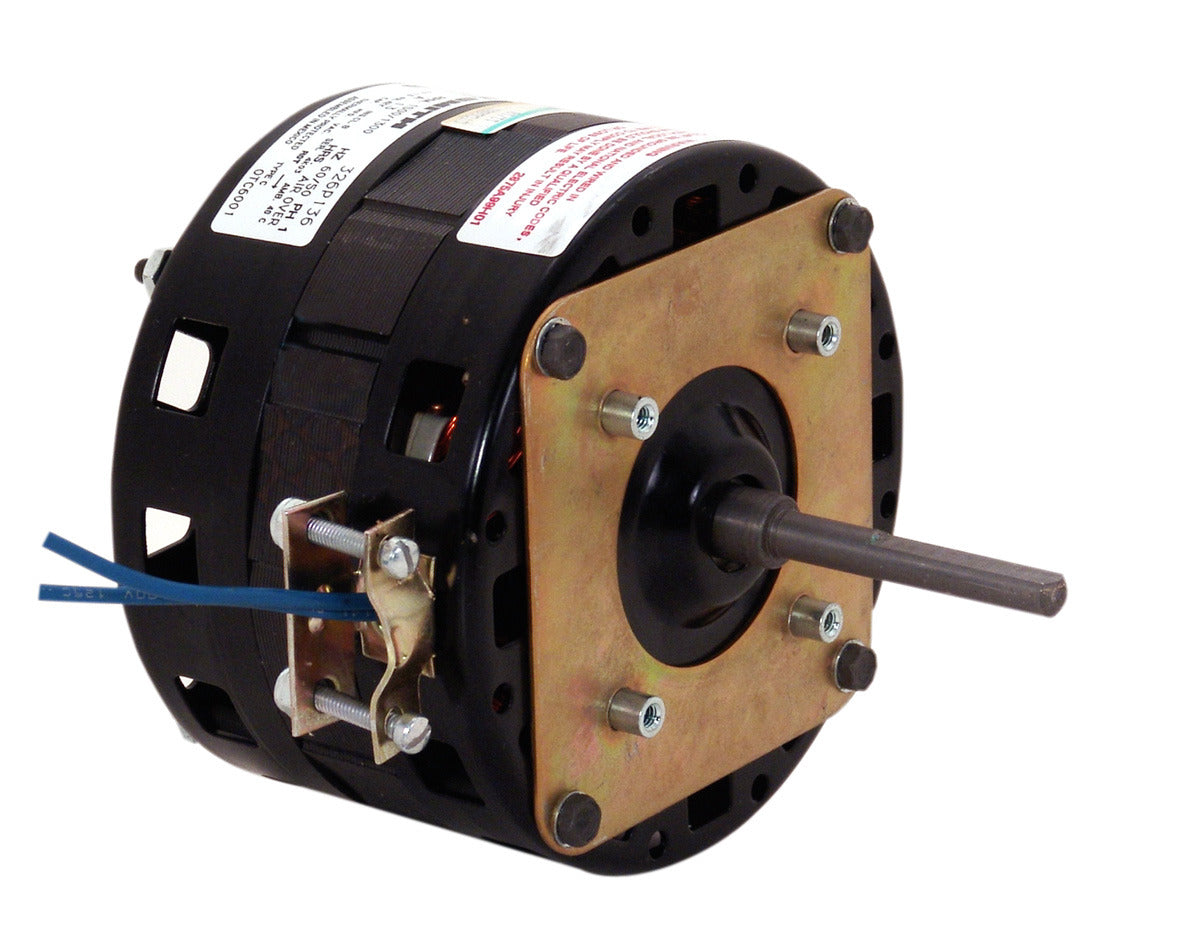

Regal Rexnord - Century Motors OTC6004 1/20 HP 230 VAC 50/60 Hz 1-Phase 1.1 A 4-Pole 1500 RPM

Product Description

The Regal Rexnord - Century Motors OTC6004 is a 1/20 horsepower HVAC motor designed for various industrial applications. It operates on 230 volts AC and is capable of handling both 50 and 60 hertz frequencies. This motor features a four-pole design with a speed of 1500 RPM, making it suitable for moderate to high-speed needs.

• Powerful 1/20 HP motor
• Durable rolled steel frame
• Designed for HVAC/R equipment

Product Highlights

This motor is ideal for use in refrigeration systems and fans, offering reliable performance. Its flat shaft design and shaded pole type make it easy to install in various setups. The unit includes automatic overload protection and is suitable for open air-over applications.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• Power Rating: 1/20 HP

Technical Specifications

• Voltage Rating: 230 VAC
• Frequency Rating: 50/60 Hertz
• Current Rating: 1.1 A
• Speed Rating: 1500 RPM
• Number of Poles: 4
• Frame Size: 42Y
• Insulation Class: B
• Weight: 7 lbs
• Shaft Type: Flat
• Orientation: Horizontal
• Rotation: Counter Clockwise Lead End
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Service Factor: 1
