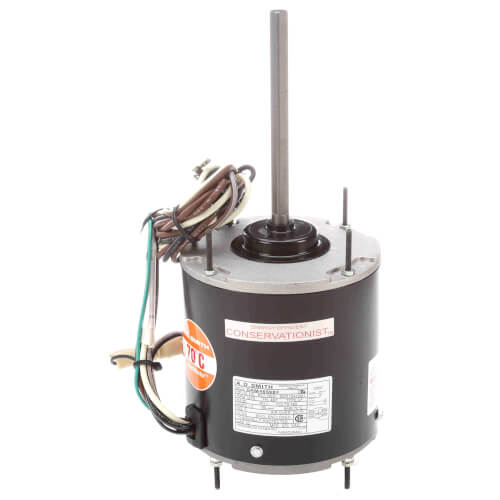

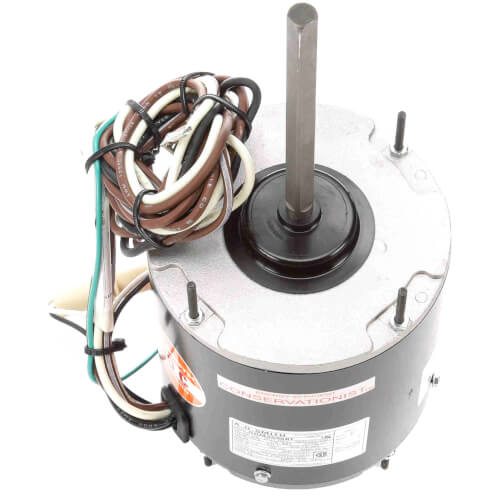

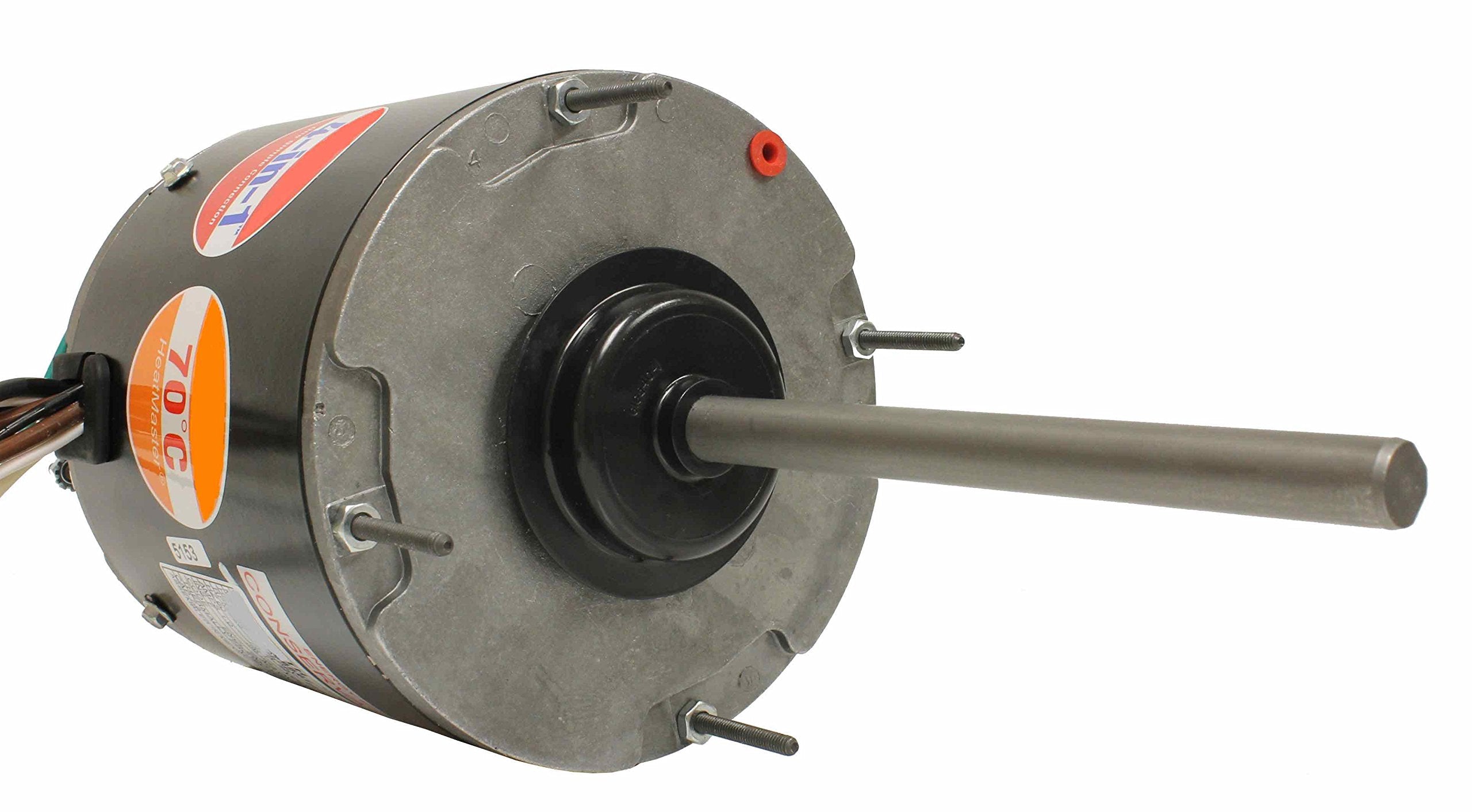

Century ORM4659BF HeatMaster Condenser Fan Motor 460V 1/2-1/5HP 1075RPM

Product Description

The Century ORM4659BF from Regal Rexnord - Century Motors exemplifies robust engineering with its multi-horsepower capabilities and 1075 revolutions per minute speed, designed for a variety of industrial and HVAC applications. This motor operates on 460 volts, delivering consistent performance with a compact 5-5/8 inch frame.

• Reversible motor direction for easy installation and versatility.
• Constructed with ball bearings for prolonged durability and smooth operation.
• Features a totally enclosed motor design, ensuring protection against environmental conditions.

Product Highlights

Optimized for continuous duty with Class F insulation, the Century ORM4659BF motor is equipped for a max ambient temperature of 70 degrees Celsius, highlighting its resilience in demanding environments. This motor also includes a 48Y frame and supports all-angle mounting, facilitating flexible installation options.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• MPN: ORM4659BF

Technical Specifications

• Power Supply: 460V
• Horsepower: 1/2 to 1/5 HP
• RPM: 1075
• Ambient Maximum Temperature: 70C
• Frame: 48Y
• Enclosure: Totally Enclosed
• Bearings: Ball
• Insulation: Class F
