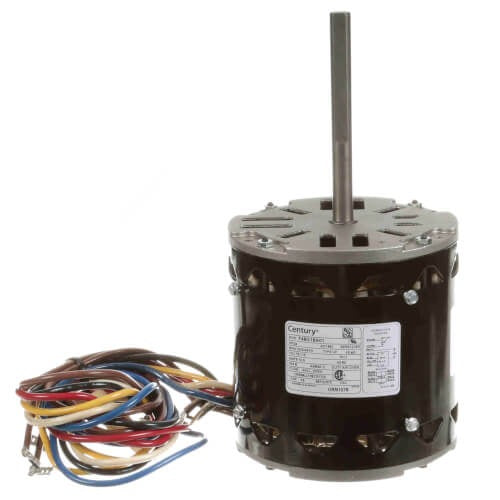

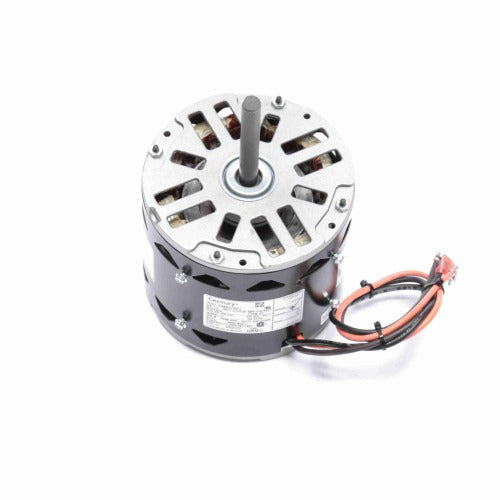

Century ORM1076 Replacement Motor 3/4 HP (48Y Frame) Replaces F48C47A94

Brand: CENTURY
SKU: ORM1076
Availability: In Stock

Ships same day if ordered by 12 pm
$350.42
$350.42
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

Century ORM1076 is a replacement electric motor (Permanent Split Capacitor, PSC) rated 3/4 HP and 1075 RPM at 115 V. The motor uses a 48Y open frame and is intended for fan and general-purpose replacement applications. It offers four-speed operation, automatic thermal protection, and draws approximately 10.5 A at full load. Shaft diameter is 0.5 in for direct-drive fan and blower installations.

  • Permanent split capacitor (PSC) motor; rated 3/4 HP, 1075 RPM at 115 V
  • 48Y open frame with four speeds and automatic thermal protection; full load current 10.5 A
  • 0.5 in shaft diameter, tapped-hole mounting, service factor 1.00

Product Highlights

PSC replacement motor, 3/4 HP, 1075 RPM, 115 V, 48Y open frame, four-speed, 0.5 in shaft

Product Information

Standard Information

  • Brand: CENTURY
  • Manufacturer Part Number: ORM1076
  • Country of Origin: Mexico
Technical Specifications
Brand
Century
Manufacturer
CENTURY
Manufacturer Part Number (MPN)
ORM1076
Motor Type
Permanent Split Capacitor (PSC)
Horsepower
3/4 HP (0.75 hp)
Rated Speed
1075 RPM
Input Voltage
115 V
Frequency
60 Hz
Phase
Single phase (1)
Frame
48Y
Enclosure
Open (Air Over)
Number of Speeds
4
Rotation
Clockwise (facing shaft)
Bearing Type
Sleeve
Full Load Current
10.5 A
Service Factor
1.00
Thermal Protection
Automatic
Insulation Class
B
Mounting Type
Tapped-hole mounting
Shaft Diameter
0.500 in
Shaft Length
3-1/4 in
Length (Less Shaft)
5-5/8 in
Dimensions
13 x 6.5 x 7 in
Capacitor Required
G1021693
Full Load Amps
10.5 FLA
Service/Application
Direct drive fan and blower replacement / general-purpose
Certifications
UL recognized; CSA
Country of Origin
Mexico
