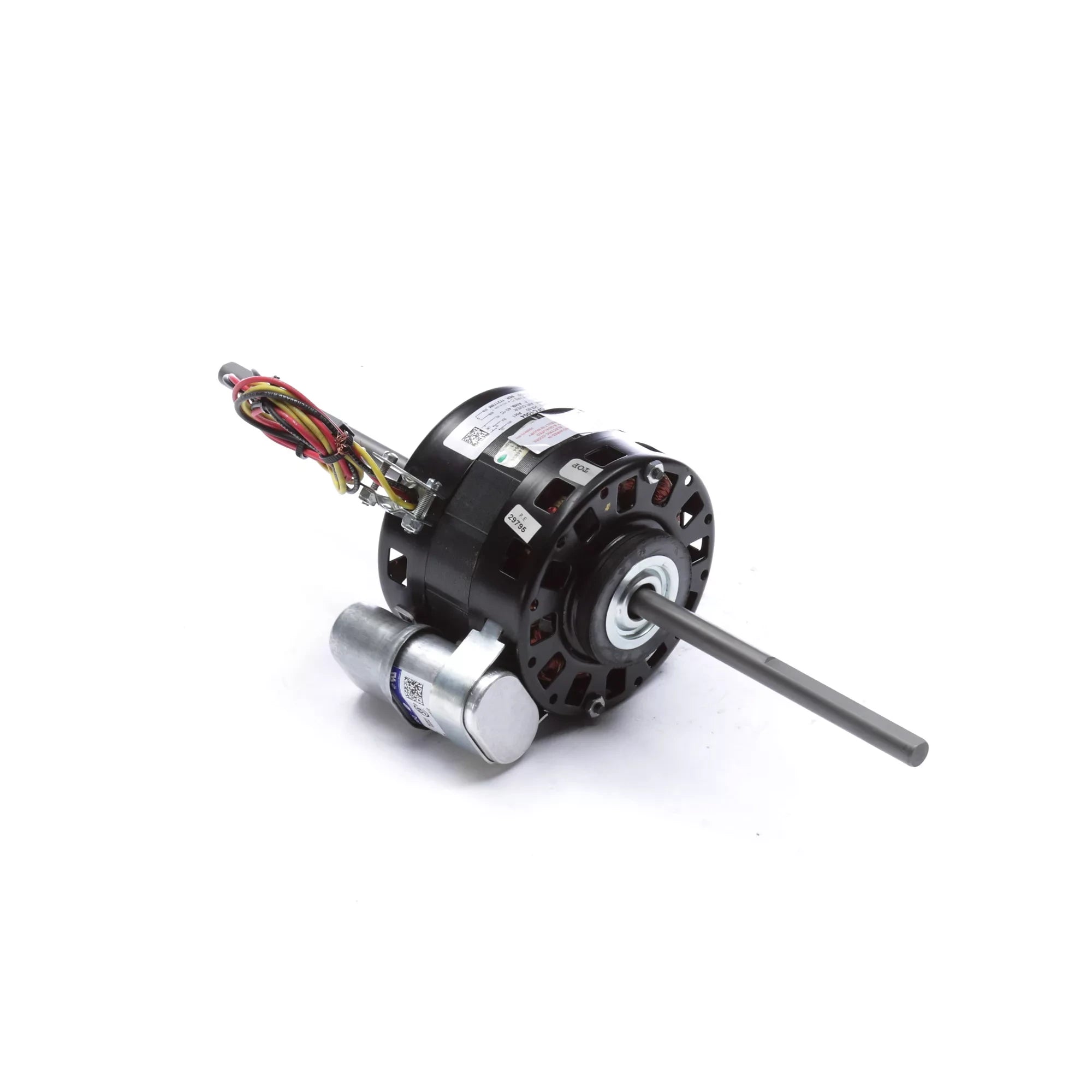

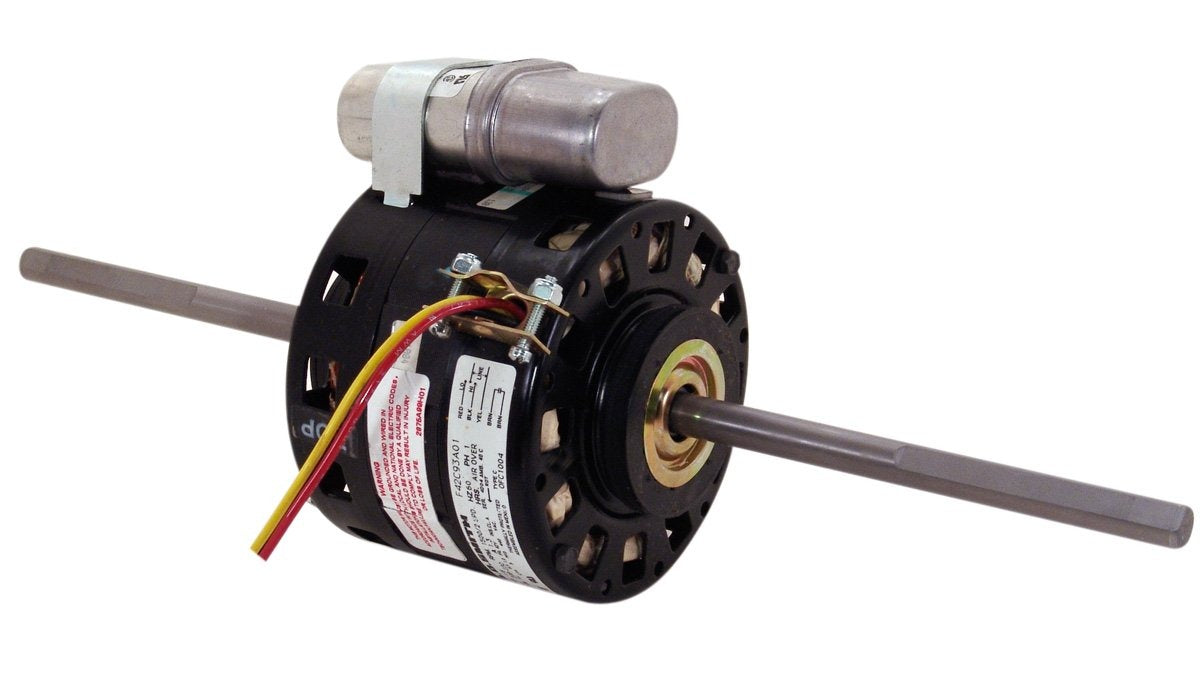

Century OFC1004 Double Shaft Blower Motor 1/8 HP (42Y) 326P400

Product Description

Century OFC1004 is a 1/8 HP double shaft blower motor configured as a single-phase PSC (permanent split capacitor) unit rated 208-230 VAC, 60 Hz and 1500 RPM. The motor features sleeve bearings, a resilient ring mount, open enclosure, automatic thermal protection and counterclockwise lead end rotation. It provides two-speed operation with a 1/2 in shaft and 33 in lead wires for HVAC and condenser fan applications.

• 1/8 HP PSC motor, 208-230 VAC, 60 Hz, 1500 RPM, two speeds, 1.3 A full load
• Double shaft with 0.5 in diameter, 6.7 in x 6.7 in shaft extensions; 33 in lead length; resilient ring mount
• Sleeve bearings, open enclosure, automatic thermal protection, NEMA 42Y frame, insulation class A

Product Highlights

Single-phase 1/8 HP blower motor, PSC type, 208-230 VAC, 1500 RPM, 2-speed, double shaft, 42Y frame

Product Information

Standard Information

• Brand: CENTURY
• Manufacturer Part Number: OFC1004
• Country of Origin: Mexico
